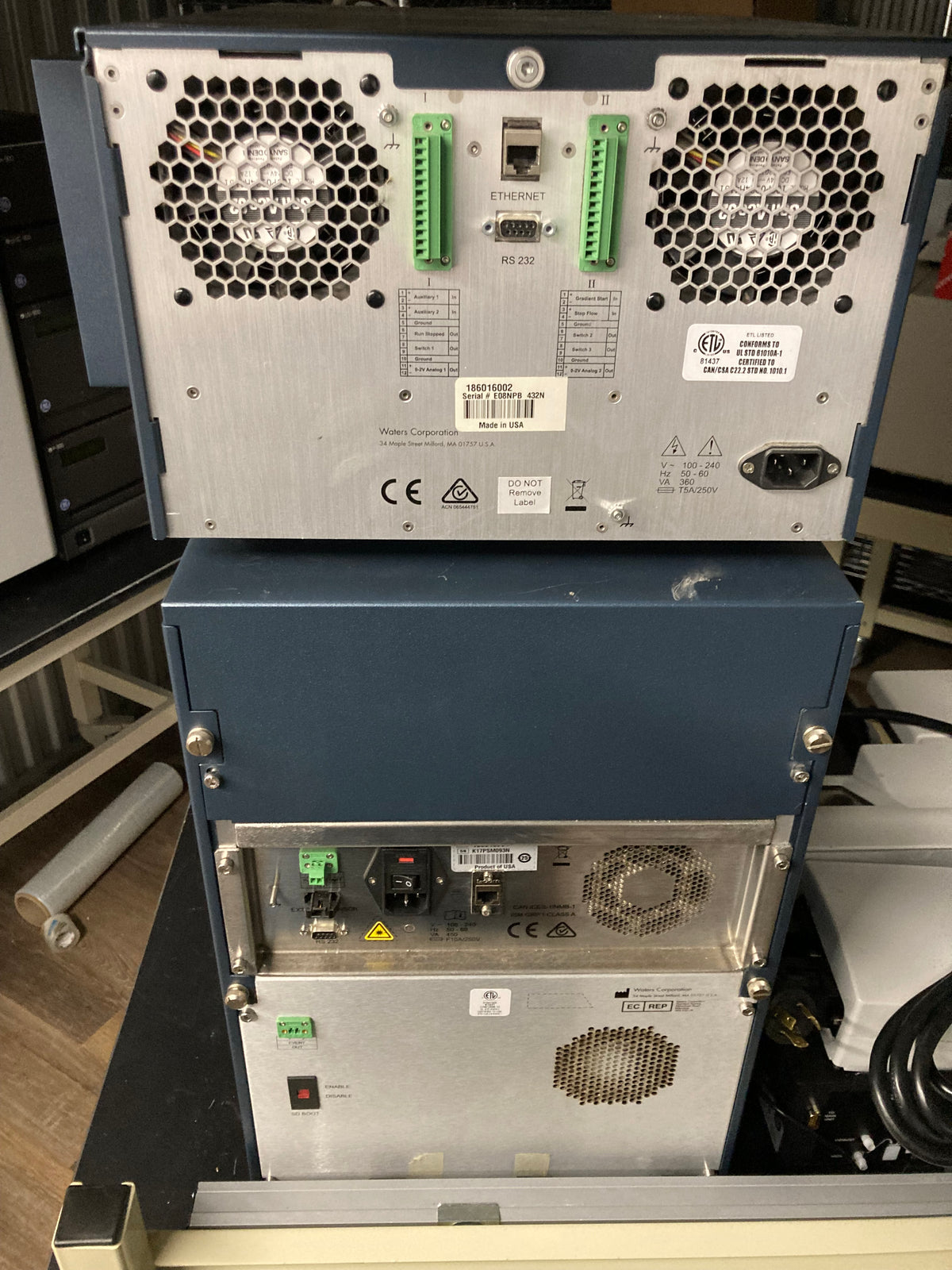

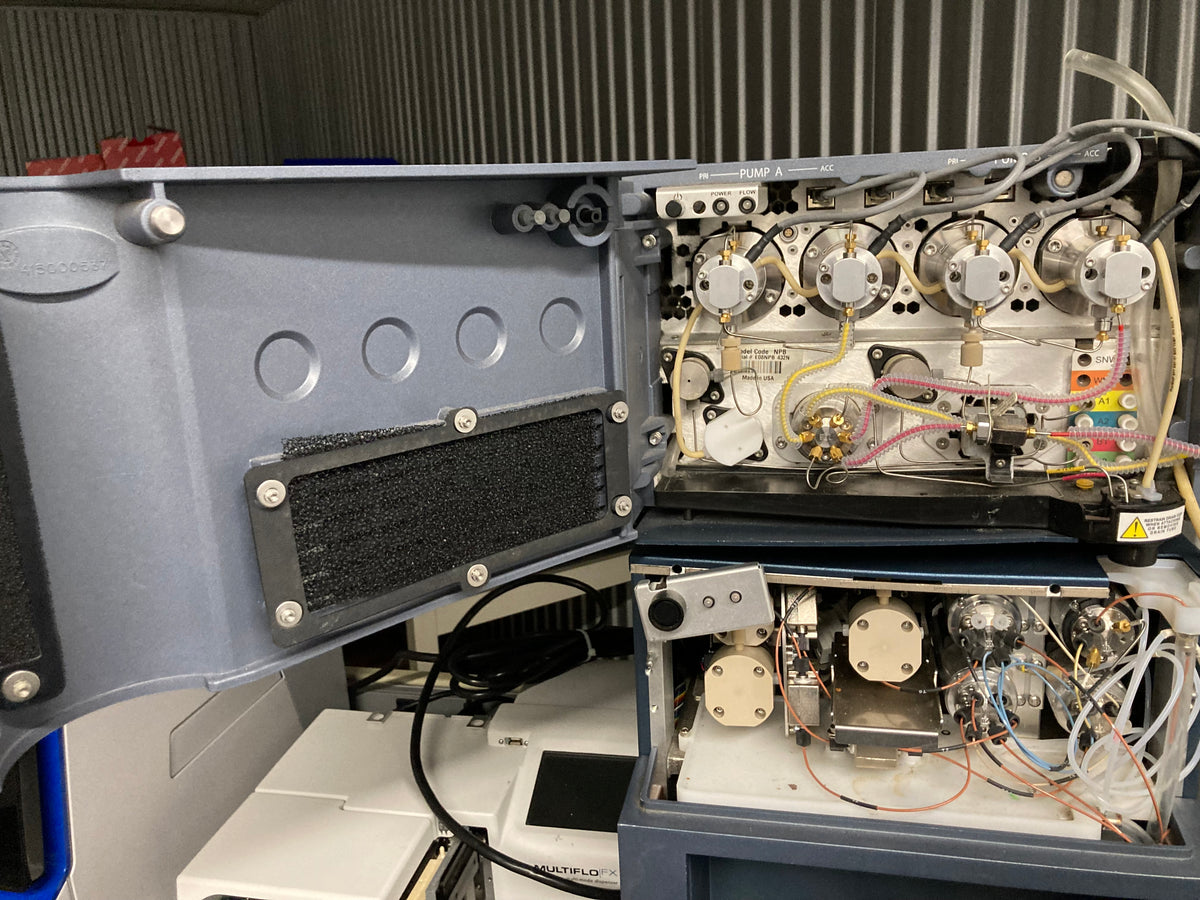

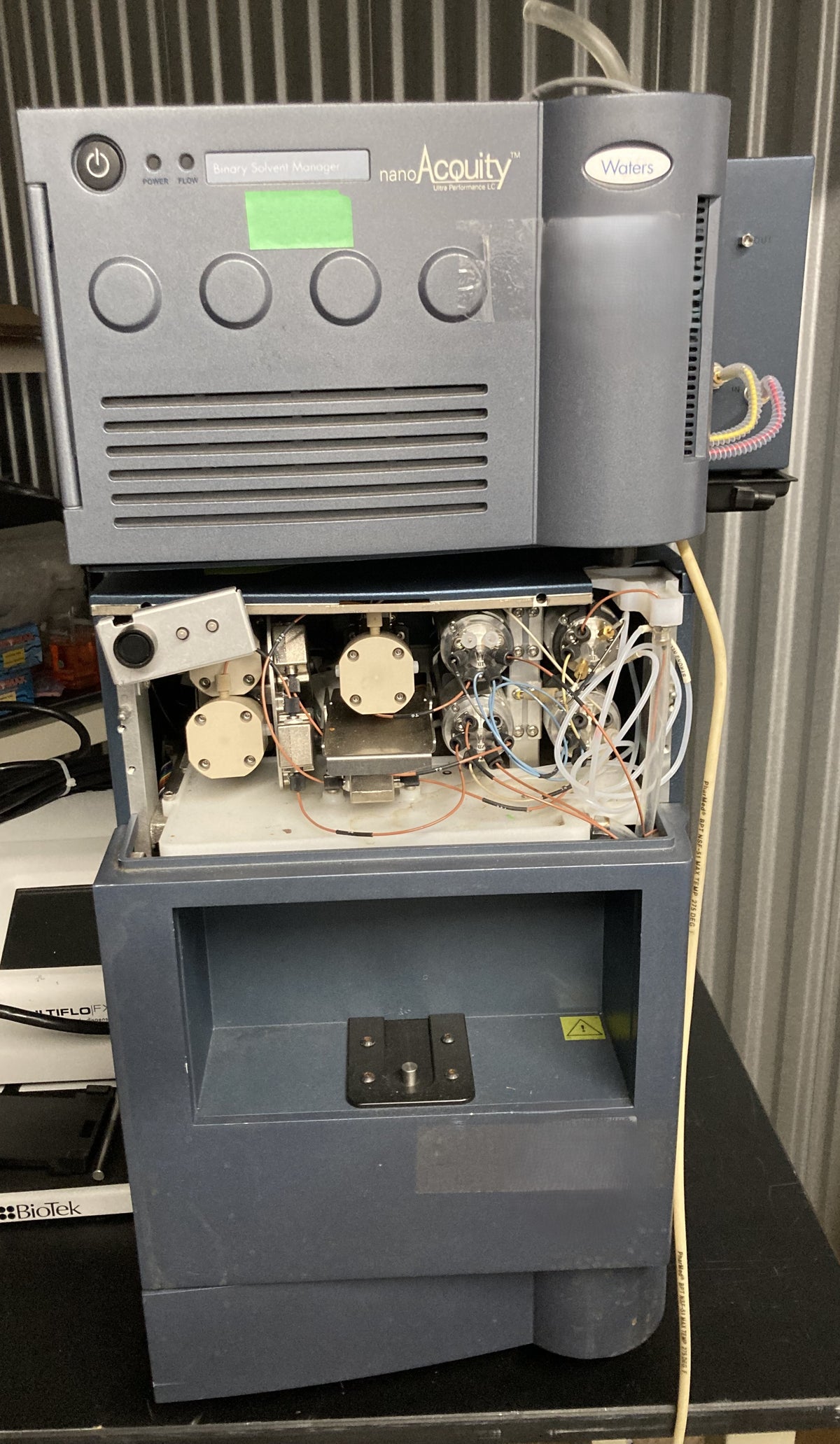

Waters ACQUITY UPLC Process Sample Manager (PSM) (REF 186015064) with Waters nanoACQUITY Binary Solvent Manager (BSM) 186016002

Waters ACQUITY UPLC Process Sample Manager (PSM) (REF 186015064) with Waters nanoACQUITY Binary Solvent Manager (BSM) 186016002

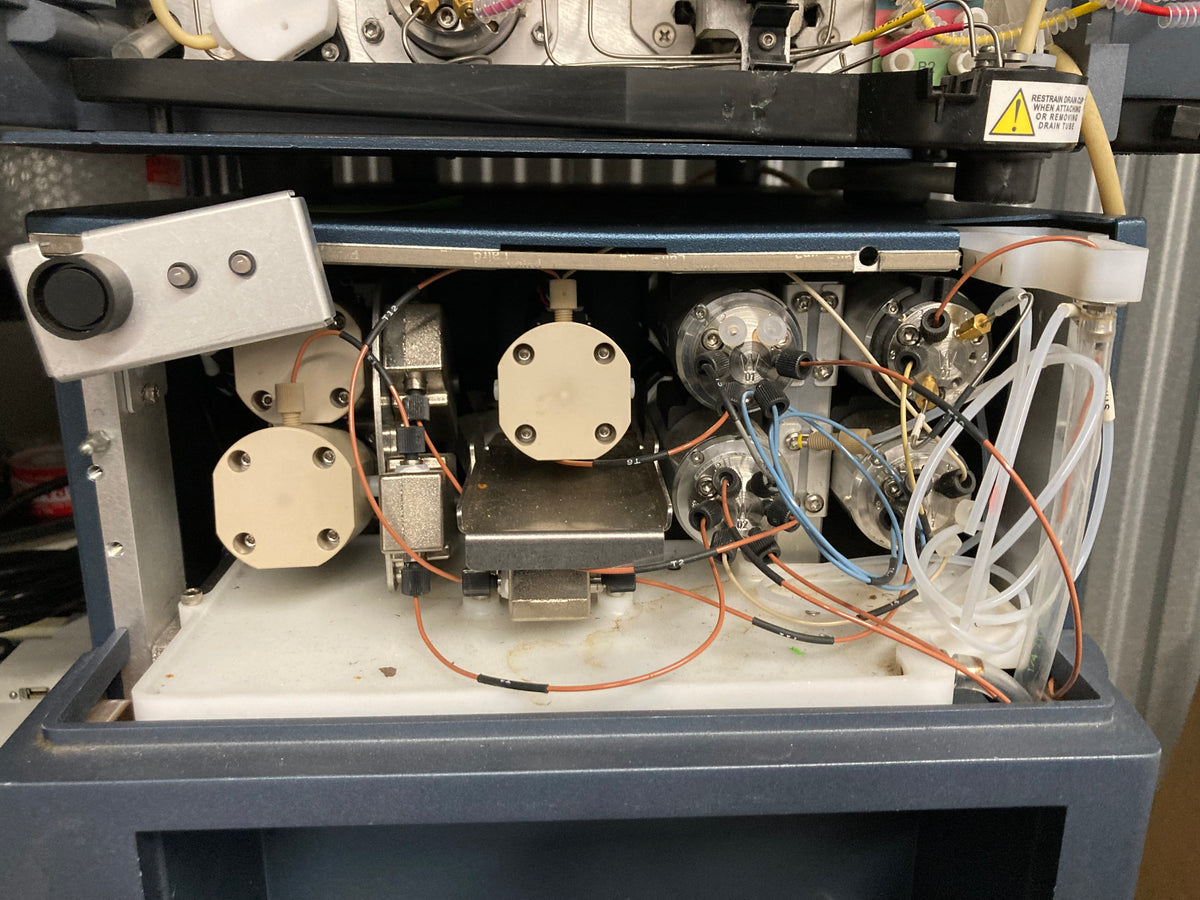

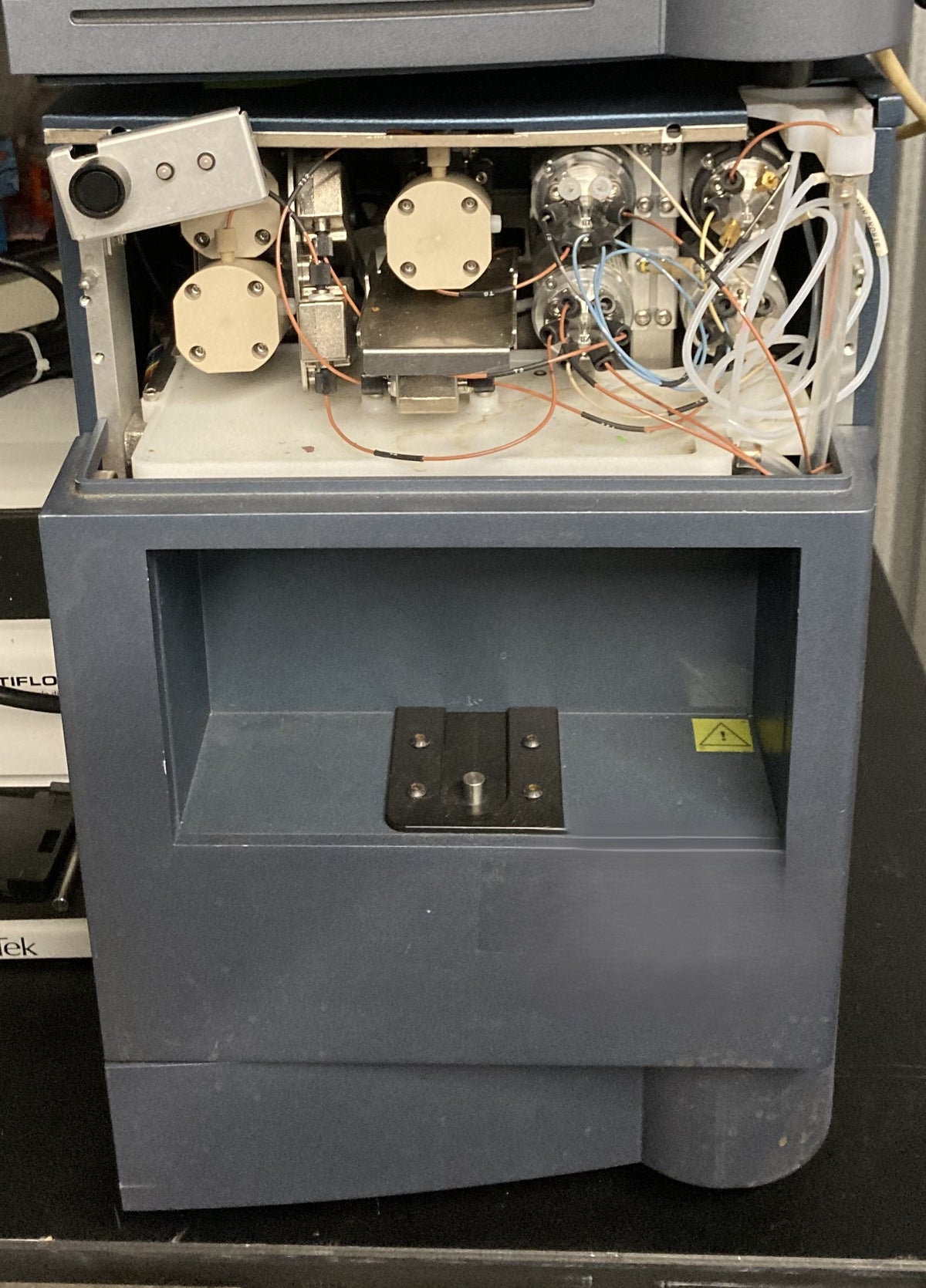

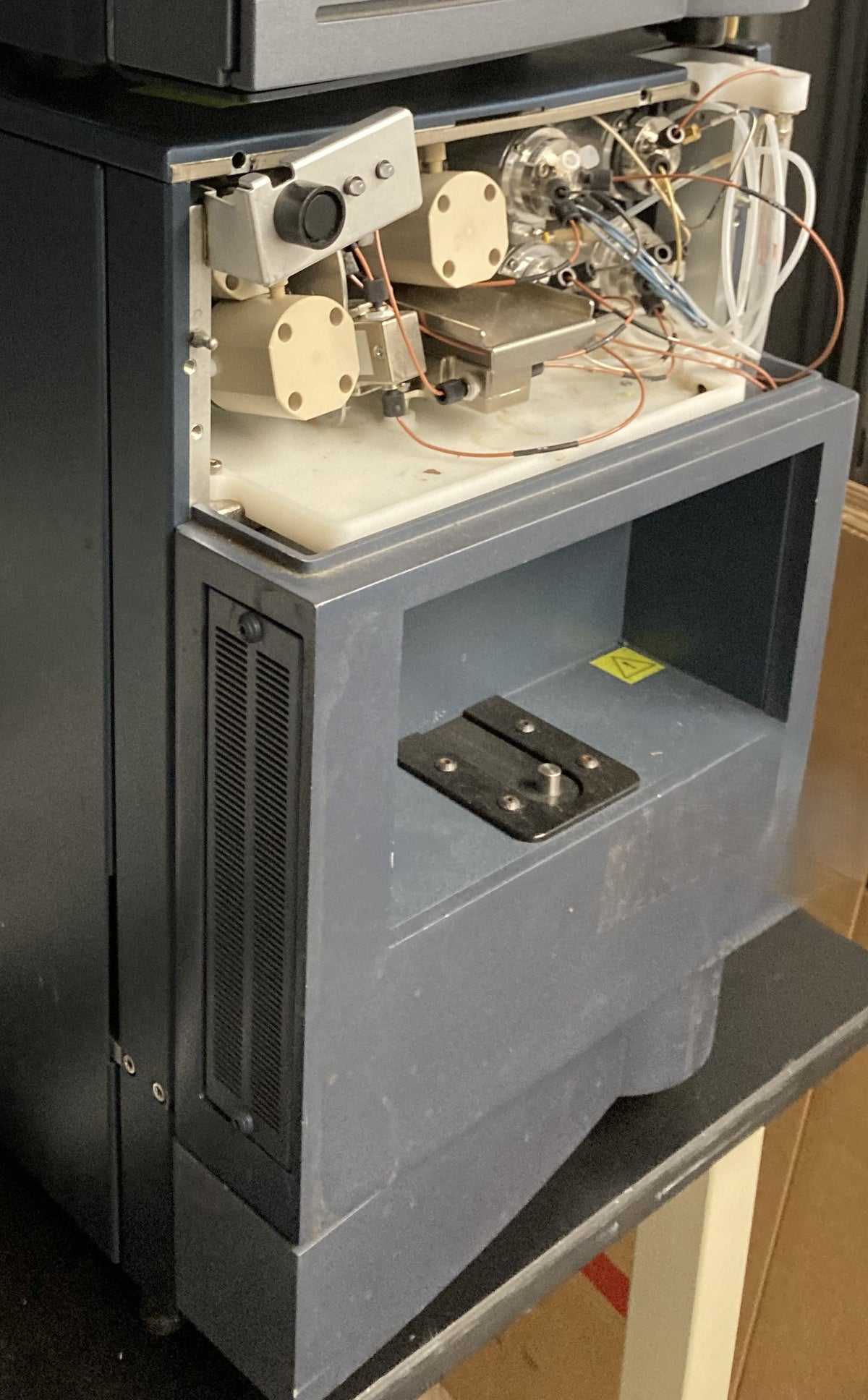

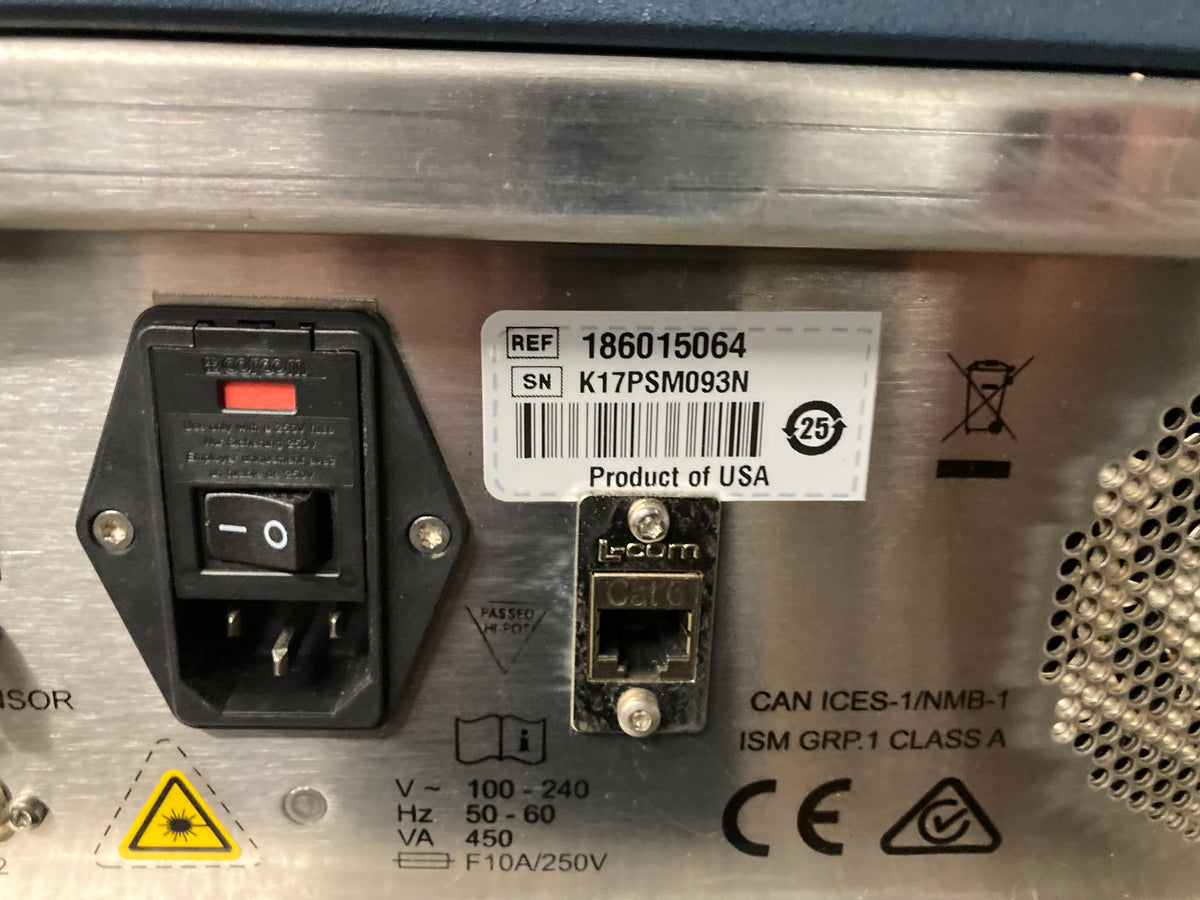

Waters ACQUITY UPLC Process Sample Manager (PSM) (REF 186015064) S/N K17PSM093N

The ACQUITY UPLC Process Sample Manager (PSM) is a specialized module designed by Waters Corporation for online and at-line process analysis. It enables real-time monitoring of production processes by bridging the gap between a process stream and UPLC analysis Key Features Dual Sampling Modes : Capable of accepting manual vial-based samples (atline) or aspirating directly from a process slip-stream or vessel (online). Automated Dilution : Performs in-situ dilutions to reduce manual handling errors and ensure samples are within the detector's linear range. Integrated Barcode Reader : Automatically verifies sample IDs for complete tracking and traceability of results. Software Integration : Managed by Waters Empower Chromatography Data Software for data integrity and 21 CFR Part 11 compliance; can interface with LIMS, DCS, and SDMS. PAT/QbD Compatibility : Supports Process Analytical Technology (PAT) and Quality by Design (QbD) initiatives by providing real-time quantitative results for process adjustment. Technical Specifications Sample Compartment Temp 4.0 to 40.0 °C Temperature Stability ±0.5 °C from set point Cooling Time <60 minutes from 30 °C to 4 °C Acoustic Noise <65 dBA Power Requirements 100 to 240 VAC, 50/60 Hz; 450 VA consumption Operating Environment 4 to 40 °C; 20% to 80% humidity (non-condensing) TRUE Dimensions 13.5" W x 21.25" H x 26.5" D (34.3 x 54 x 67.3 cm) Weight: 125 lbs.

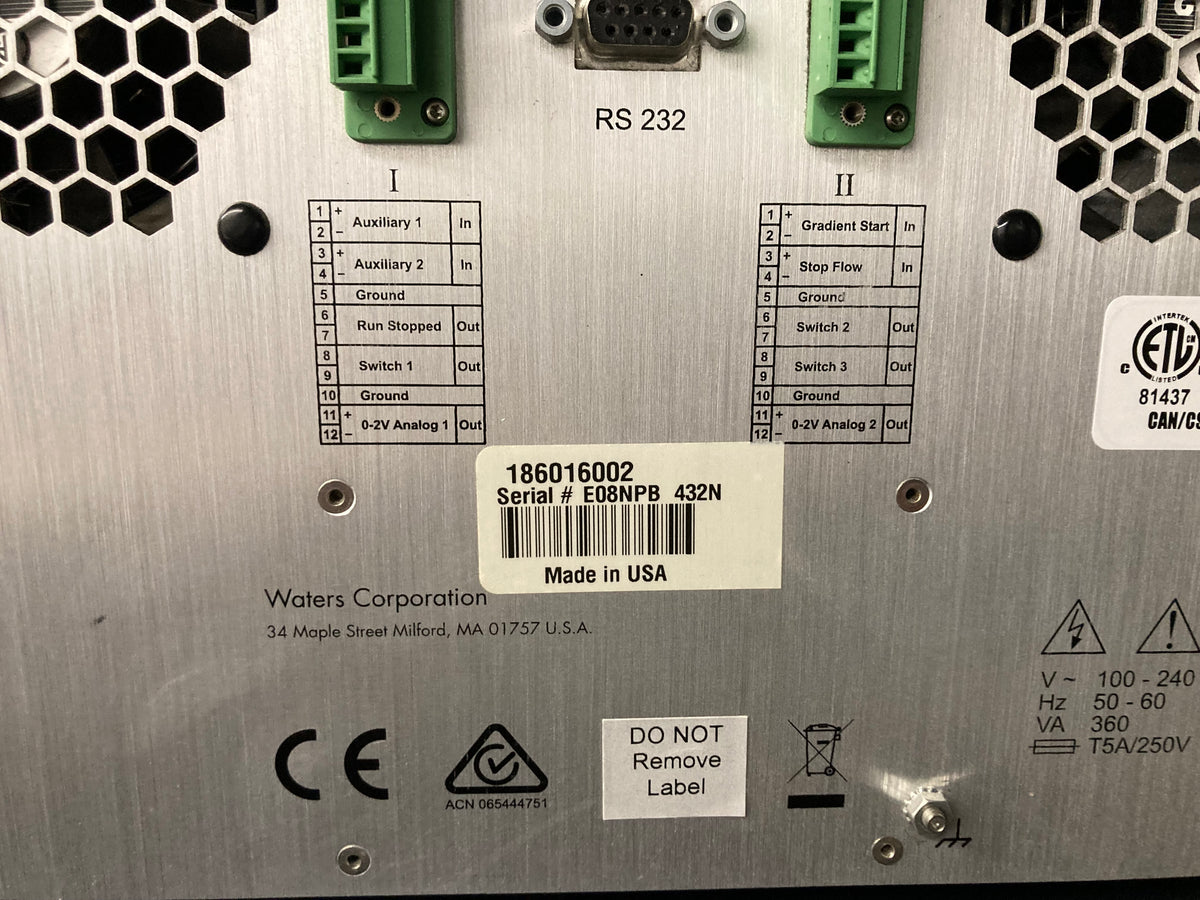

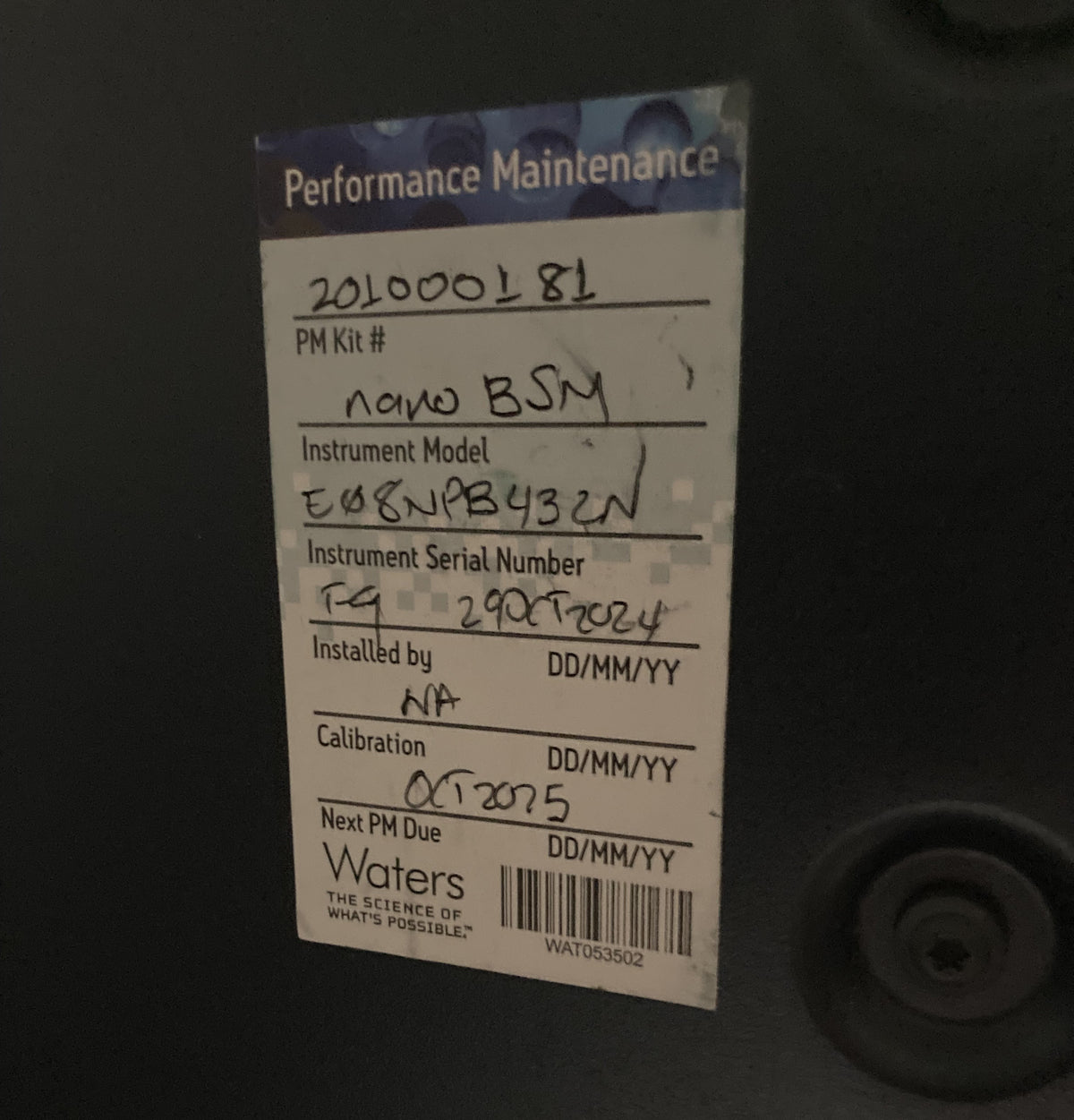

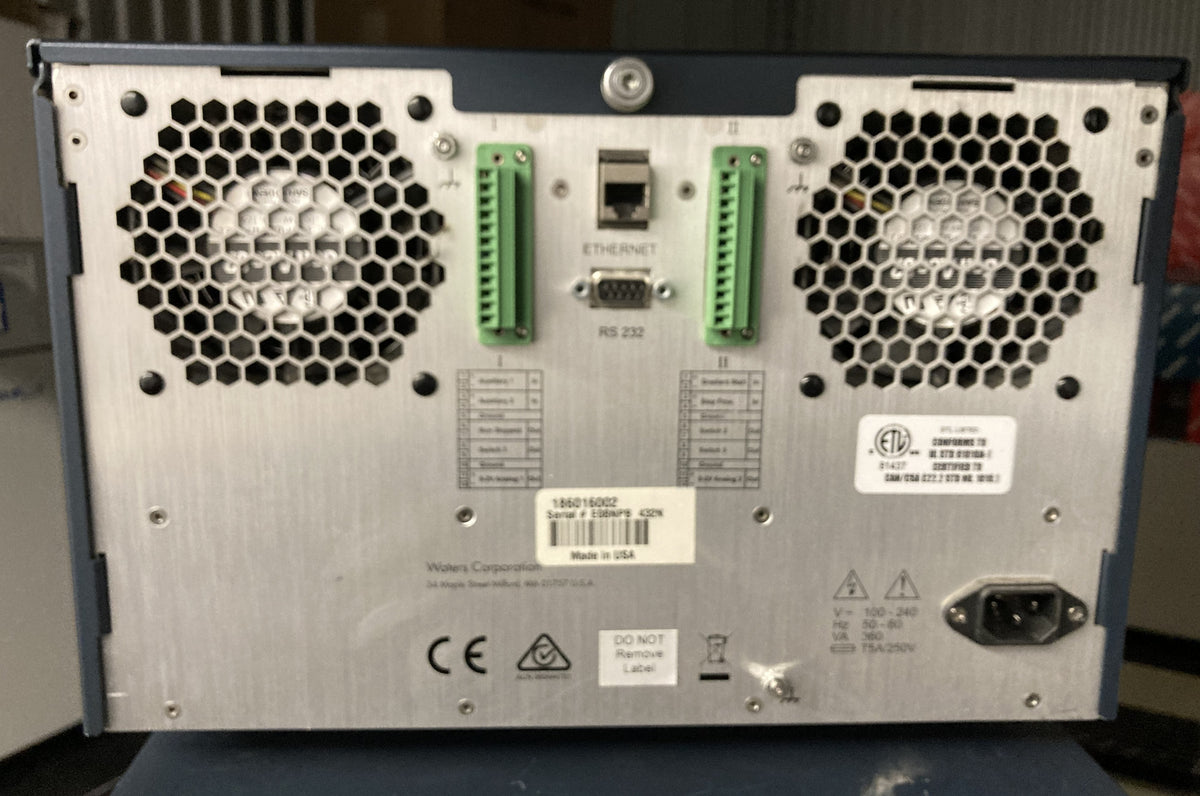

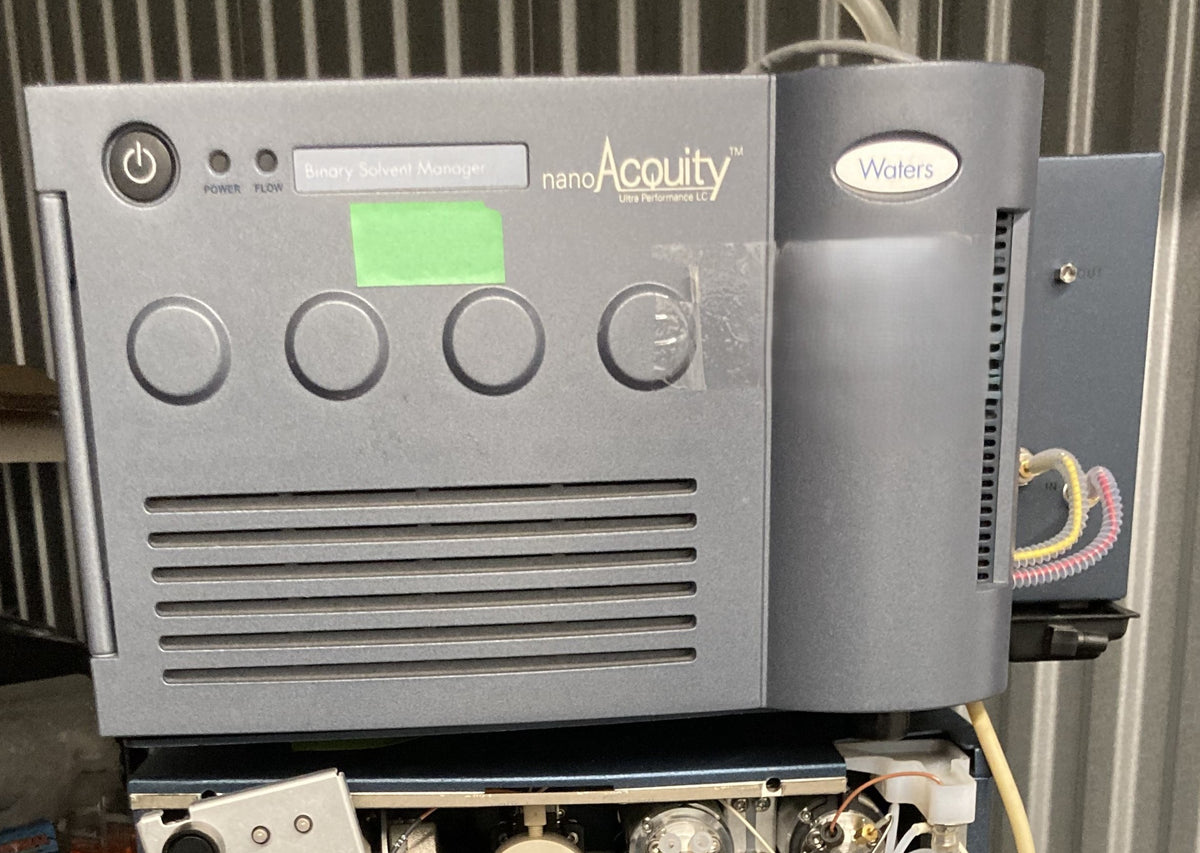

Waters nanoACQUITY Binary Solvent Manager (BSM) 186016002 S/N E08NPB 432N

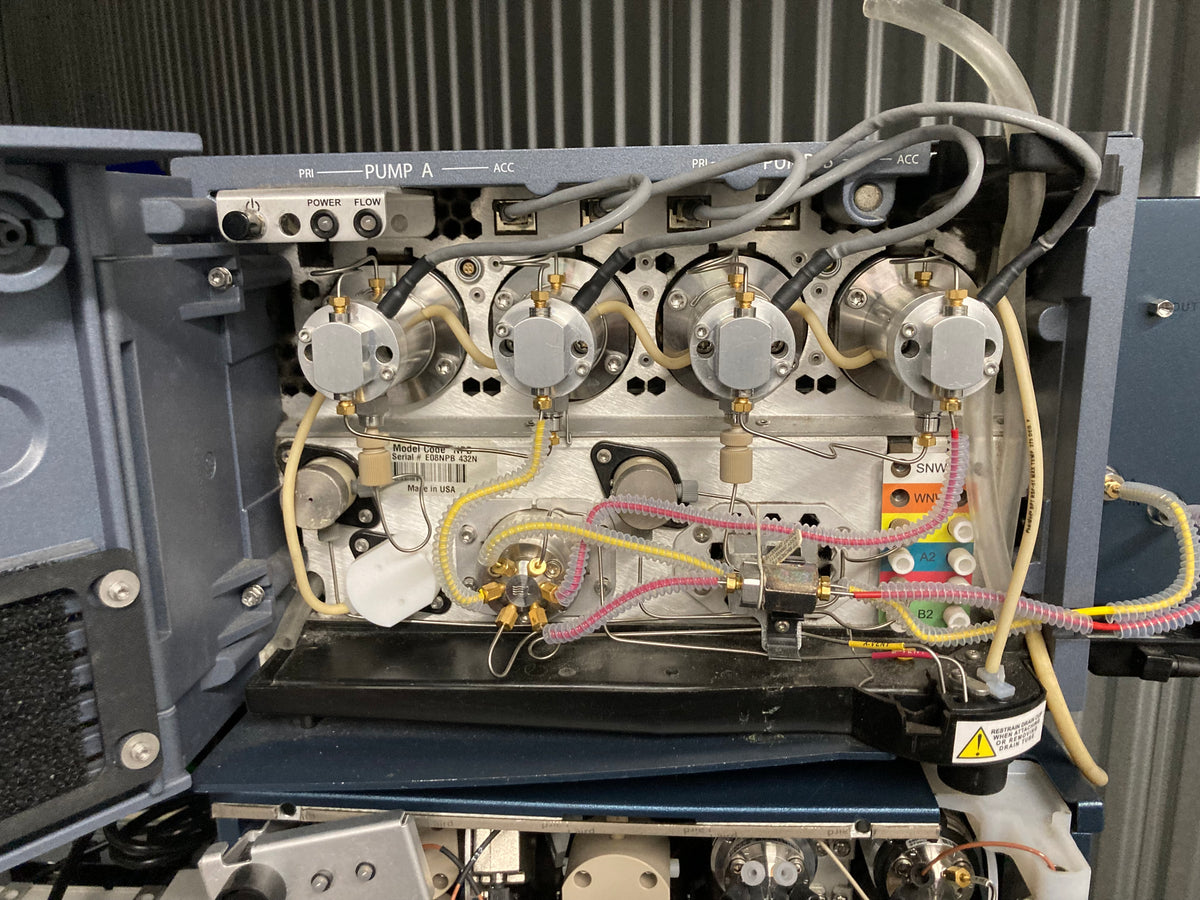

The Waters nanoACQUITY UPLC Binary Solvent Manager (BSM) is a high-pressure pump for precise solvent delivery in UPLC and HPLC systems. It handles up to four solvents via a vacuum degasser and has a flow rate of 0.010 to 2.000 mL/min Key Performance Specifications Operating Pressure: Supports up to 15,000 psi at flow rates $\le$1 mL/min and up to 9,000 psi at flow rates up to 2 mL/min. Flow Rate Range: Delivers analytical flow from 0.010 to 2.000 mL/min in precise 0.001 mL increments. Compositional Accuracy: $\pm$0.5% absolute for flow between 5% and 95% at 0.5-2.0 mL/min. Low Delay Volume: Features an effective system delay volume of <120 L (with a standard 50-L mixer), ensuring rapid gradient response Dimensions & Weight: Width: 13.5 inches (34.3 cm) Height: 9.0 inches (22.9 cm) Depth: 26.0 inches (66.0 cm) Weight: 58.0 pounds (26.3 kg)
