Description

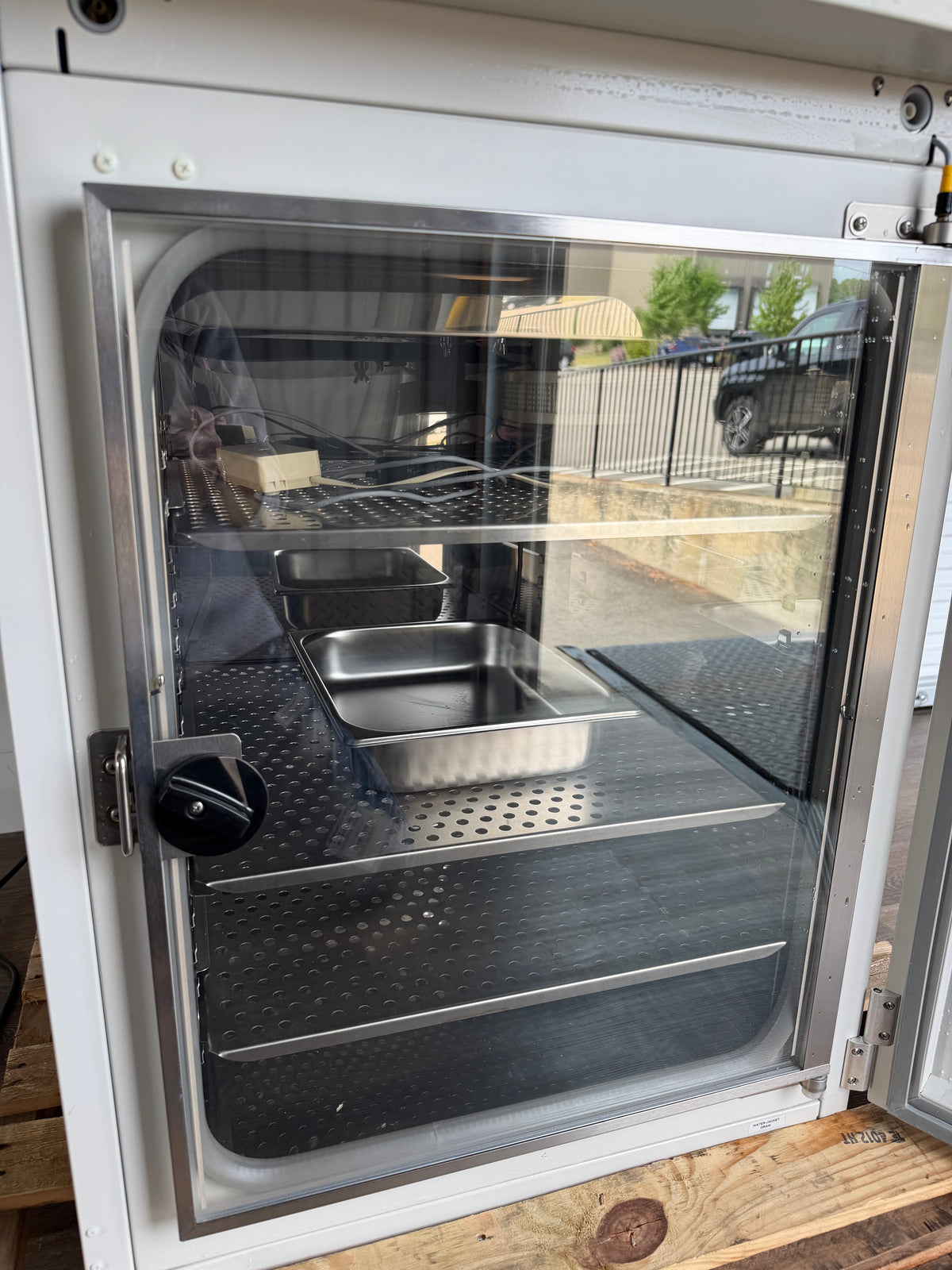

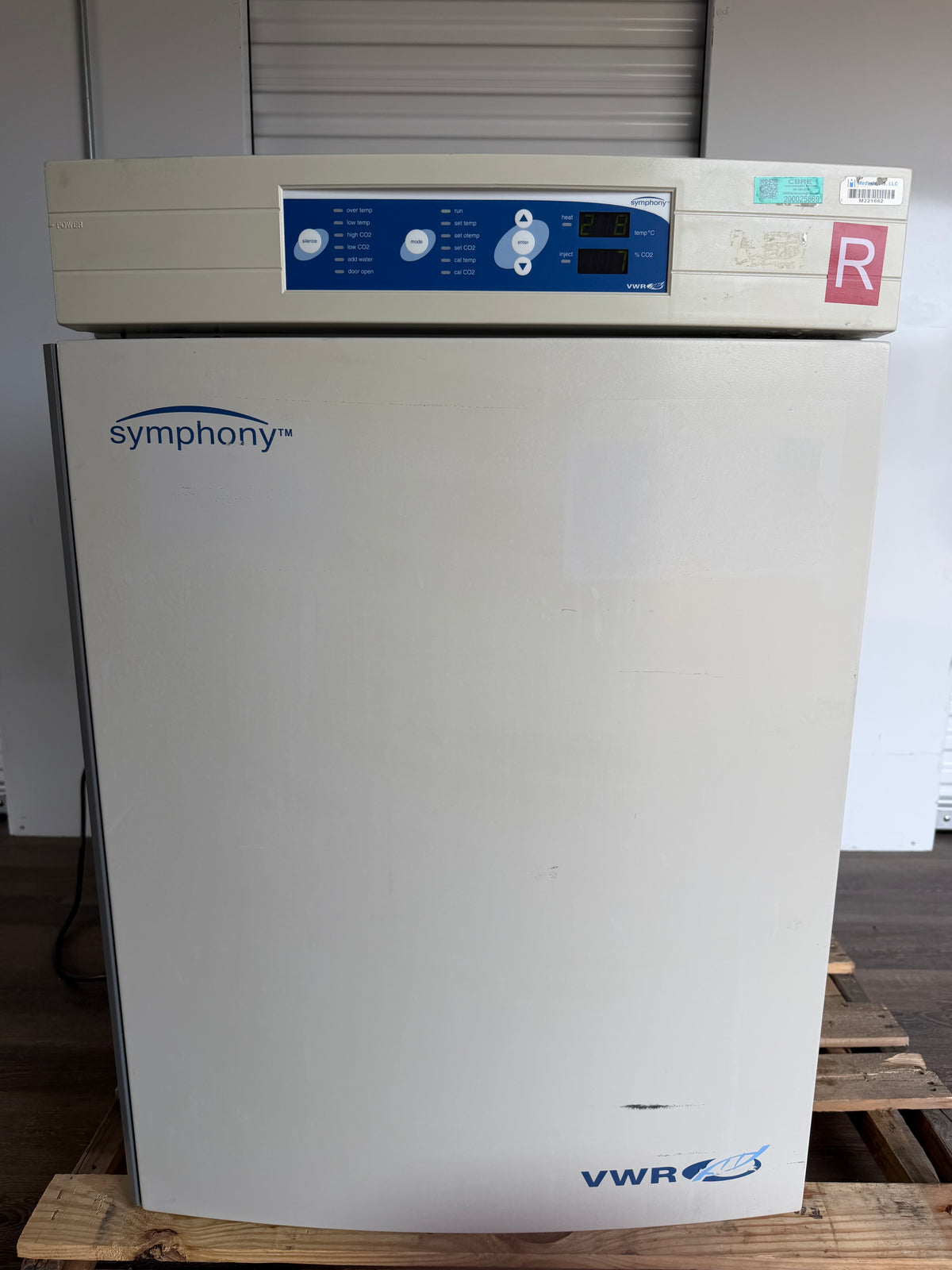

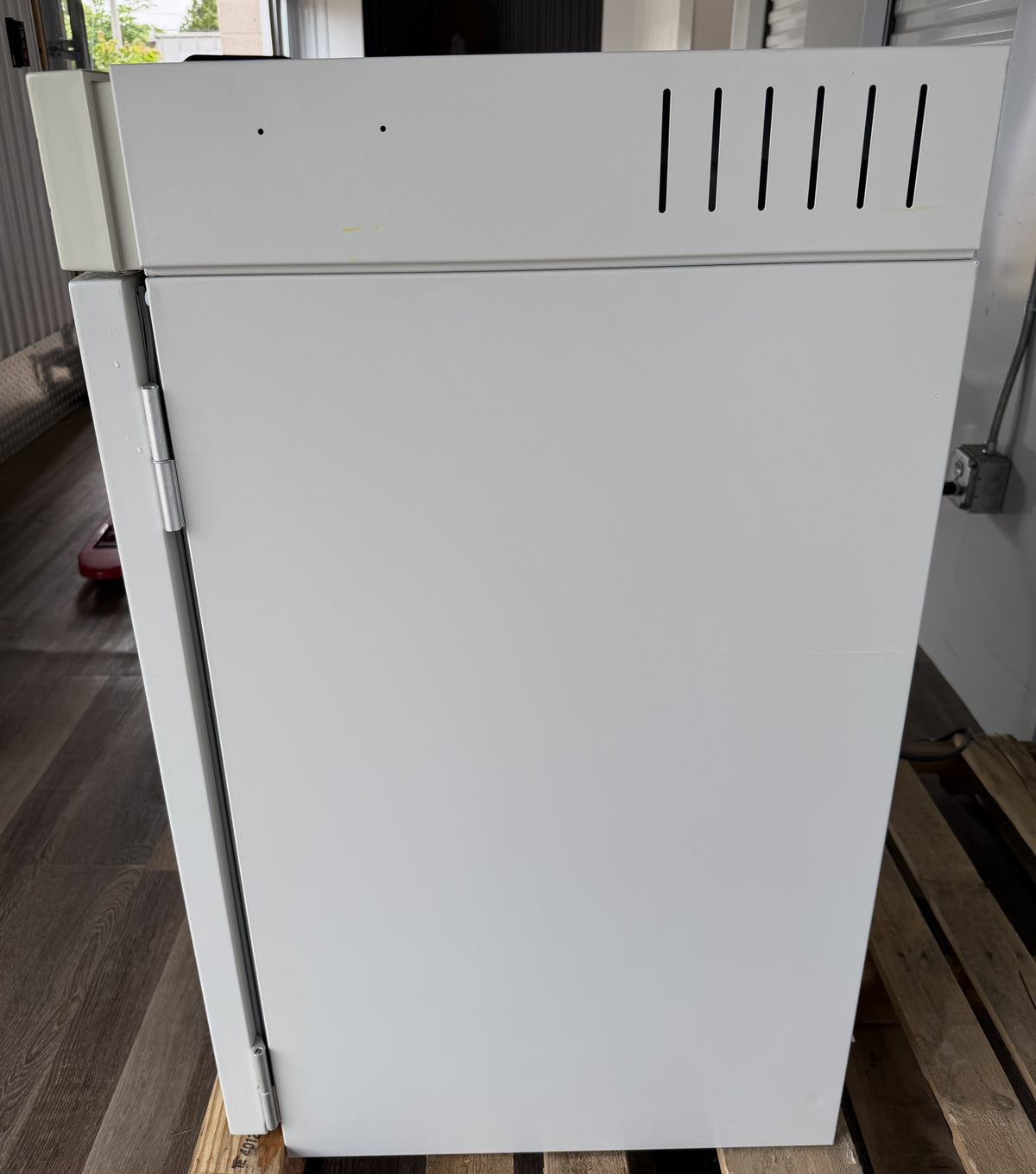

The VWR Symphony Model 3074 is a water-jacketed CO2 laboratory incubator designed to provide maximum temperature stability, precise gas control, and robust contamination protection for cell and tissue culture growth. Triple-Walled Water Jacket : Surrounds the interior chamber with 11.7 gallons (43.5L) of temperature-conditioned water. This design absorbs ambient fluctuations and retains heat during power outages or frequent door openings. CO2 Regulation : Utilizes a thermal conductivity (TC) sensor to accurately and continuously track carbon dioxide levels inside the unit. Contamination Protection : Employs a fan-assisted HEPA filtration system that continuously purges airborne particles and safeguards samples upon opening the outer door. Decontamination Cycle : Built-in 90°C moist heat high-temperature cycle effectively eliminates contaminants without requiring liquid chemical sterilants. Inner Glass Door : Features an internal glass barrier allowing researchers to view cultures without disturbing the internal atmosphere. Technical Specifications Interior Chamber Volume 6.5 cubic feet / 184 Liters Chamber Construction Polished stainless steel interior, cold-rolled steel exterior Temperature Range Ambient +5°C to 55°C Range & Accuracy 0 to 20% range; Better than +-0.1% control accuracy Relative Humidity (RH) Ambient to 95% at 37°C (via standard 3L humidity pan) Electrical Requirements 115V, 50/60 Hz, 3.6 Amps Interior Dimensions 21.3" W x 26.8" H x 20" D Exterior Dimensions 26.3" W x 39.5" H x 25" D Weight (Empty): Approx. 265 lbs (120 kg)
