Description

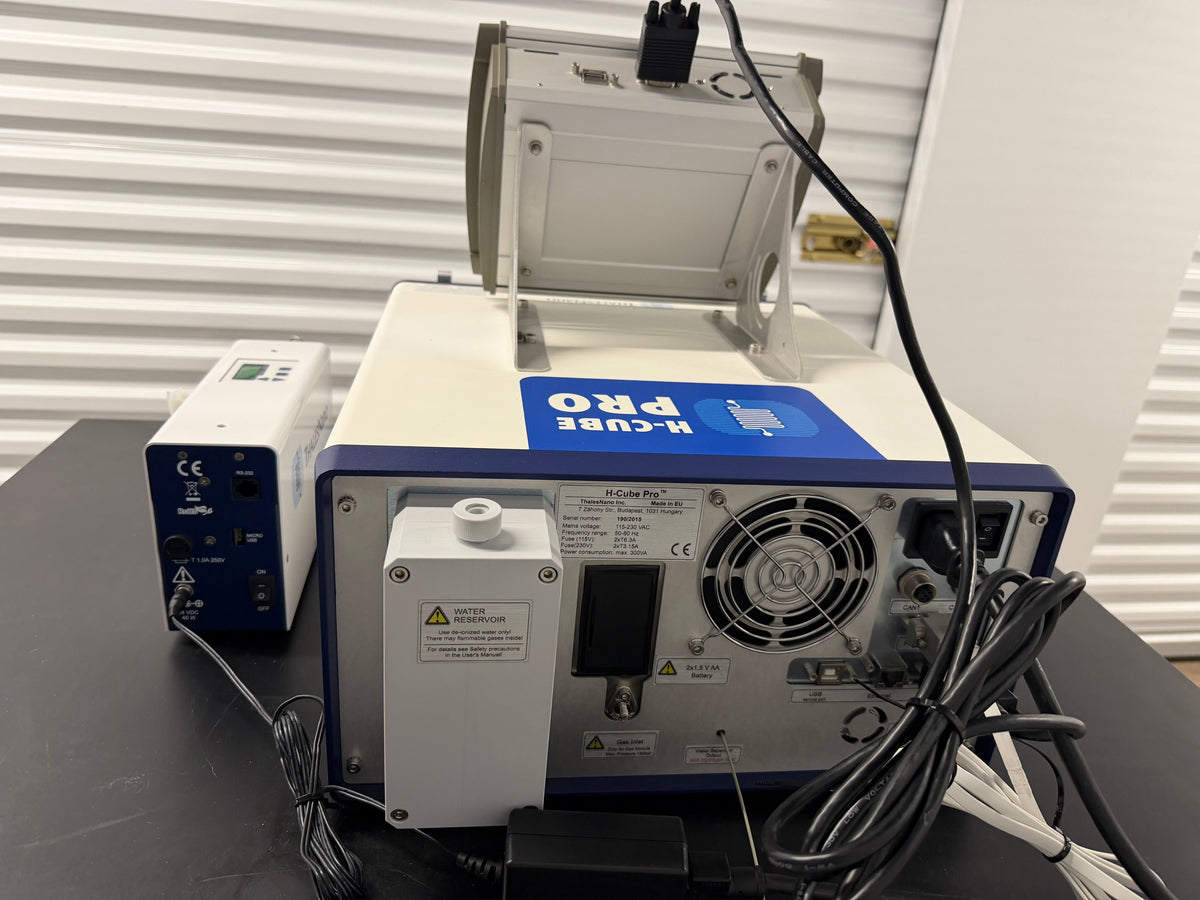

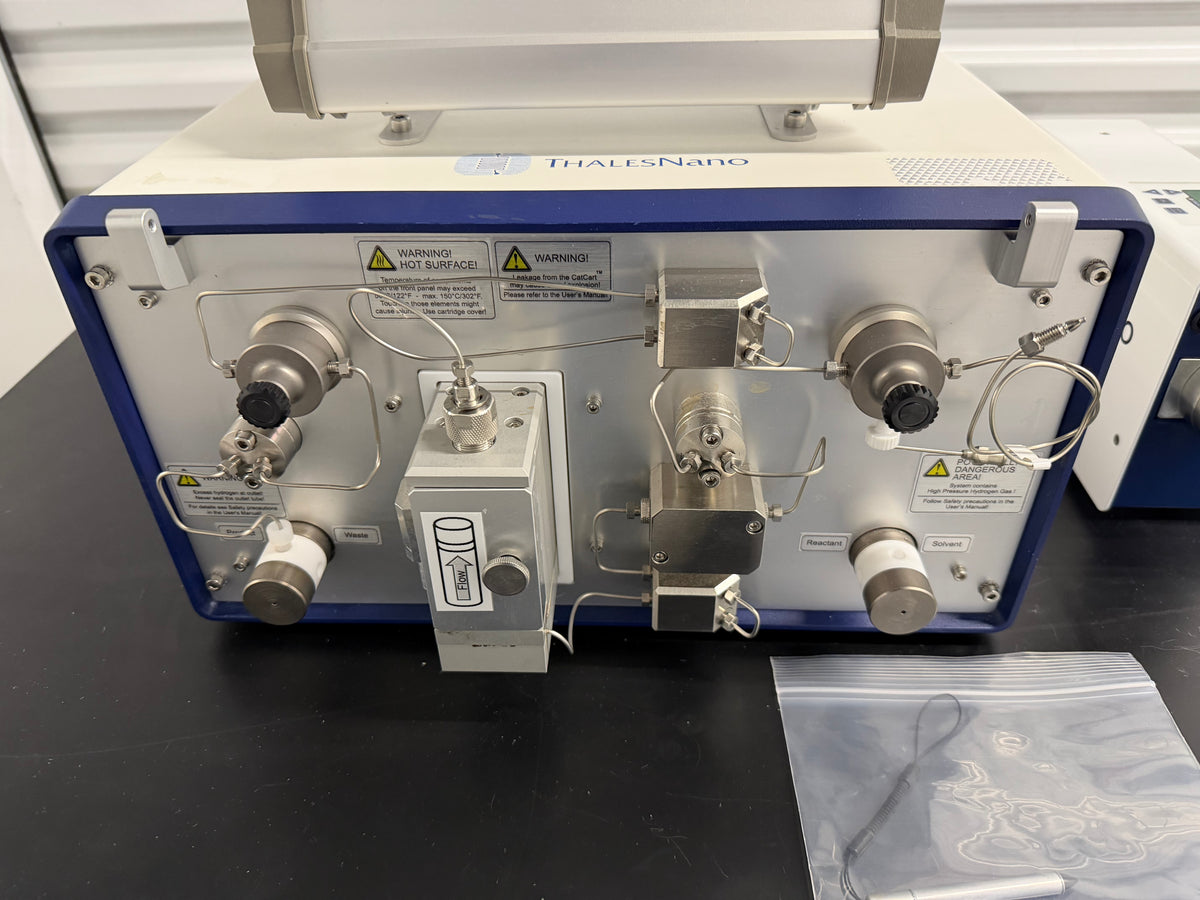

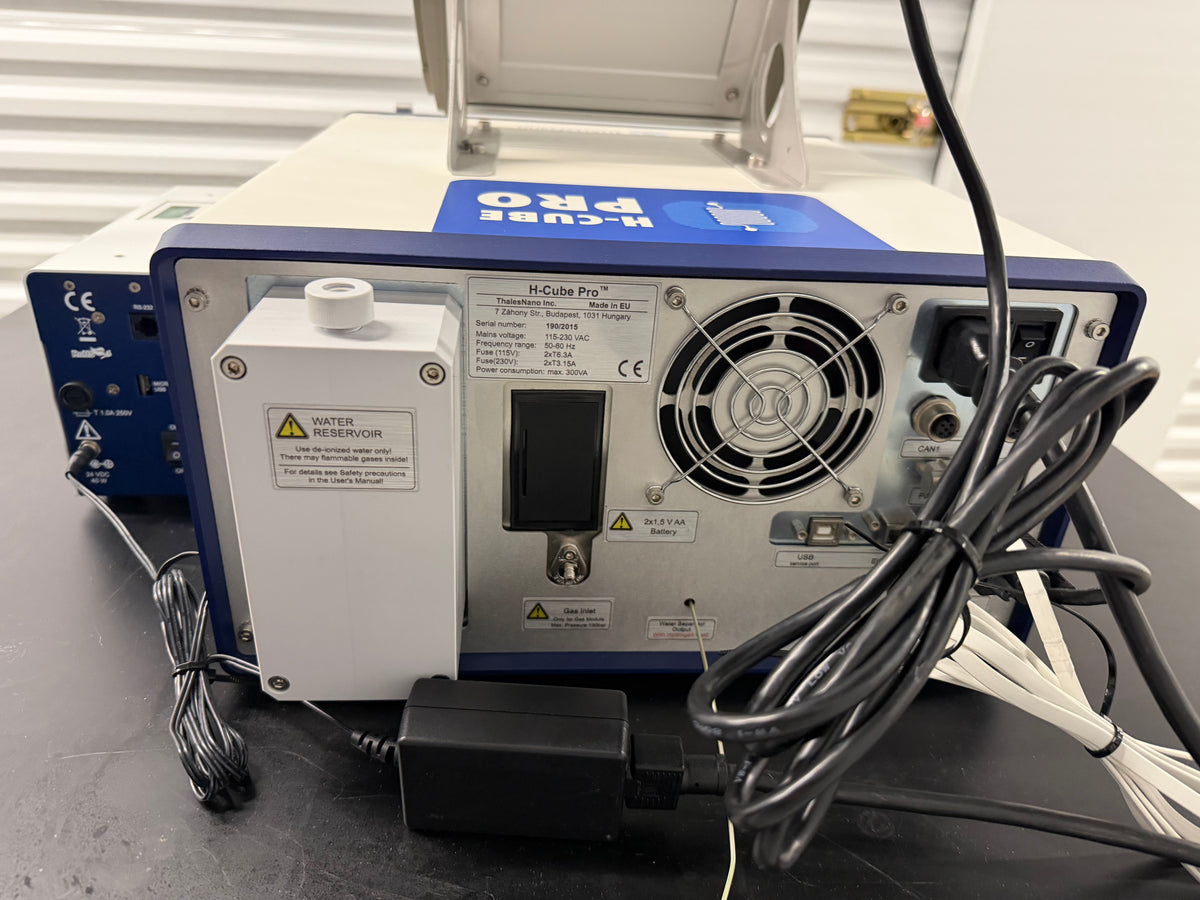

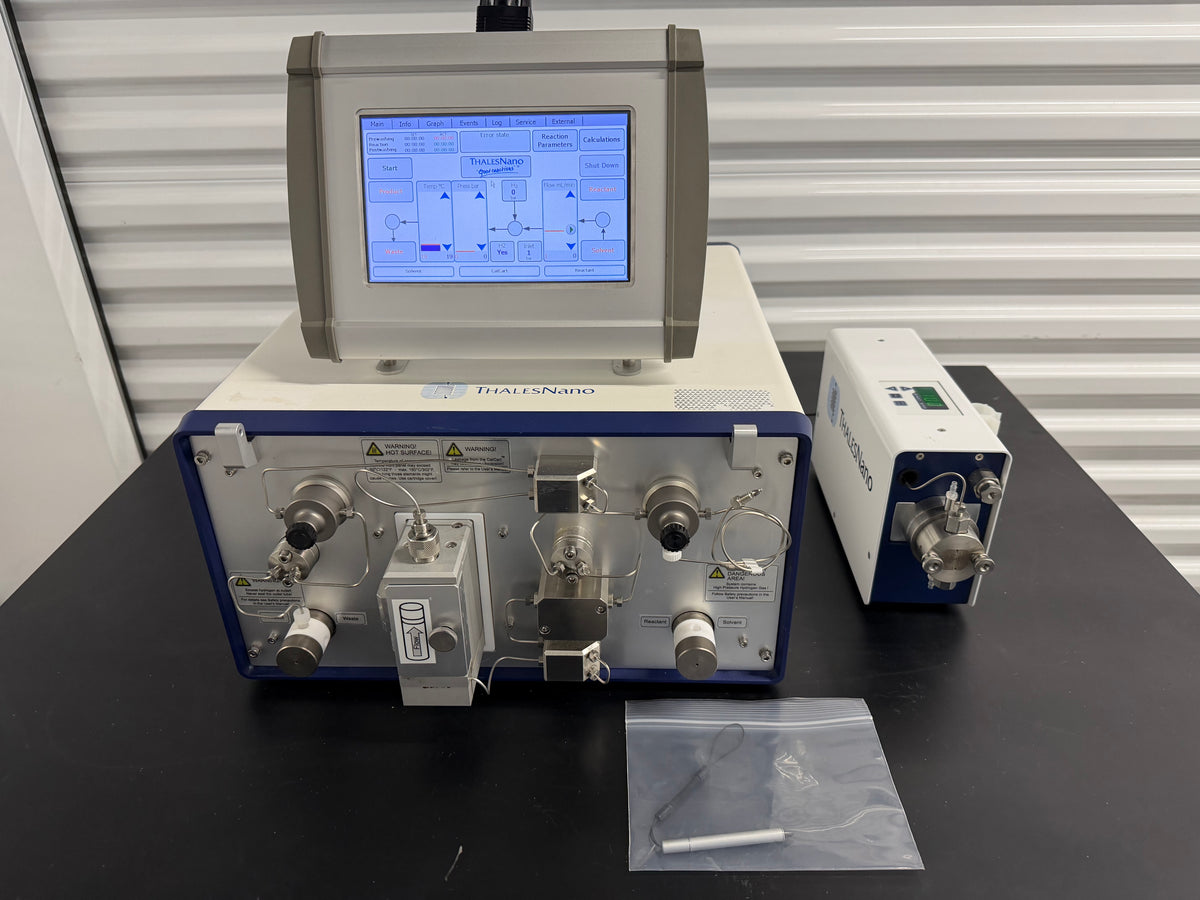

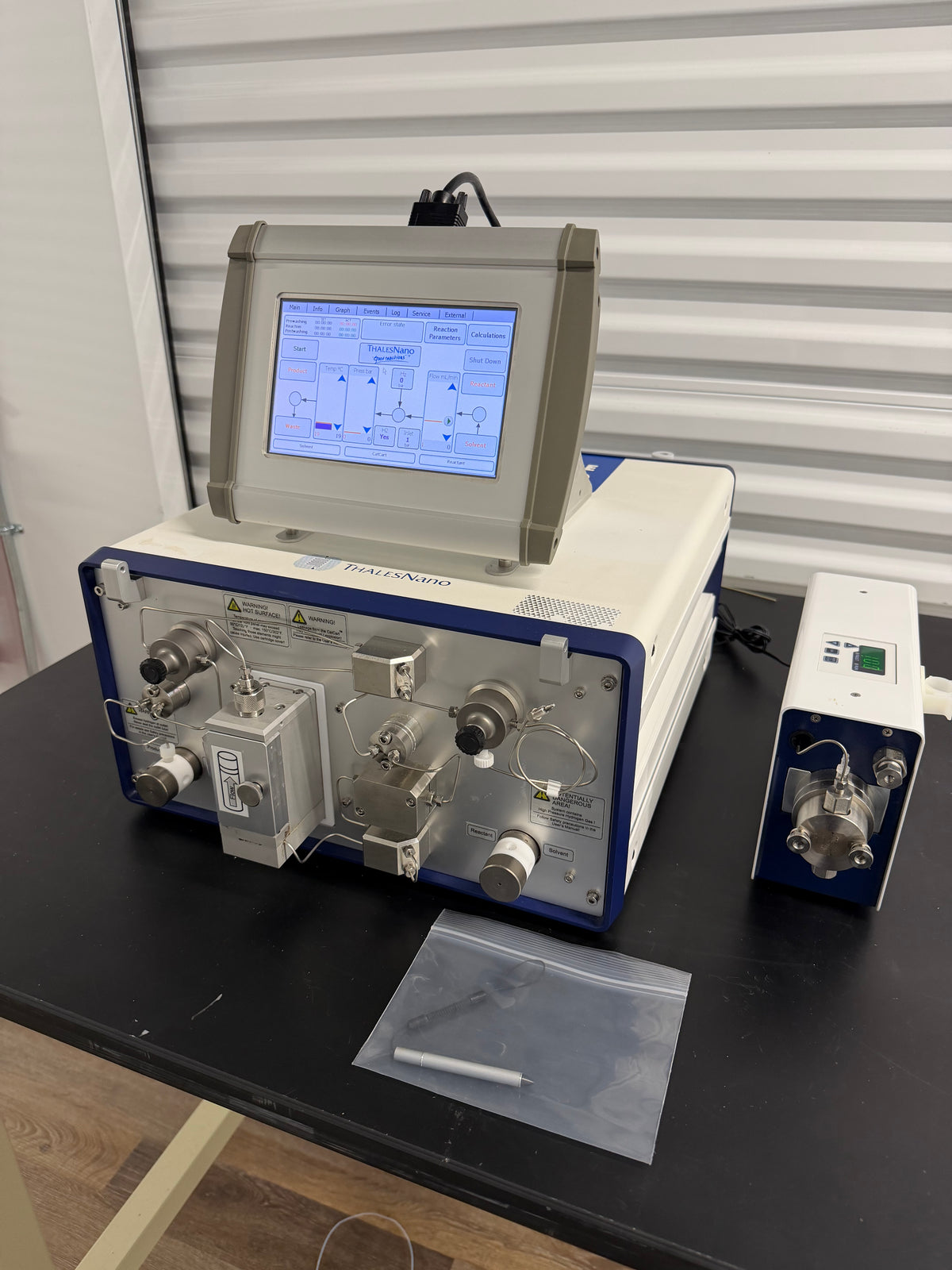

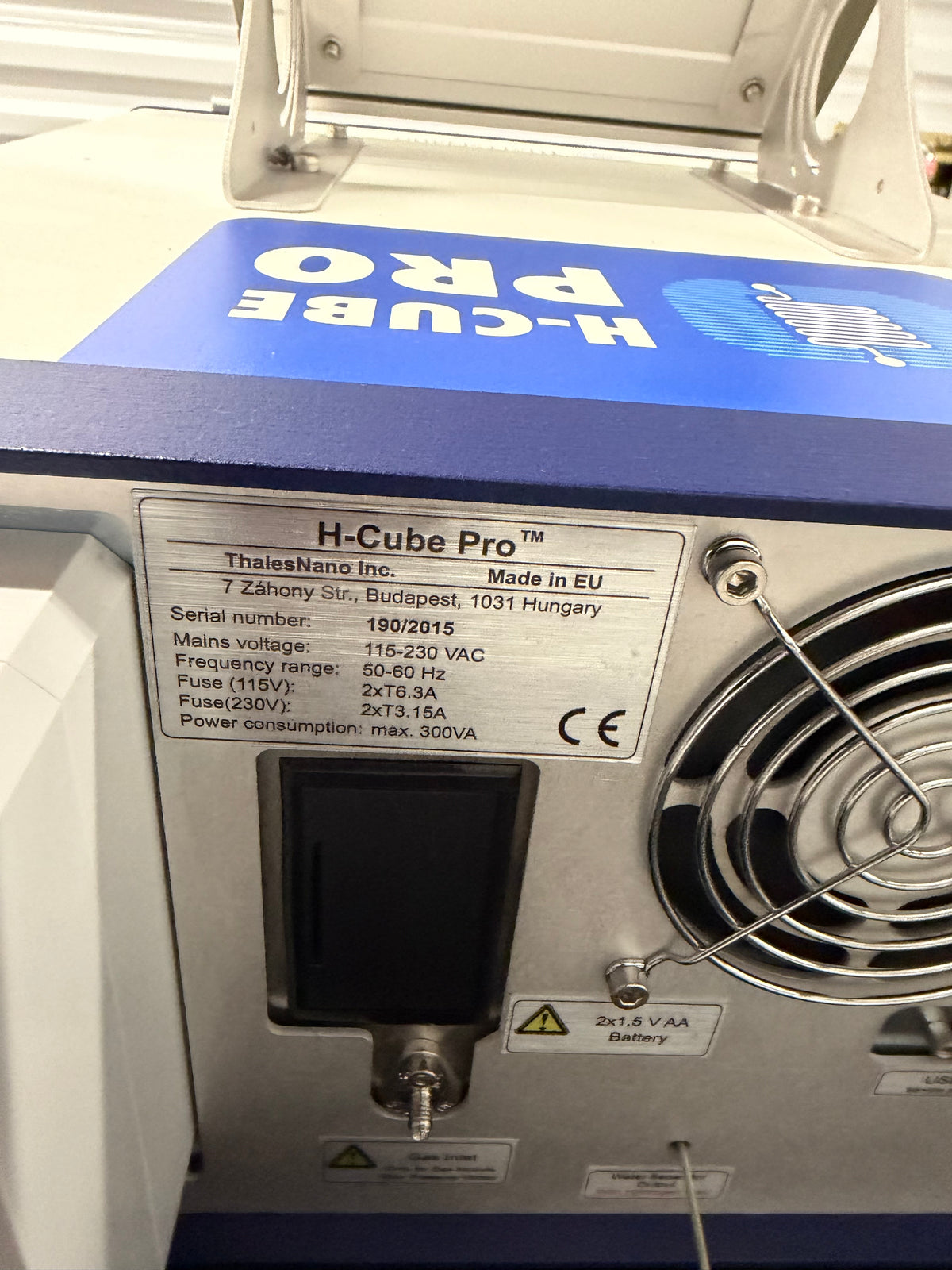

The ThalesNano H-Cube Pro Continuous-Flow Hydrogenation Reactor, complete with the essential ThalesNano 170269 Micro HPLC Pump. Engineered for advanced bench-top organic synthesis, this system delivers standalone, safe, and highly efficient hydrogenation by combining microchemistry with endogenous, on-demand hydrogen generation—eliminating the need for dangerous external gas cylinders and tedious catalyst filtration.

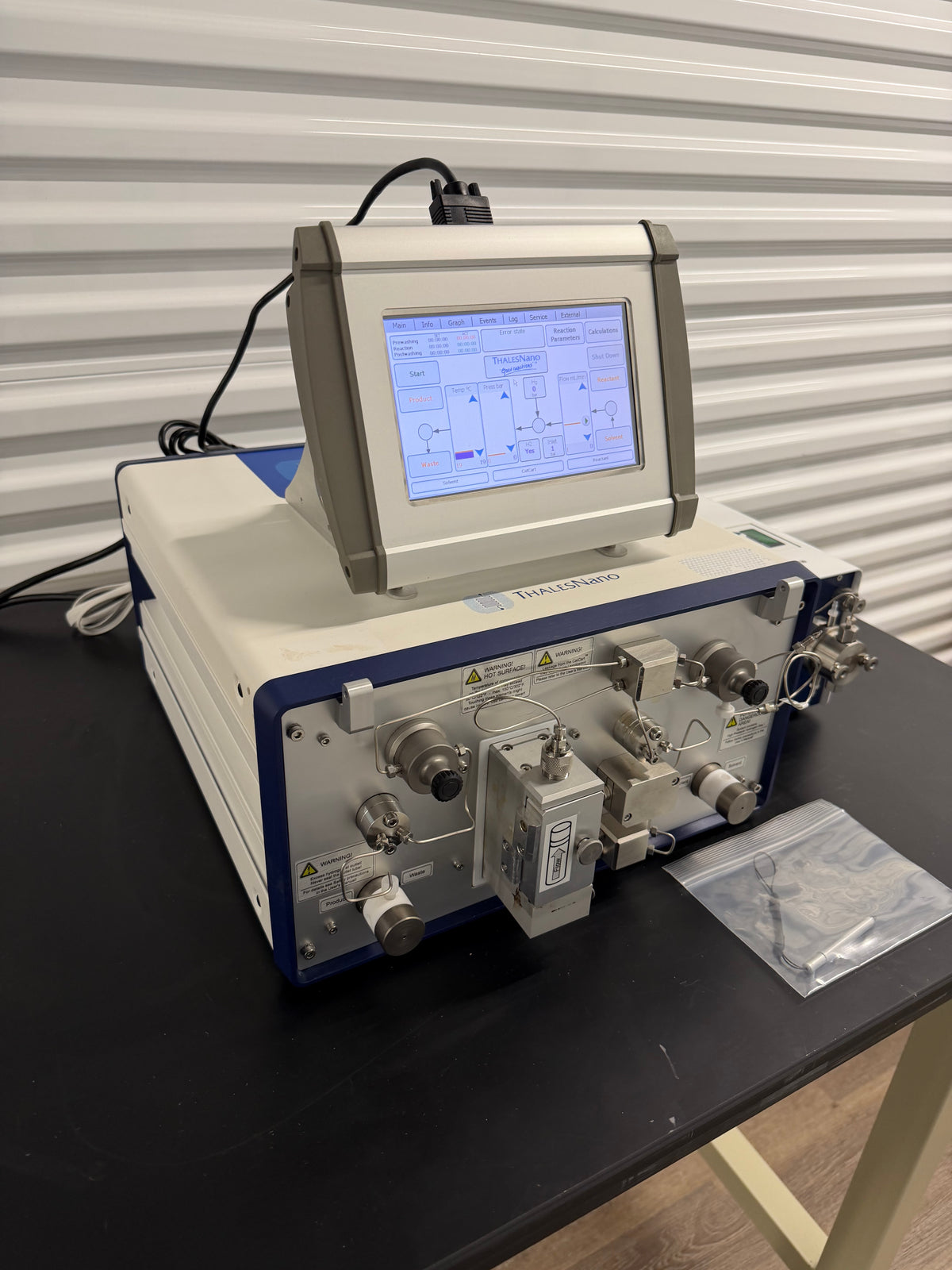

Whether you are scaling up pharmaceutical intermediates or performing selective chemical transformations, the H-Cube Pro provides unparalleled control via its integrated touchscreen interface.
Key Features & Capabilities:
- On-Demand Hydrogen Generation: Dual electrolytic cells generate up to 60 NmL/min of high-purity H₂ gas safely from water.
- Wide Parameter Range: Capable of operating at temperatures from 10 °C up to 150 °C and pressures from atmospheric up to 100 bar.

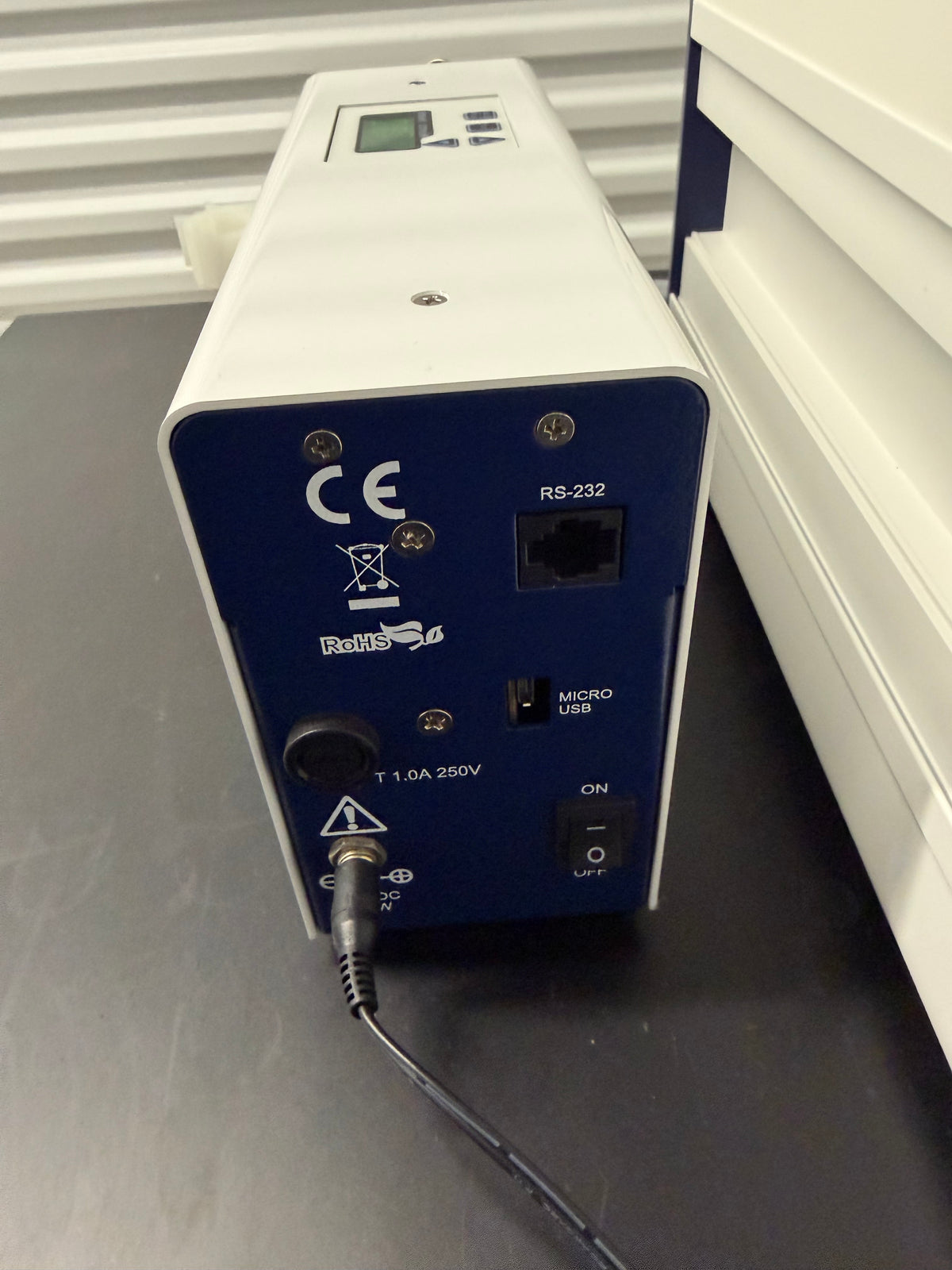

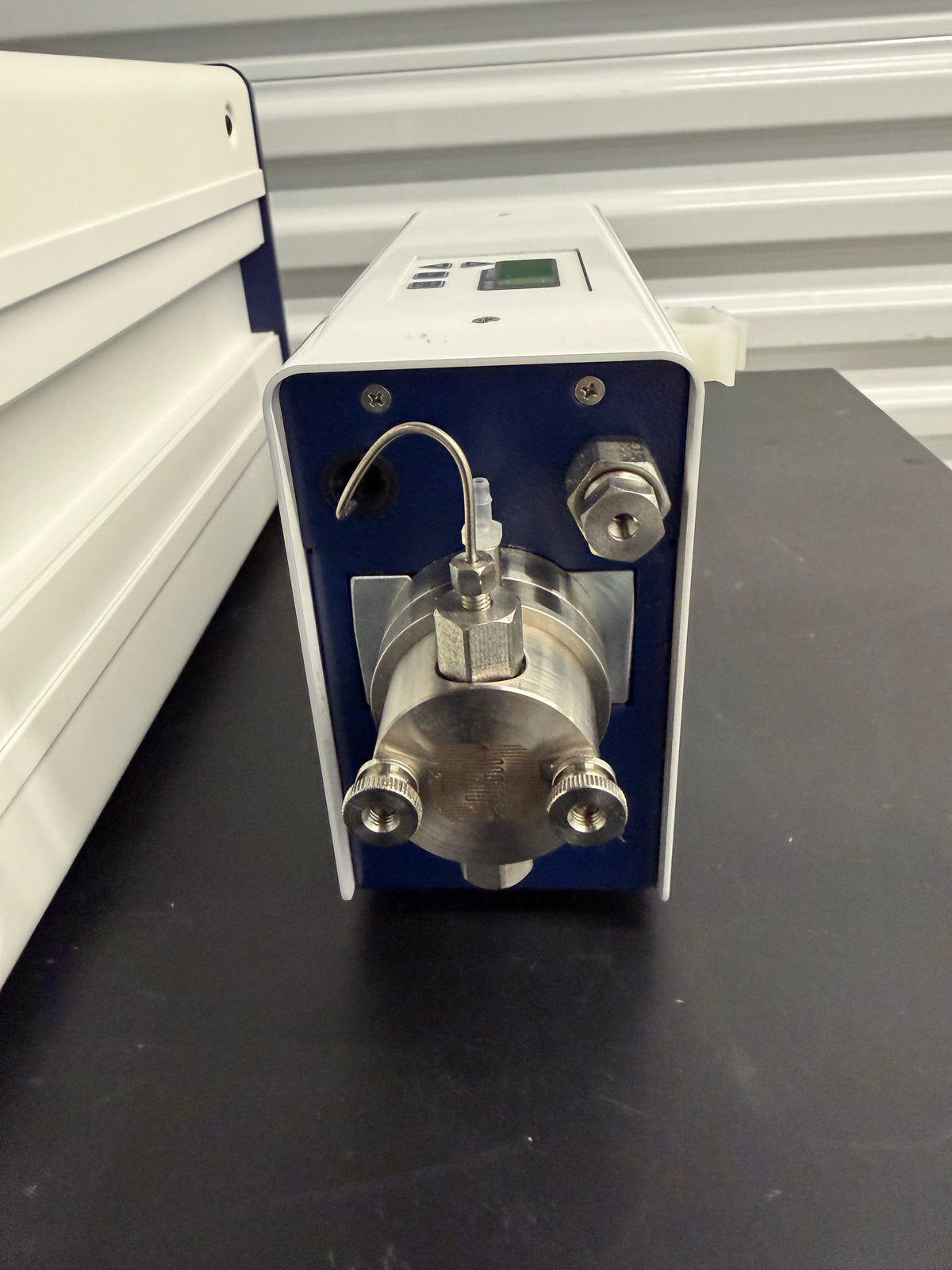

- Integrated Pumping Solution: Includes the specialized ThalesNano Part 170269 Micro HPLC Pump to guarantee precise liquid flow rates (0.3–3 mL/min) through the catalyst bed.
- CatCart Compatibility: Designed for use with 30 mm and 70 mm disposable solid catalyst cartridges to completely prevent exposure to pyrophoric materials.
System Specifications:
- Brand: ThalesNano
- Reactor Model: H-Cube Pro
- Pump Part Number: 170269
- Voltage: 115-230 VAC (50/60 Hz)
- Flow Rate Capacity: 0.1 to 3.0 mL/min
- Max Pressure: 100 bar (1450 psi)
