Description

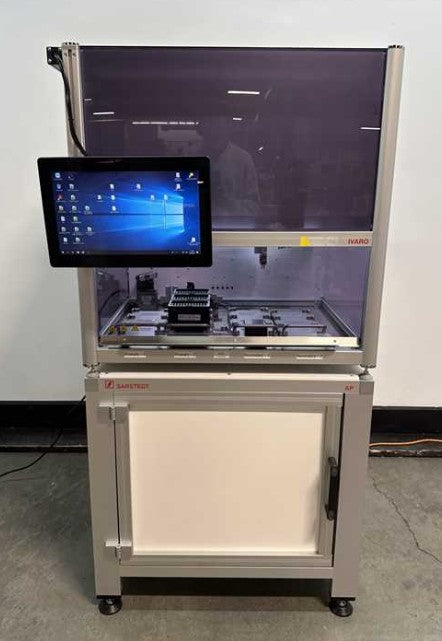

The SARSTEDT IVARO AP (Aliquoting and Pipetting) is a highly modular, automated lab workstation configured on the large XL12 chassis, designed specifically for precision liquid handling, sample splitting, and tube management. It eliminates monotonous manual workflows by combining high-speed sample preparation with automated scanning and capping.
· Chassis Size (XL12): Represents the high-capacity, 1,260 mm wide platform allowing extensive rack layouts and extended walkway time.
·
· Functional Type (AP): Dedicated to aliquoting, pipetting, and dilution series, unlike the FD version which focuses strictly on bulk filling and dosing.

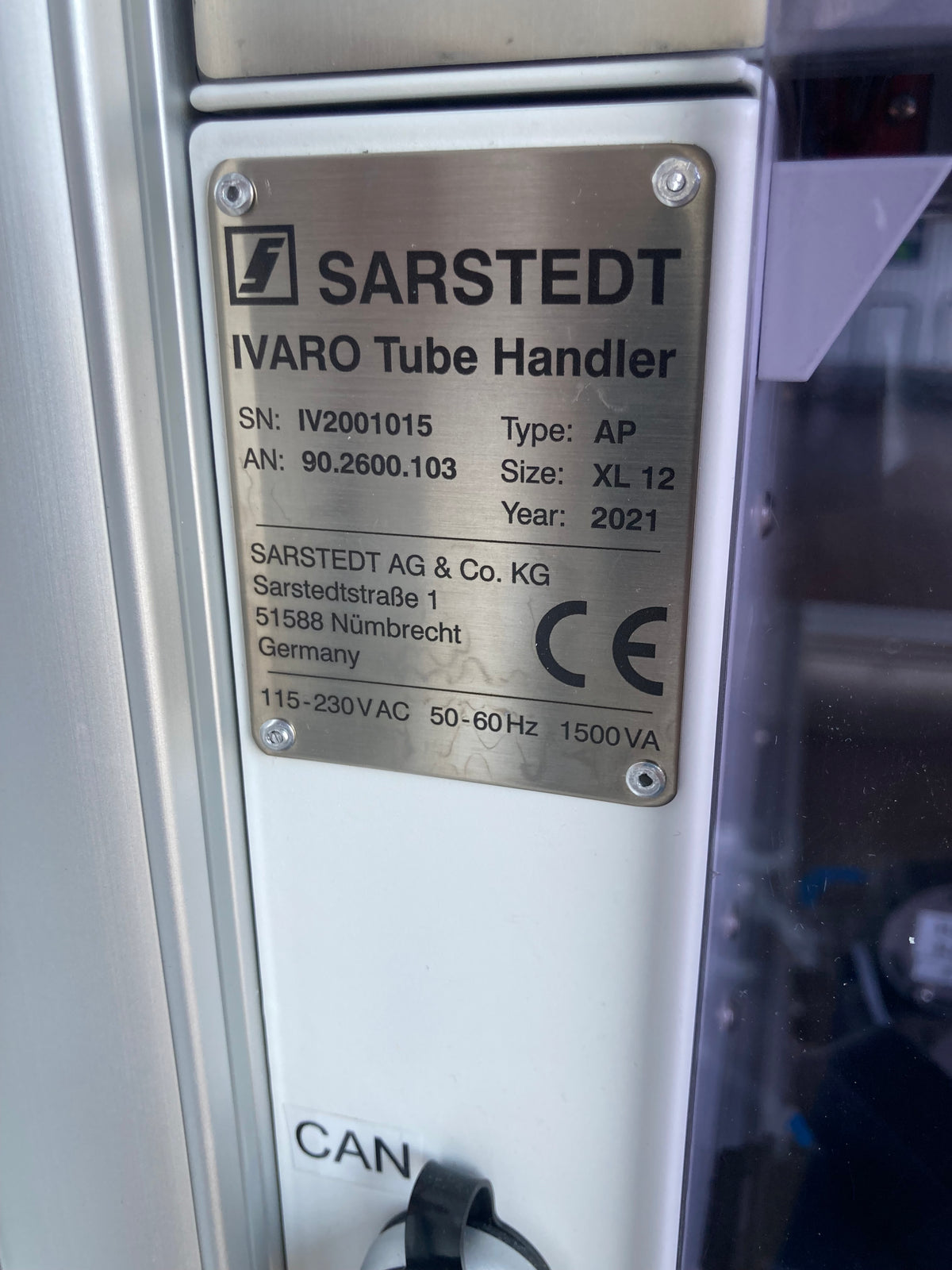

-Serial Number: IV2001015
- AN: 90.2600.103
-Includes

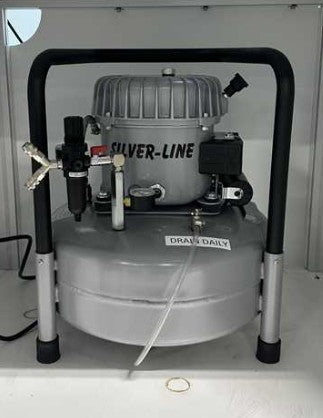

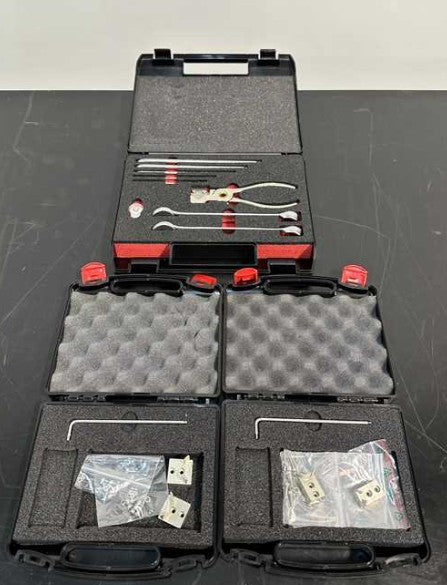

Includes: Planet Air L-S50-25 Air Compressor. Ivaro Tool Box & Ivaro Gripper Sets.
· Key Specifications & Capabilities
TRUE Dimensions Width: 1,260 mm
Liquid Level Detection Capacitive (cLLD) and Pressure-based (pLLD) sensors
Dosing Accuracy Features Qualitative Pipette Monitoring (QPM) for volatile or critical liquids

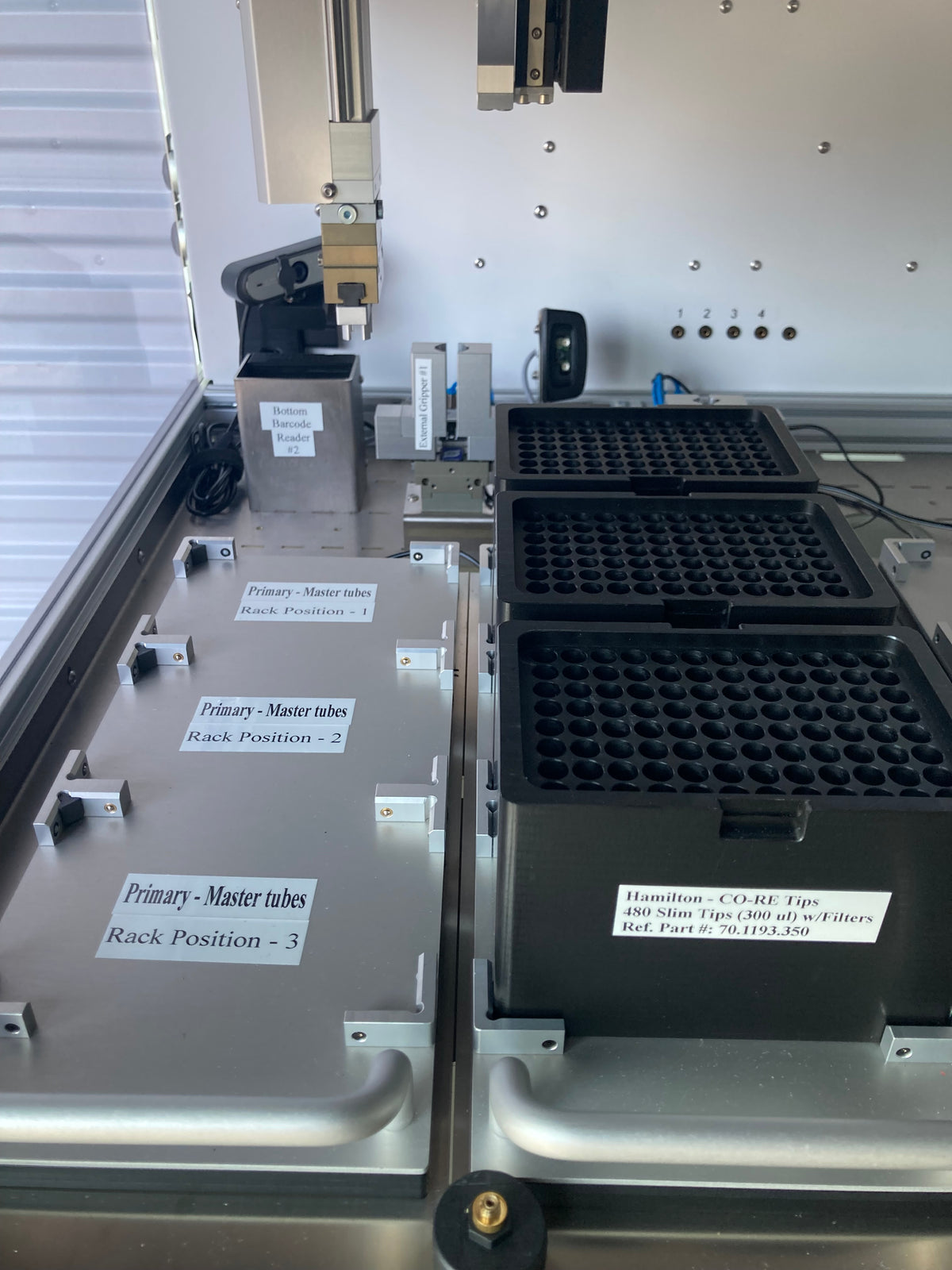

Supported Pipette Tips Optimised for 300 µl slim and 1,000 µl volume ranges

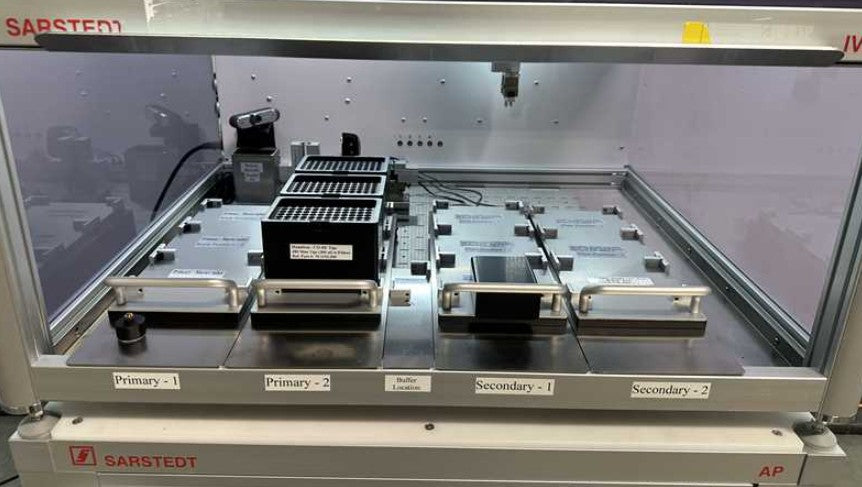

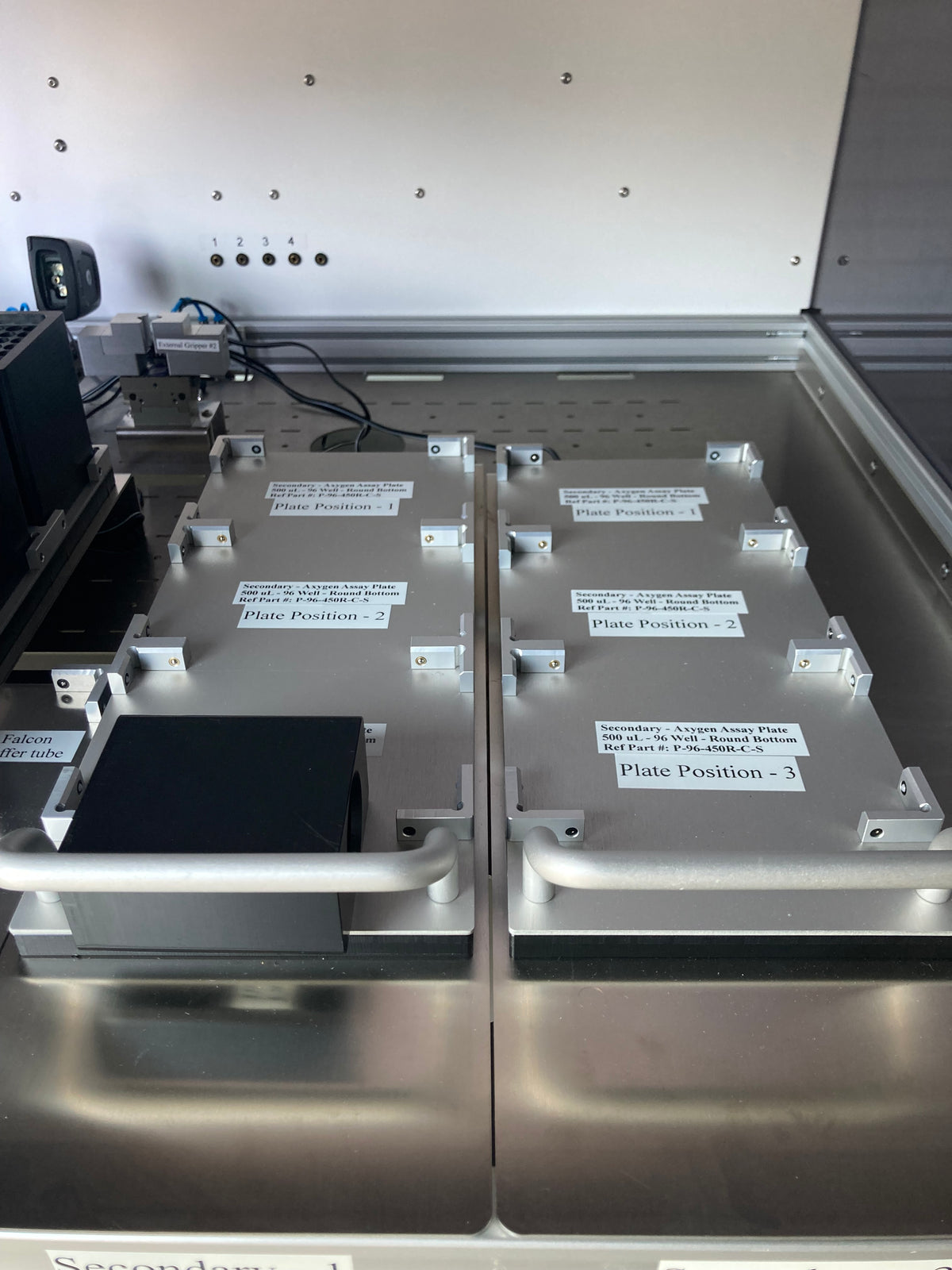

Tube Compatibility Primary: 10–28 mm diameter | Secondary: 10–25 mm diameter
Tube Lengths Handles containers from 30 mm up to 120 mm in height
Process Automation Capable of simultaneous automated cap screwing/unscrewing during transport
System Integration & Functions

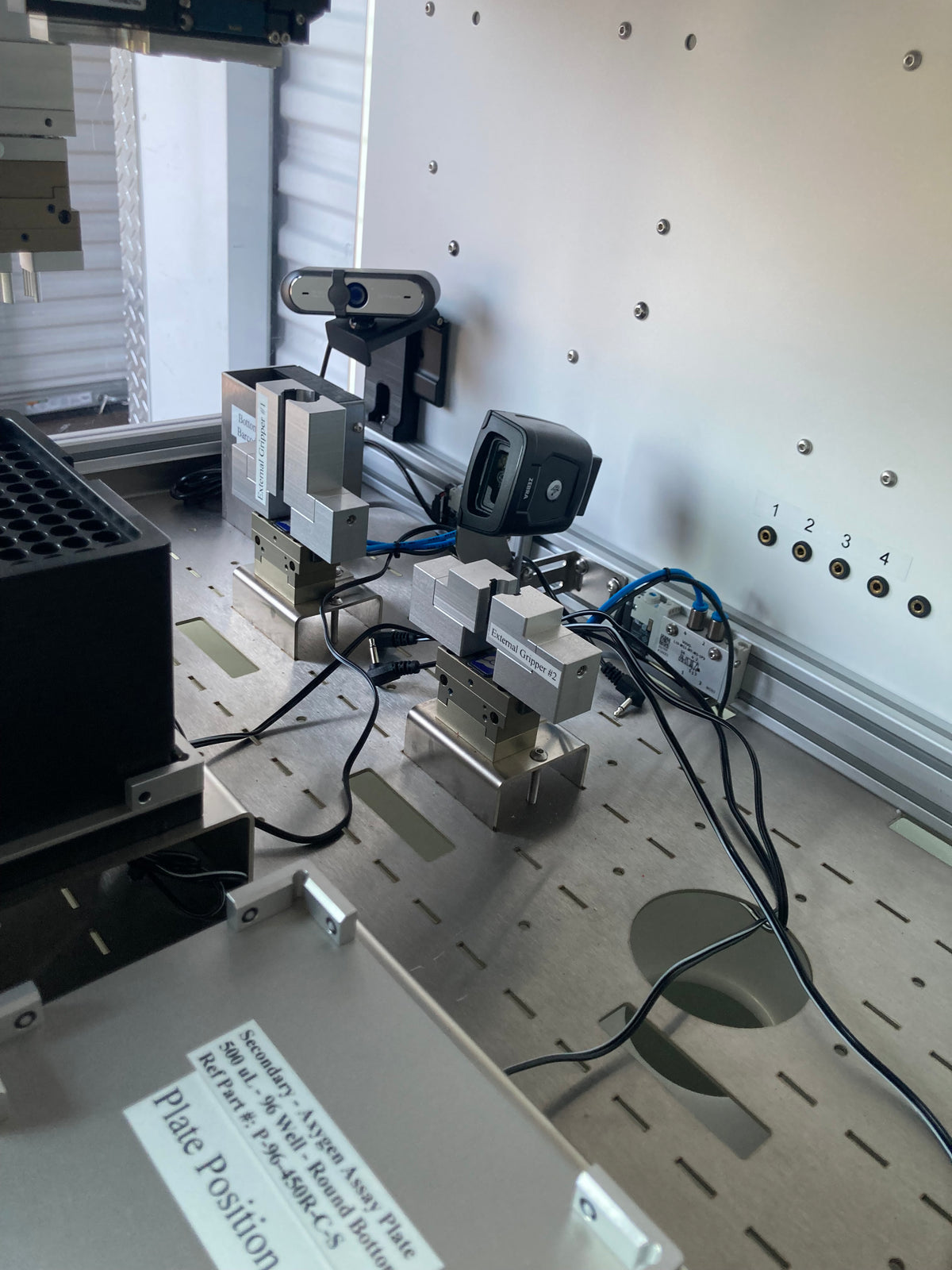

· Duplex Lifter: Enables swift opening and closing of containers. It handles screw-cap micro tubes, cryotubes, or custom falcon-style containers

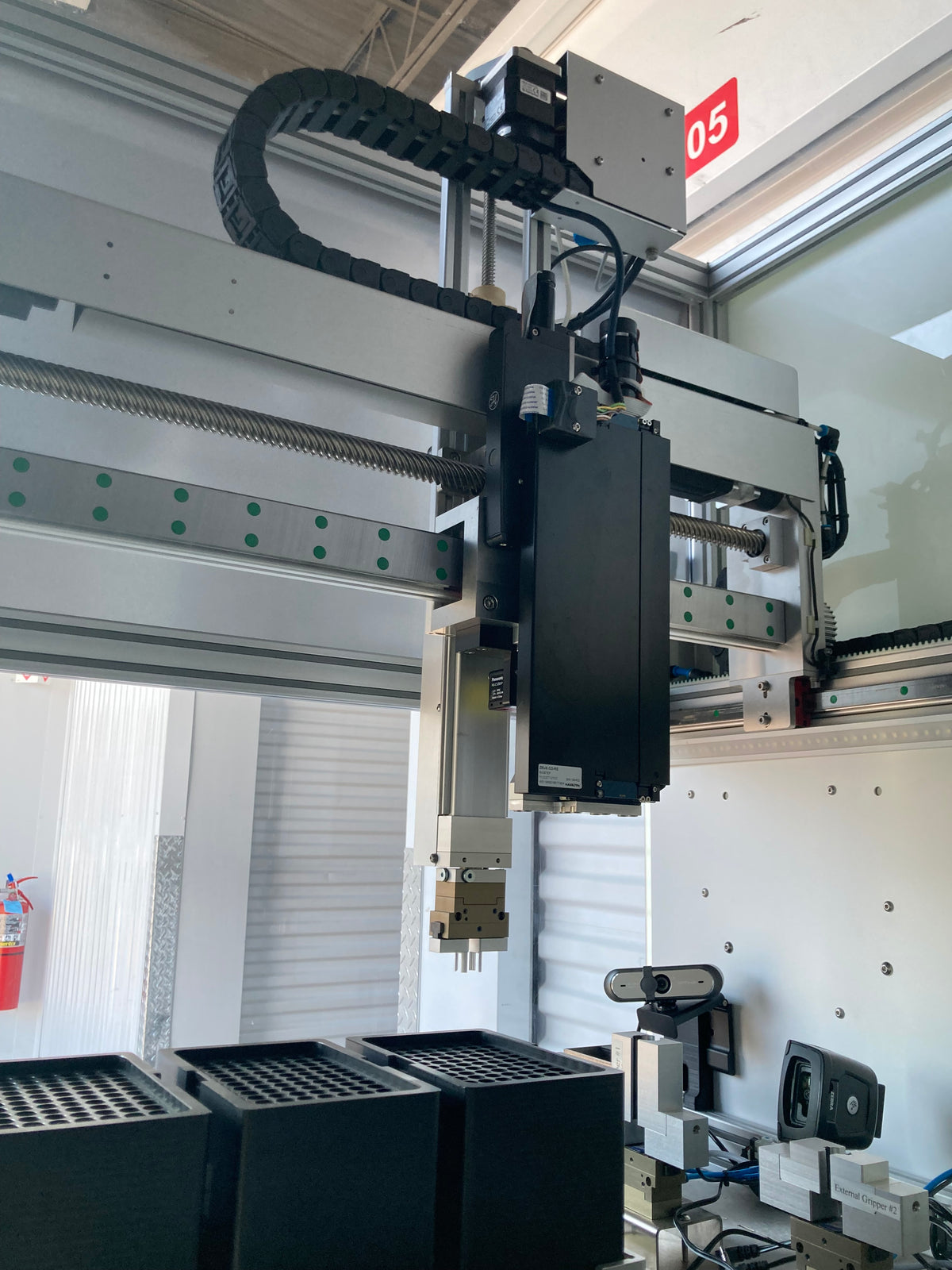

· Integrated Tracking: Built-in 1D/2D scanners rotate tubes inside the gripper arm to record barcodes/data matrices on the fly, providing clean traceability logs.
· Optional Modules: Can be upgraded with automated bulk tube feeders (500-piece capacity) or precision analytical scales for real-time weight documentation.
