Description
Bio-Rad PX1 PCR Plate Sealer

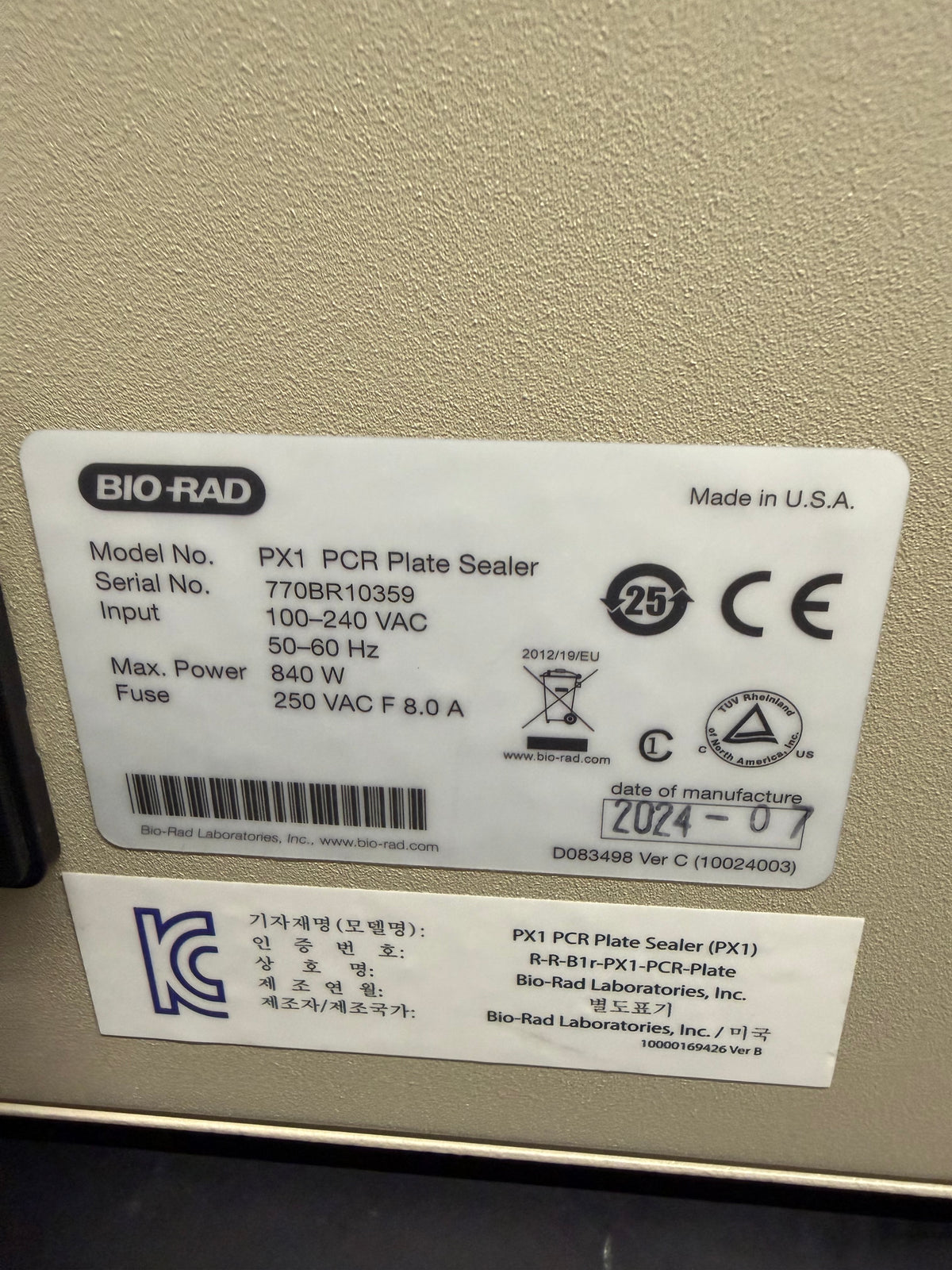

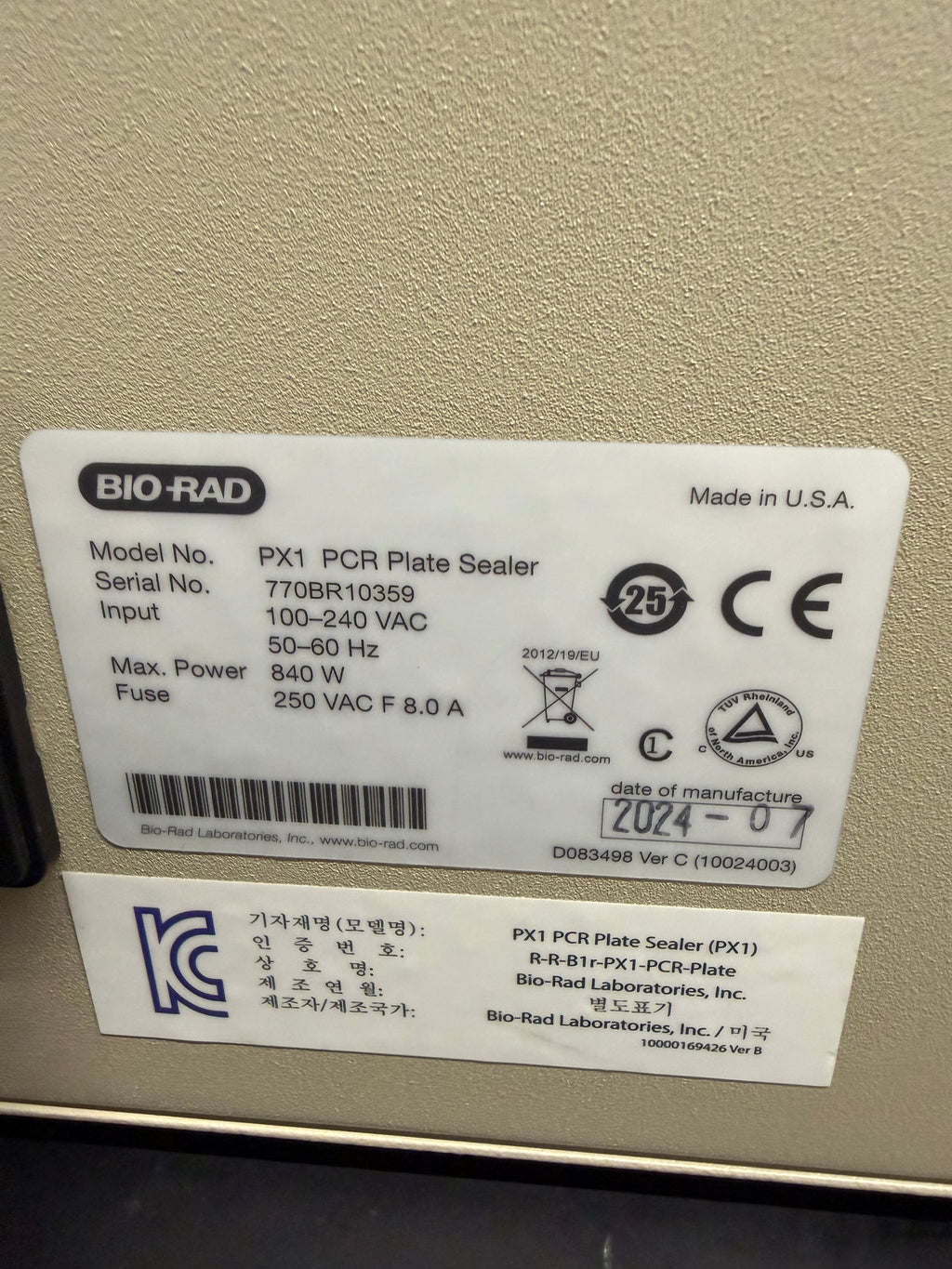

S/N: 770BR10359
Date of Manufacture: 2024-07
The Bio-Rad PX1 PCR Plate Sealer is a semi-automated heat sealer designed to eliminate human variability and minimize sample evaporation during thermal cycling. It features a fast warm-up time of under 3 minutes, a 100–190°C temperature range, and an intuitive color touchscreen.
Key Features and Benefits
Fast Startup: Reaches optimal sealing temperature in less than 3 minutes, avoiding experiment delays.

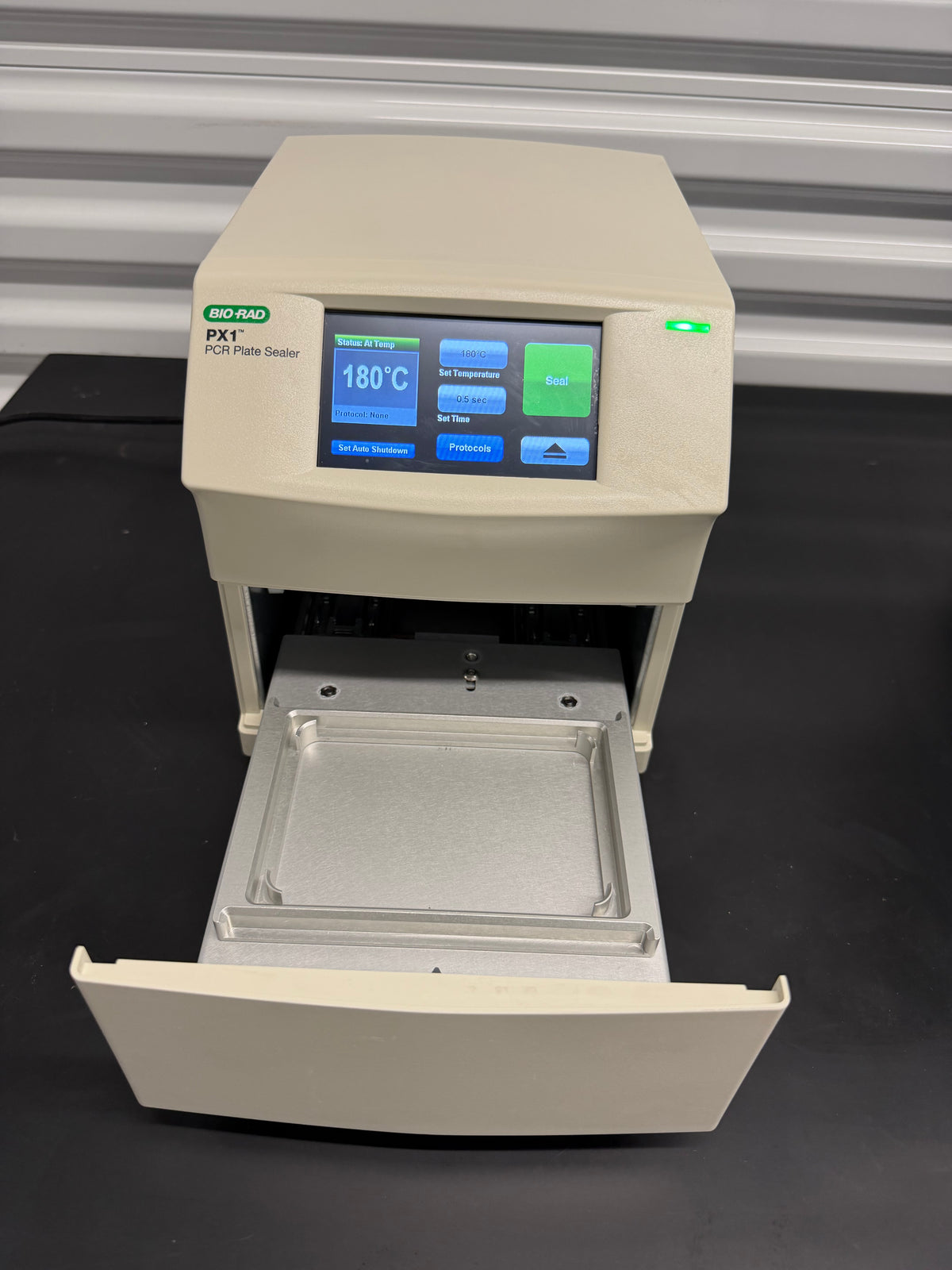

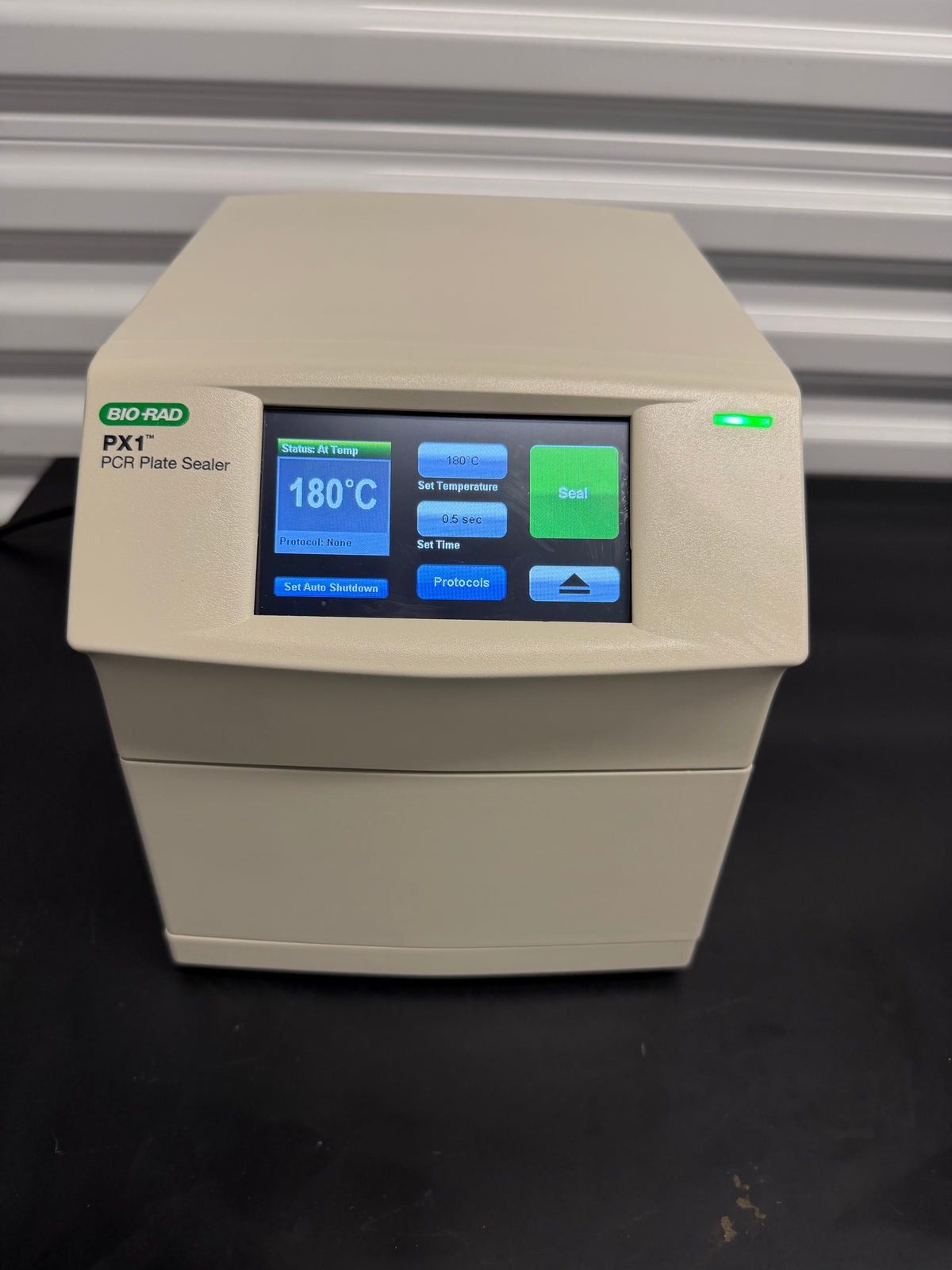

Intuitive Interface: A 4.3" color touchscreen allows for single-button modification of sealing temperature (100–190°C) and time (0.5–10 seconds).

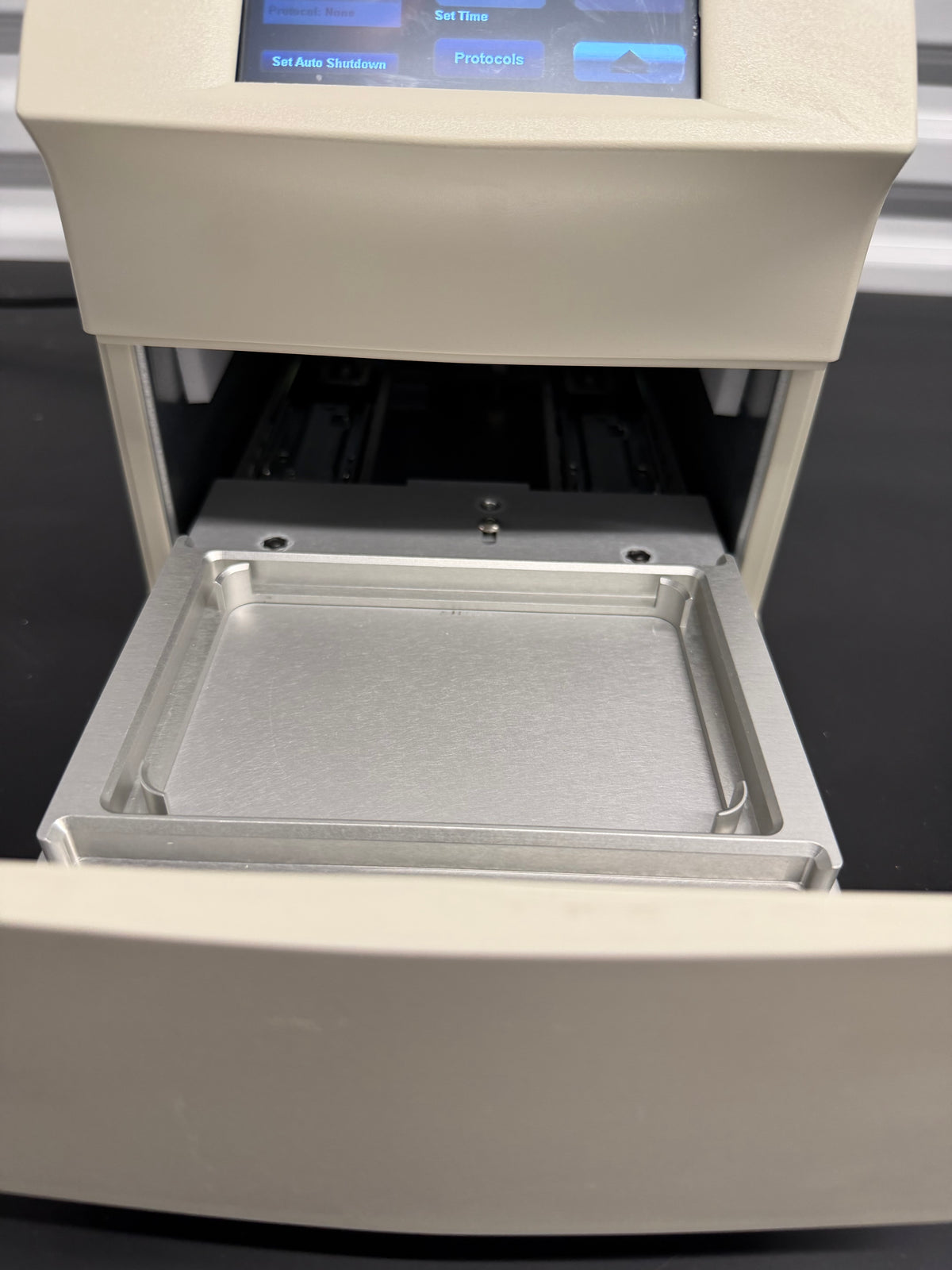

High Versatility: The built-in support block accommodates both 96-well and 384-well plates without needing extra accessories.
Broad Compatibility: Works with a wide variety of heat-sealing films (e.g., optically clear, pierceable) and foils across standard, low-profile, and deep-well PCR plates.
Compact Design: Features a small footprint to easily fit on crowded laboratory benches.
Dimensions (W x D x H): 19.2 × 24.8 × 21.9 cm (7.6 × 9.8 × 8.6 in)
Weight: 7.3 kg (16 lbs.)
Display: 10.9 cm (4.3 in) color touch screen
Sealing Time: Adjustable from 0.5 to 10.0 seconds
Power Requirements: 100–240 VAC, 50–60 Hz, 840 W
