Description

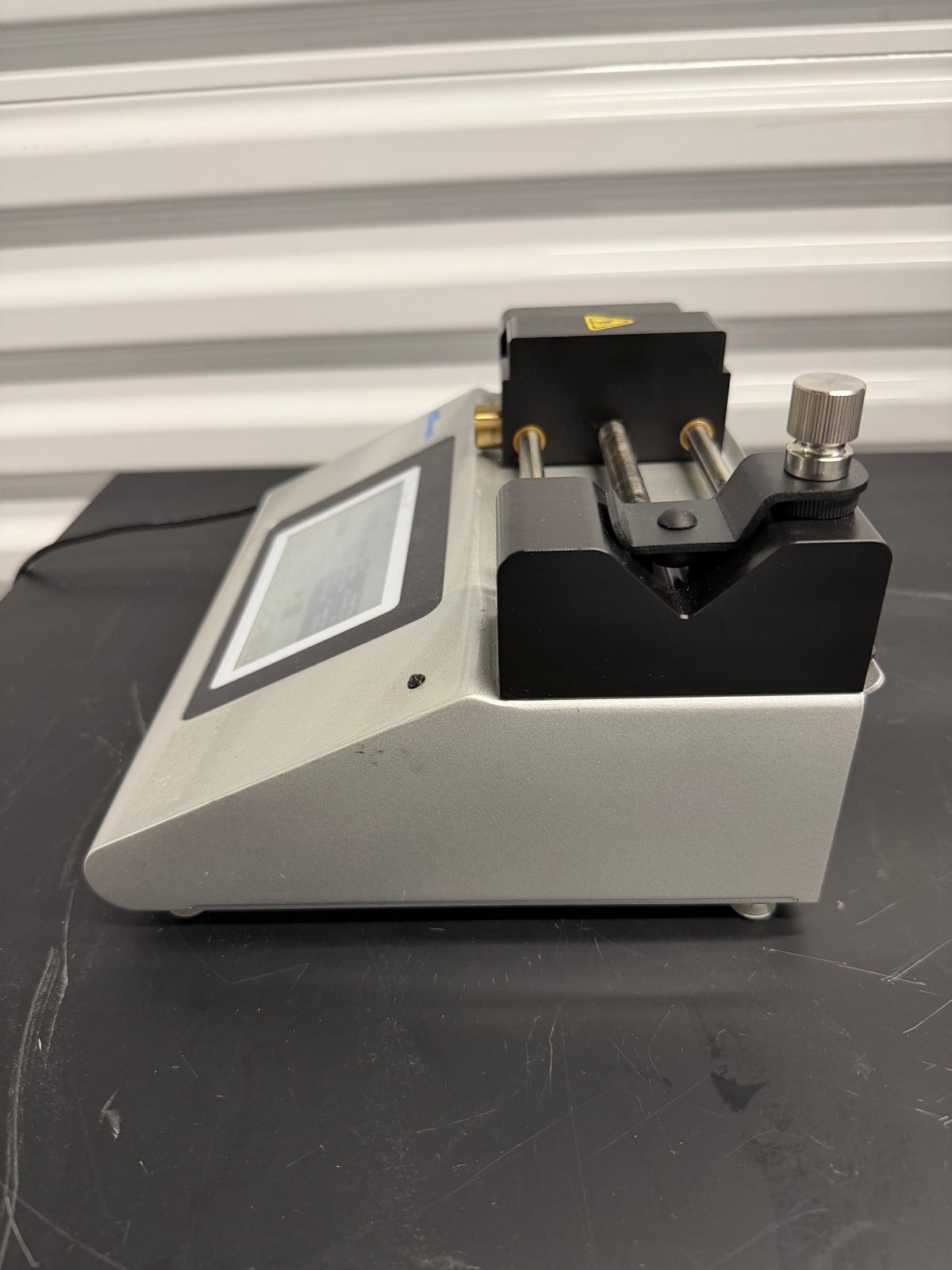

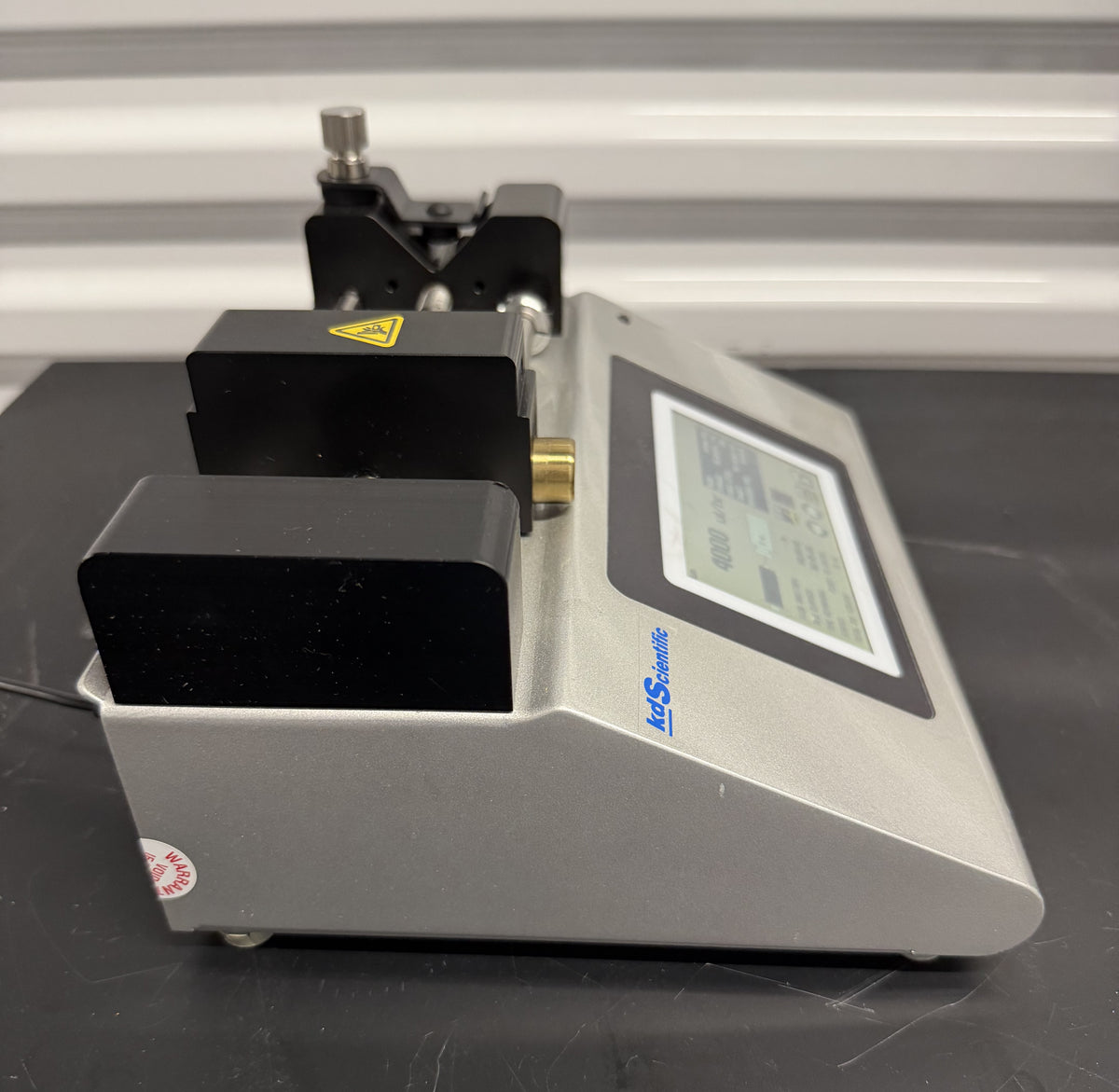

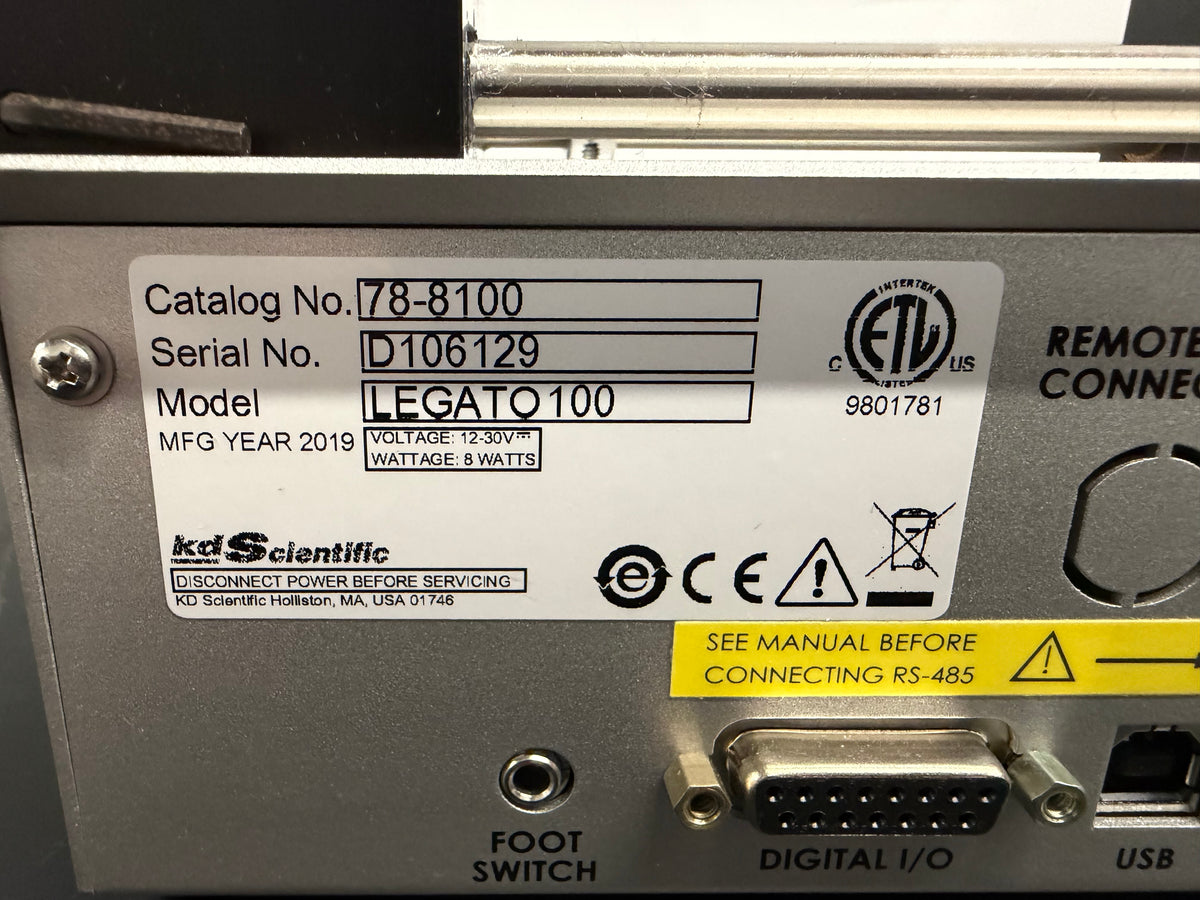

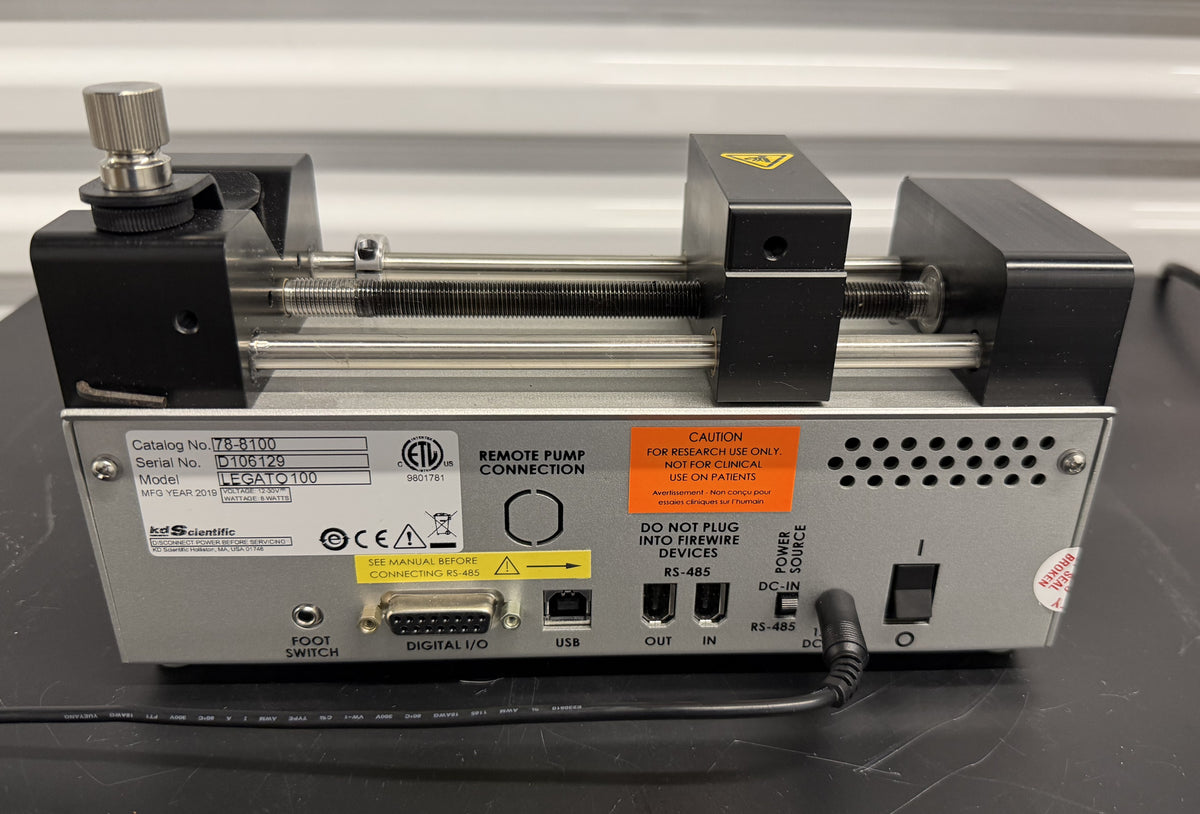

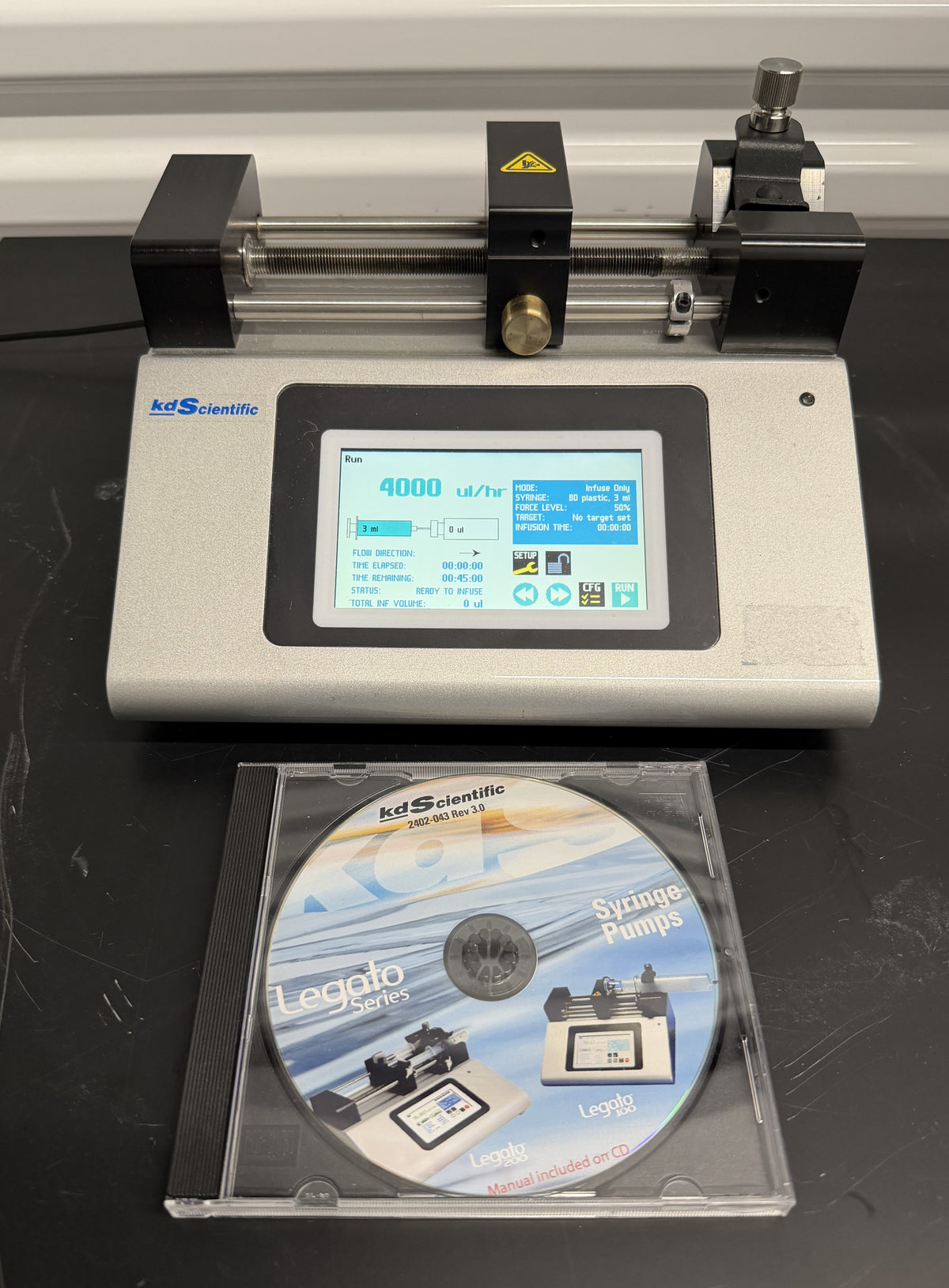

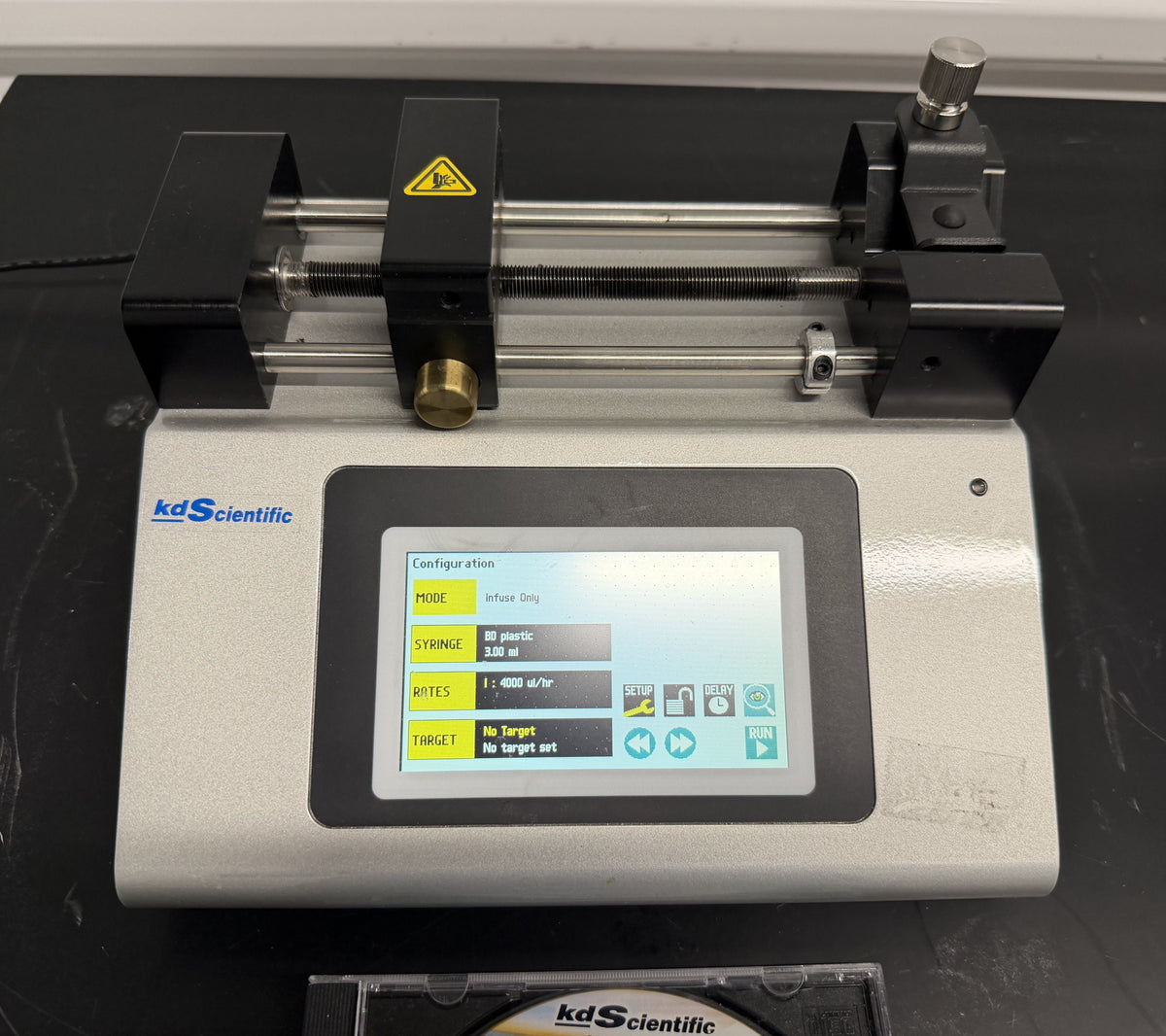

KD Scientific Legato 100 Syringe Pump 788100 Catalog Number 78-8100 Serial Number D106129 Model LEGATO 100 MFG YEAR 2019 The KD Scientific Legato 100 (Order Code: 788100) is an entry-level, infuse-only single syringe pump. It is designed for laboratory research and provides highly accurate fluid delivery using an intuitive color touch screen interface. Key Features Touch Screen Interface: A 4.3-inch color display shows all working settings, syringe sizes, flow rates, and elapsed time. Wide Flow Range: Delivers fluids at user-defined rates ranging from 1.26 picoliters per minute up to 88.32 milliliters per minute. Syringe Versatility: Holds one syringe ranging in size from 0.5 μL up to 60 mL. Smooth Flow Performance: Uses advanced microstepping motor techniques to eliminate flow pulsing. Rugged Build: Constructed with a full metal chassis and an integrated spill dam to protect the interior electronics. Flexible Footprint: Can be operated vertically on its side to save counter space in cramped labs. Connectivity: Features built-in USB, RS485, and TTL ports so multiple pumps can be linked together in a network. Technical Specifications Accuracy: ±0.5% Reproducibility: ±0.05% Linear Force: Up to 30 lbs (13.6 kg) Syringe Sizes: 0.5 μL to 60 mL Dimensions: 9 x 7.5 x 5 inches (22.6 x 19.05 x 15 cm) Weight: 5.9 lbs (2.66 kg) Power Supply: 100–240 VAC, 50/60 Hz
