Description

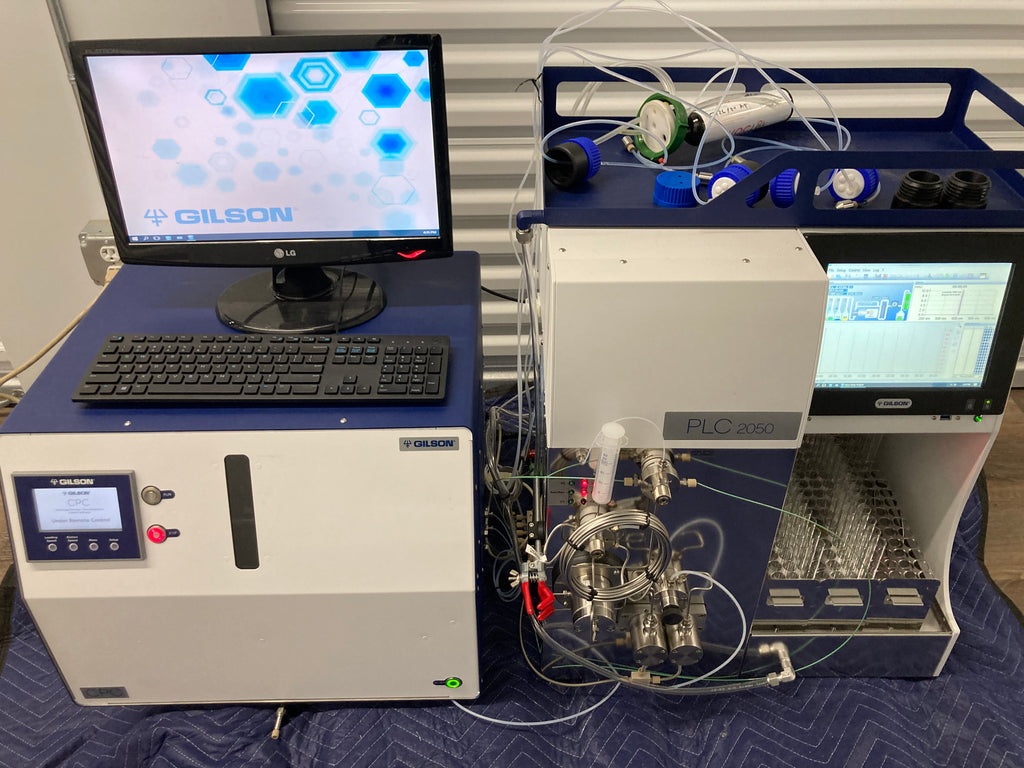

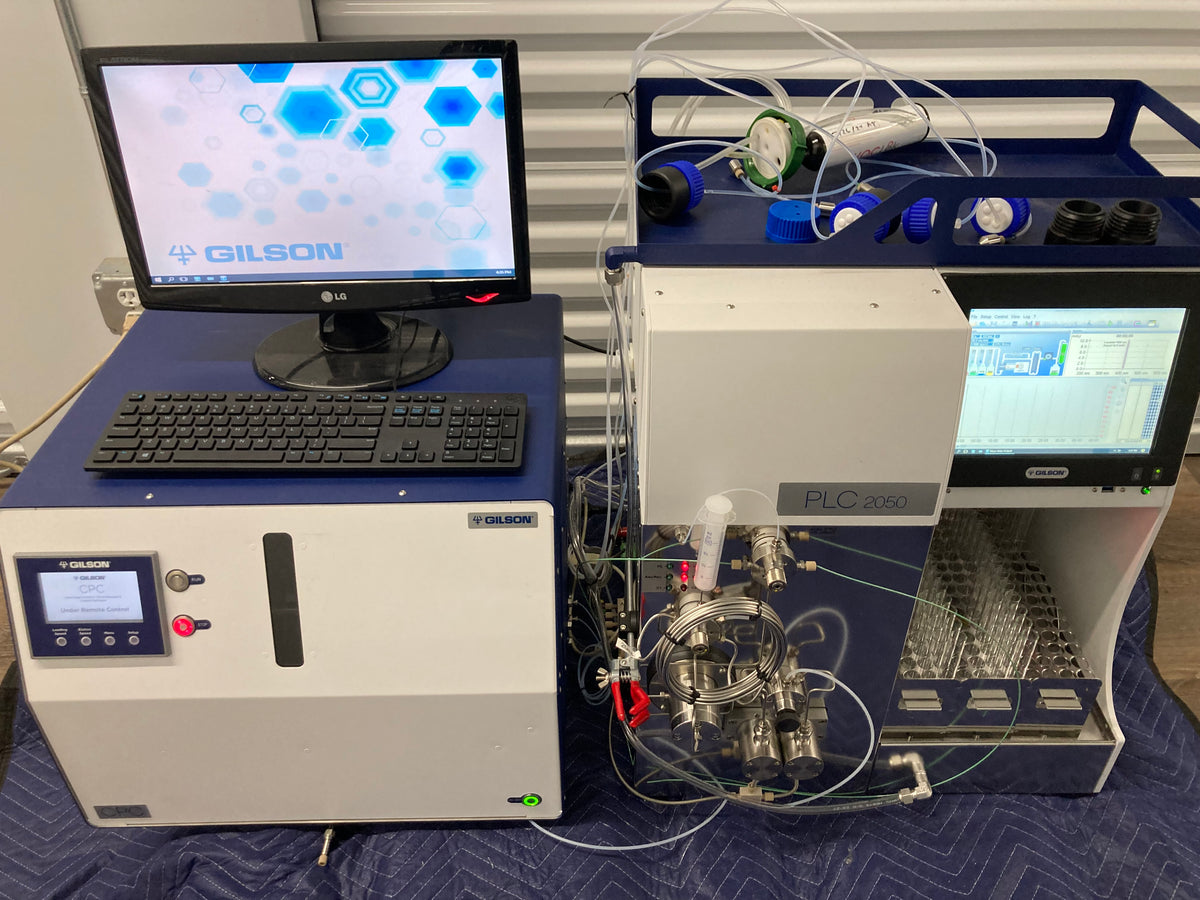

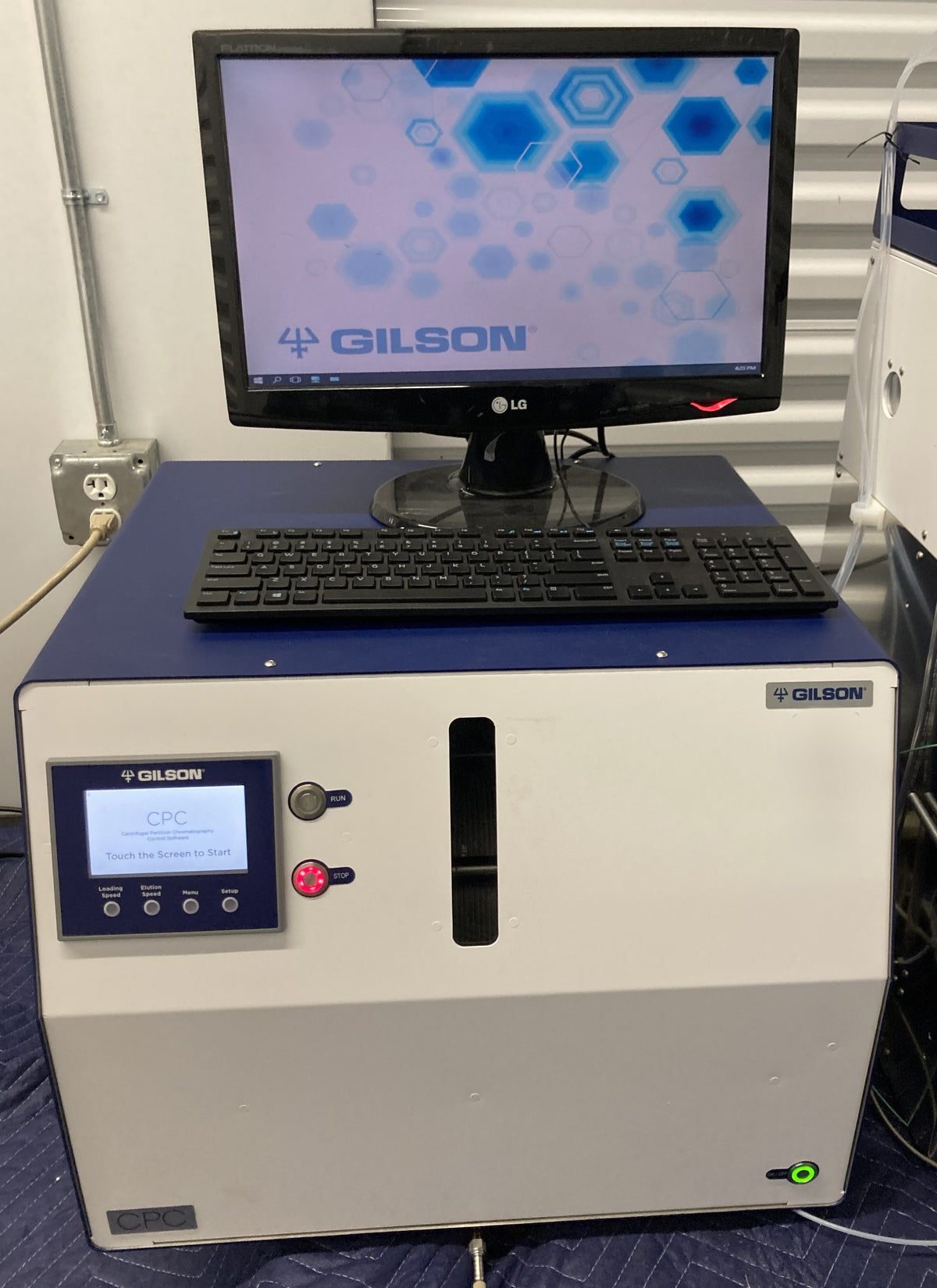

Gilson PLC 2050 Purification System paired with a CPC 250 Centrifugal Partition Chromatography Column- Manufactured in 2022 The Gilson PLC 2050 is a versatile preparative liquid chromatography (PLC) system and the Gilson CPC 250 is a centrifugal partition chromatography (CPC) column that is used as an alternative separation module with the PLC system.
The PLC 2050 provides the pump, detector, and software to run various types of chromatography, including the CPC 250 column. The PLC 2050 and CPC 250 are often used in combination as a complete, automated solution for specific purification tasks, especially in natural product chemistry.
The PLC 2050 provides the necessary pumping, injection, and detection capabilities, while the CPC 250serves as the specialized column for the separation process. This combined system allows for high-purity purification of complex samples without the need for traditional silica columns.

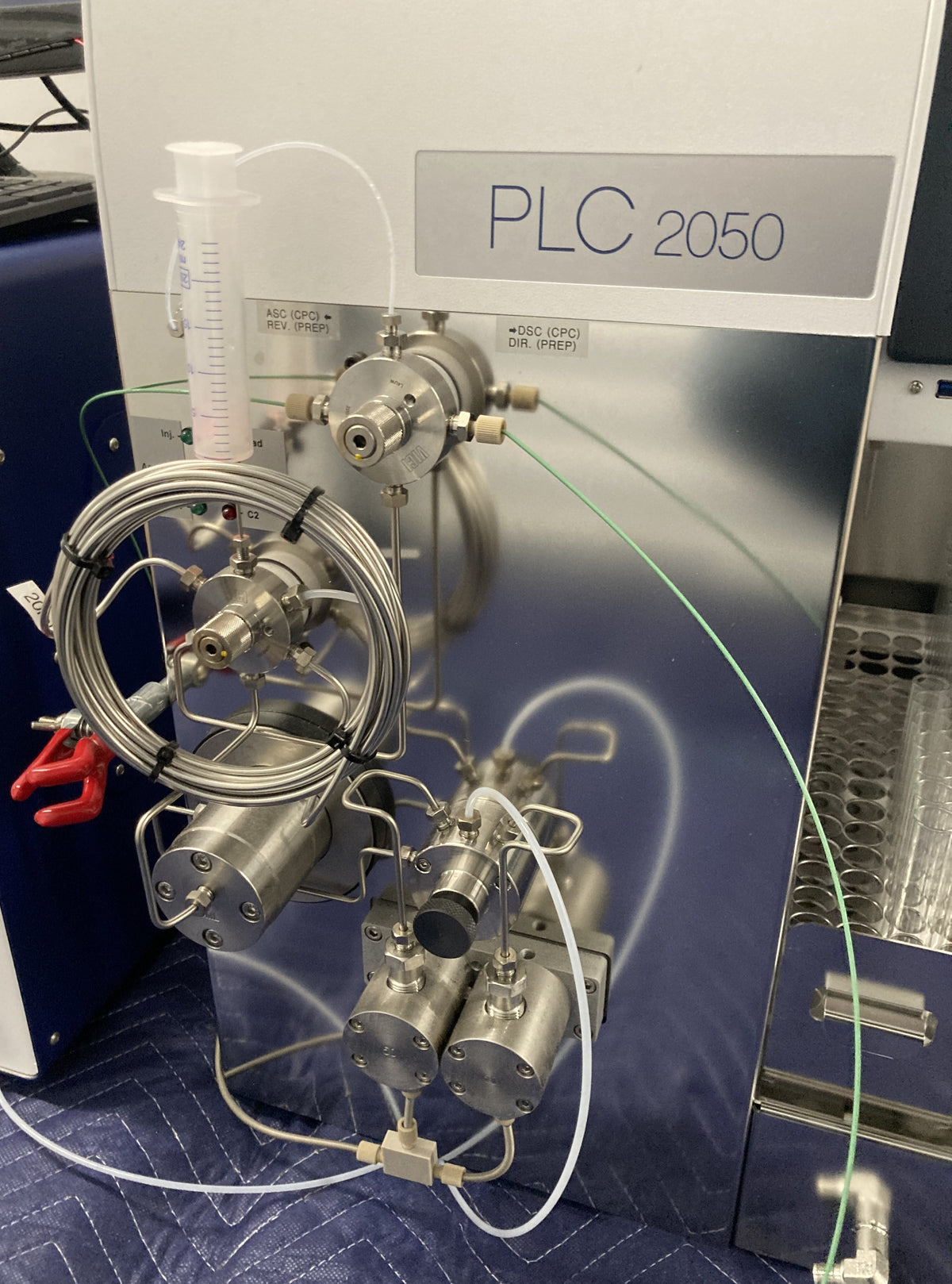

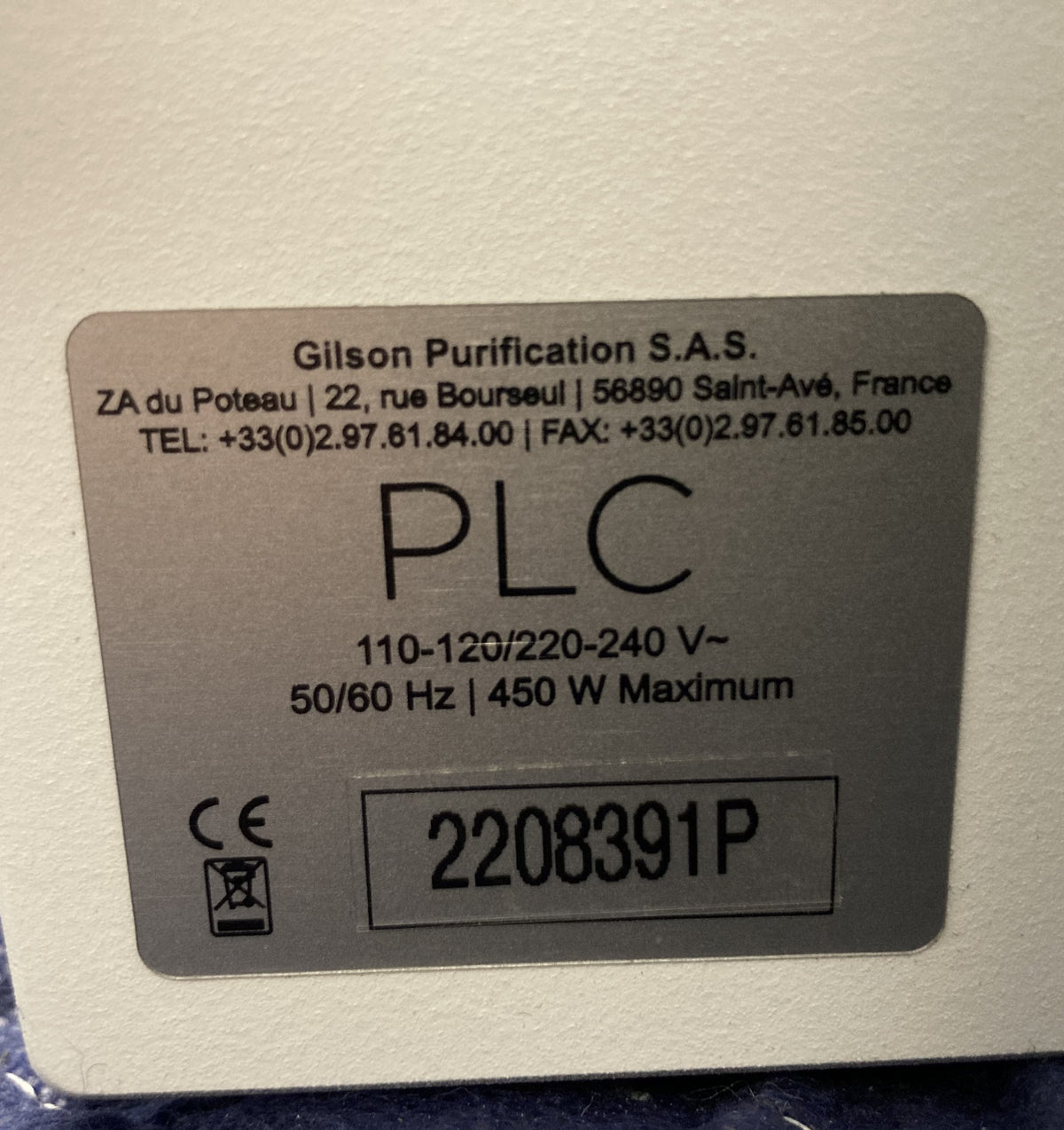

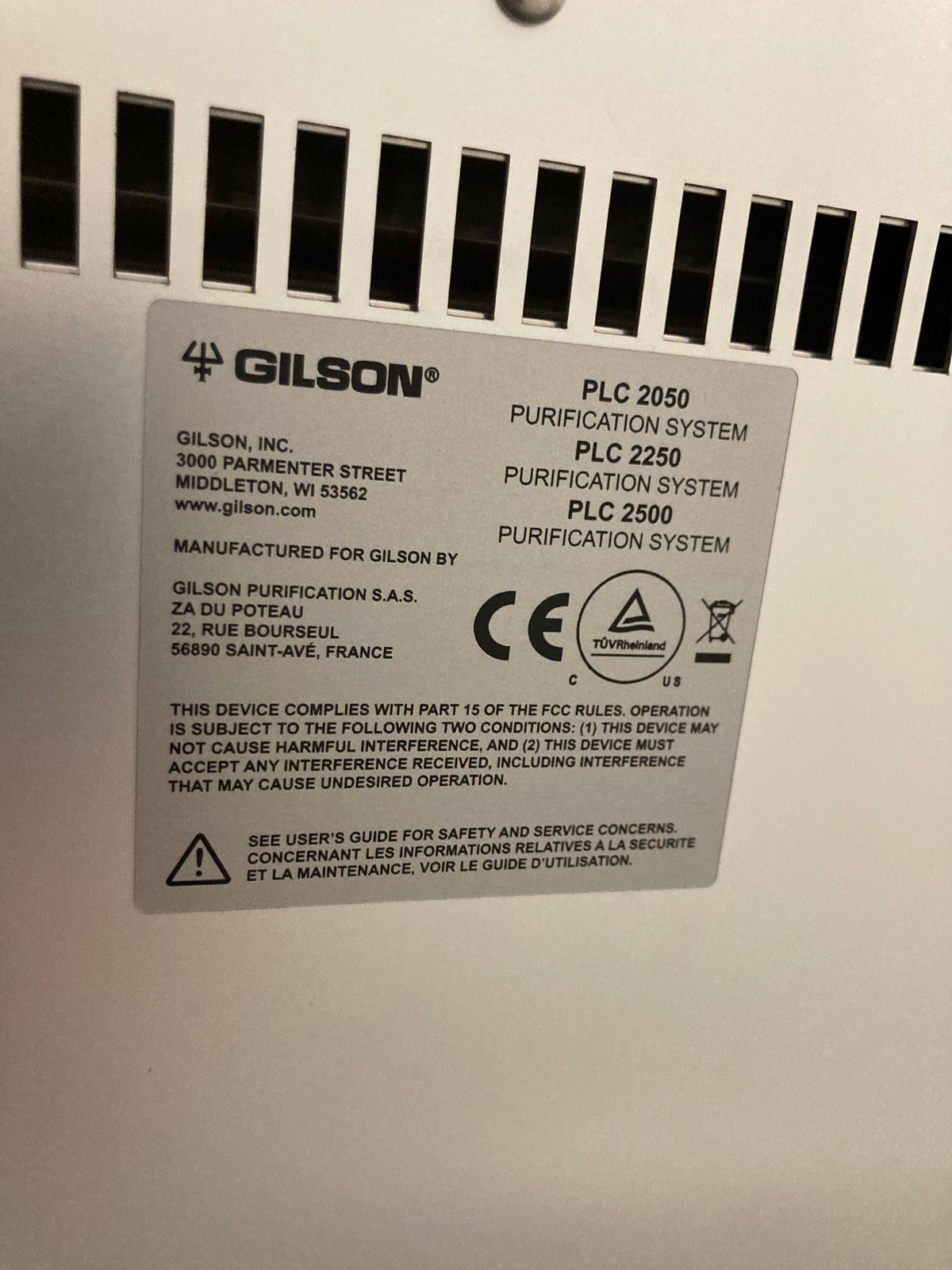

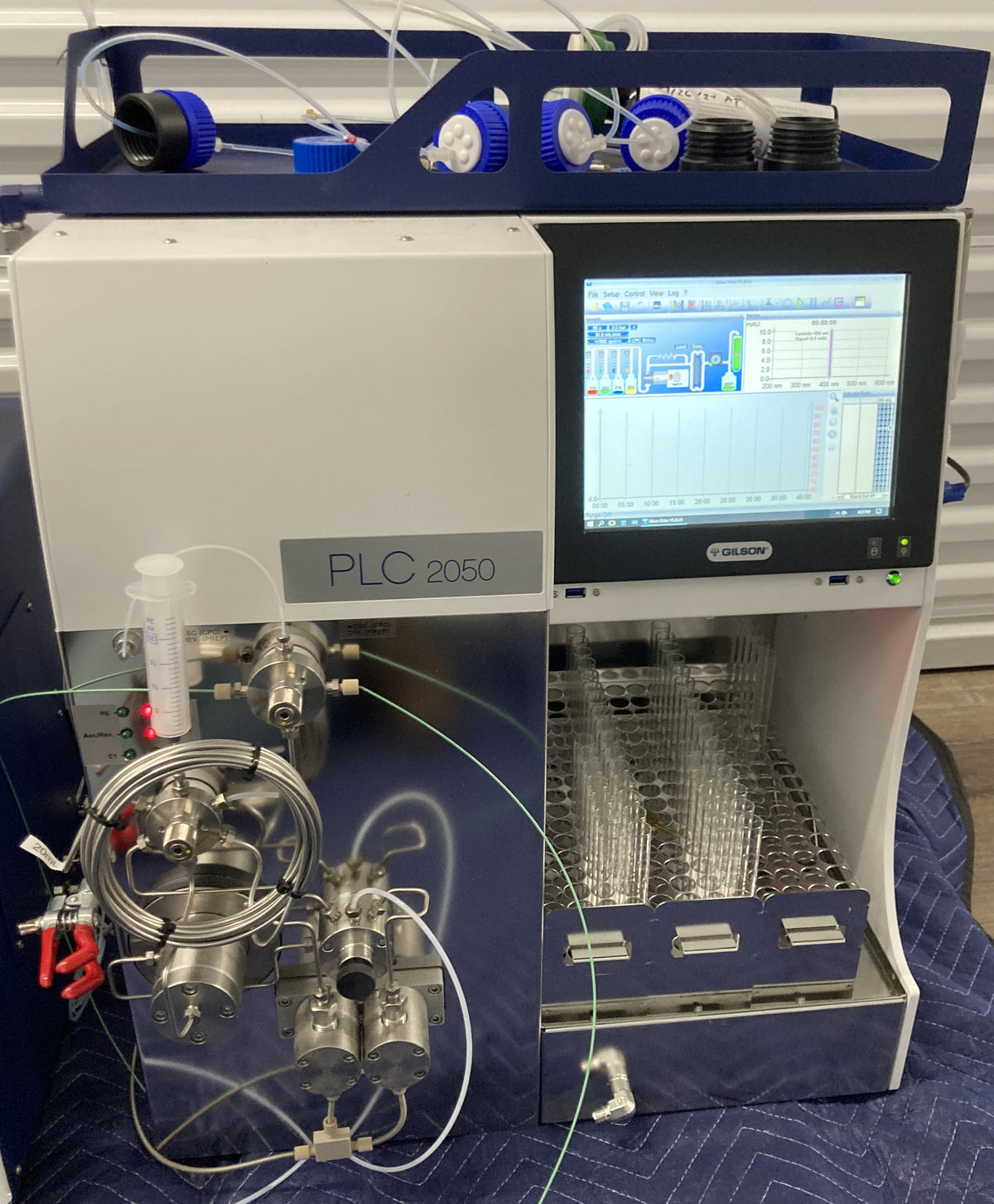

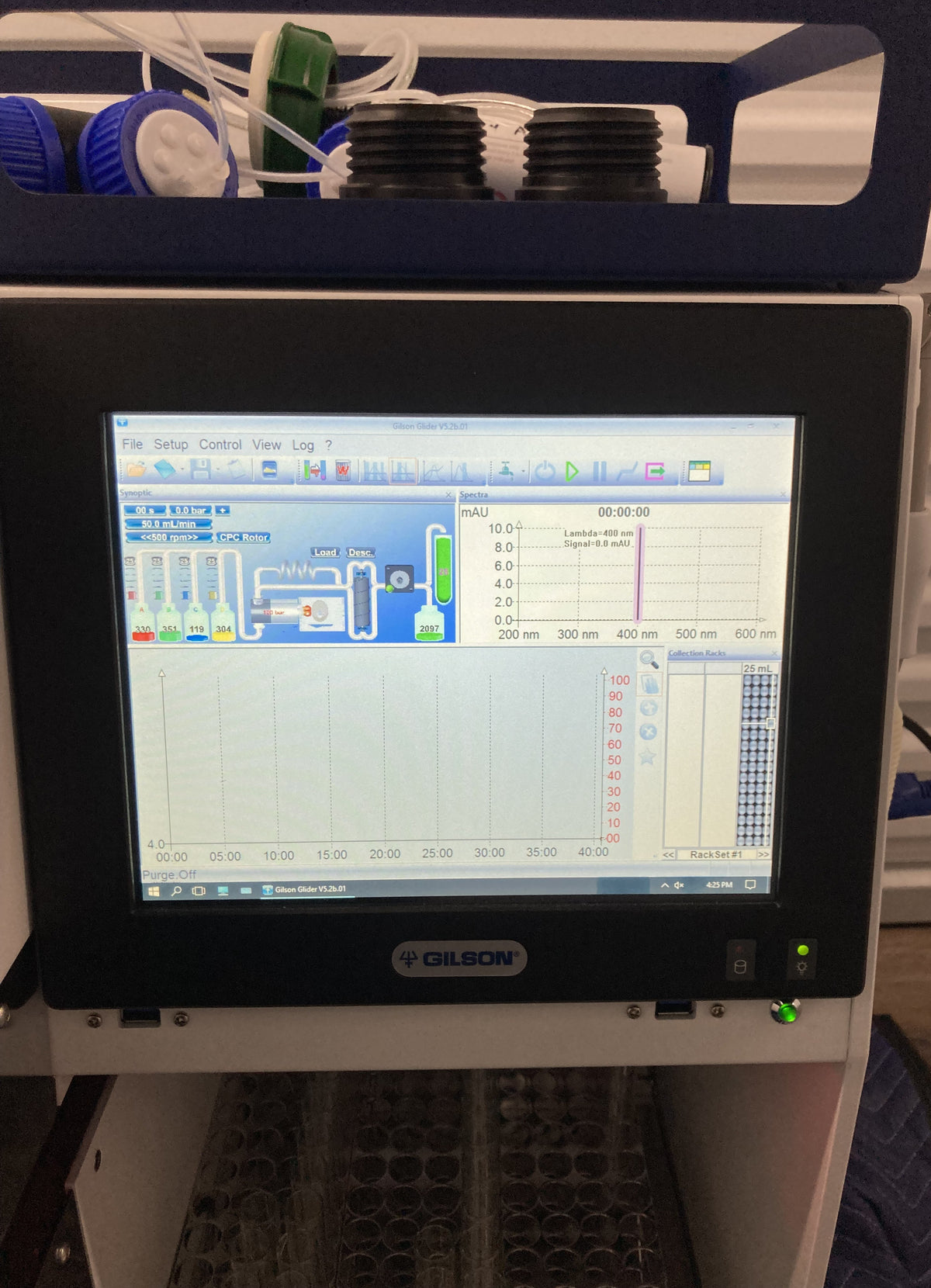

Gilson PLC 2050 Specifications : Gilson PLC 2050 Part Number 2114000 Serial Number 2208391P Flow Rate : Up to 50 mL/min. Maximum Pressure : Up to 300 bar (4351 psi). Detection : Features UV/VIS detection with optional upgrades to a diode array detector (DAD) or evaporative light scattering detector (ELSD). Automation : Can be configured with a VERITY GX-241 Liquid Handler for automated sample injections. Software : Uses Gilson Glider Prep Software for control, method development, and data analysis. Flexibility : Allows users to switch between different column types (HPLC, flash, CPC) using the same system. Weight: Approximately 65 kg (143 lbs)

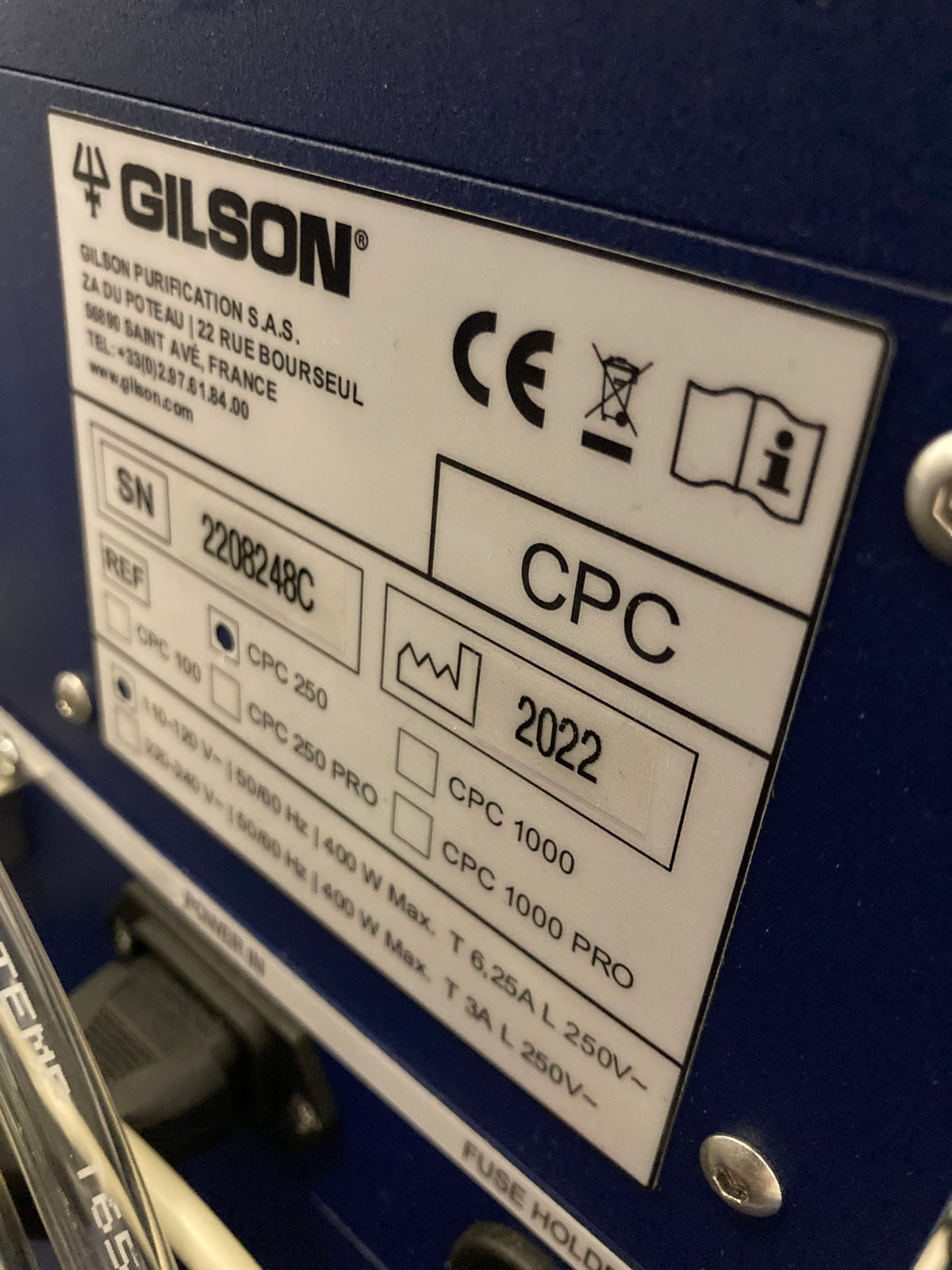

Gilson CPC 250 Specifications CPC 250: Part Number 21141002 Serial Number: 2208248C Column Capacity: 250 mL Column capacity Injection Range: Up to 6 g Typical Flow Rate: Up to 15 mL/min Maximum Pressure: 100 bar (1450 psi) Maximum Rotation Speed: 100–3000 rpm (1–685 g) Weight: 70 kg (154 lbs.)
