Description
Distek Opt-Diss 405 is an in-situ UV fiber optic dissolution testing system designed for the pharmaceutical industry. By utilizing fiber optic cables and specialized probes directly inside the dissolution vessels, it eliminates the need for conventional TRUE sample removal, filtering, and media-loss calculations.

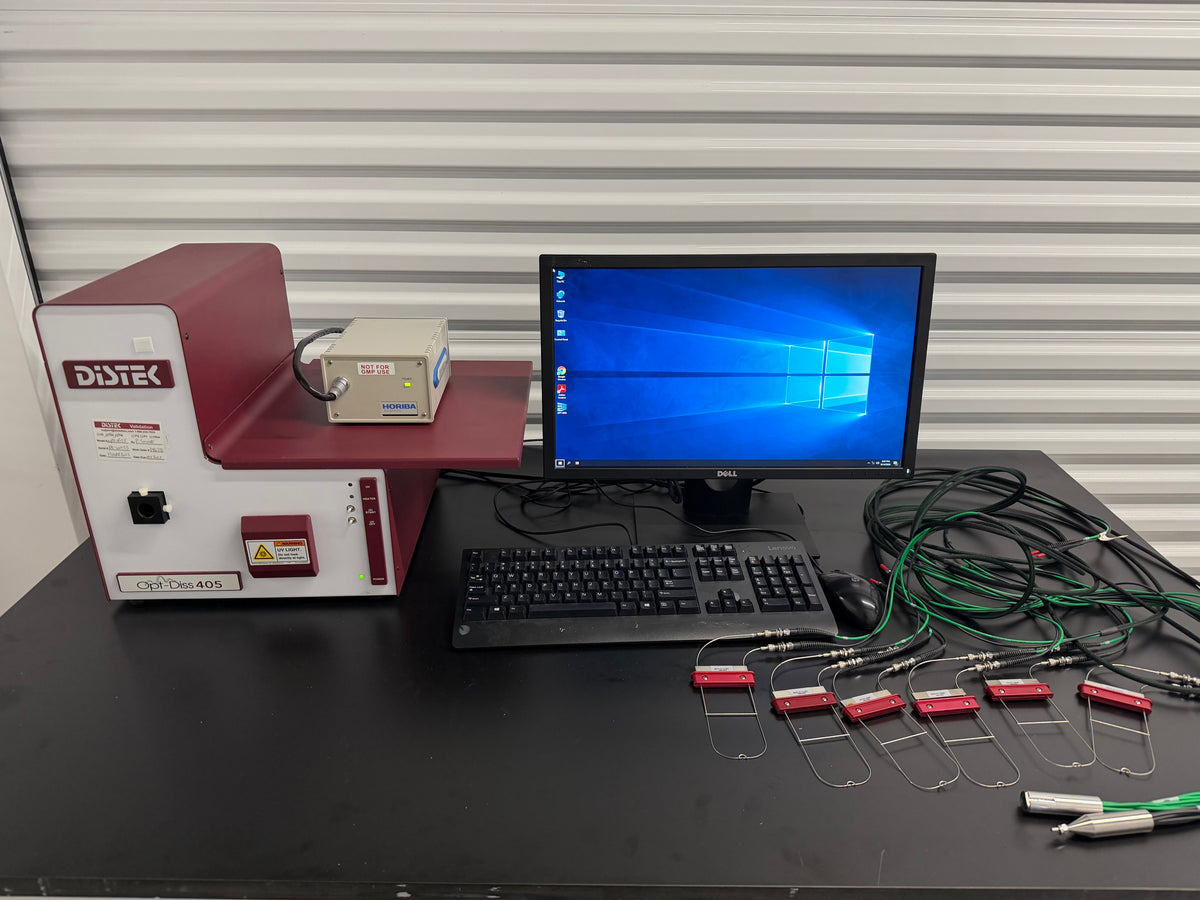

Included items are:
· (1) OPT-DISS 405 in-situ UV fiber optic dissolution testing system S/N DI-10025
· (1) HORIBA Scientific Model 354010 Power Supply Unit S/N WS1842H-2614
· (1) Dell 3070 OptiPlex Intel I7 9thGen 2 2GHz, 64 Bit, 8 GB Ram Computer with Monitor KB & Mouse. (with access to pre-Loaded with OPT-DISS Software version 3.12.0)
· (6) Distek - 5900-0003, ARCH probes (1 mm pathlength)
· (1) 12 Channel Fiber Bundle SKU: 2500-0003
· (1) Hamamatsu Deuterium Lamp L6312-50ultraviolet (UV) light source/lamp (open box)
Key Features
In-Situ UV Measurement: Puts the analytical measurement directly in the vessel, improving testing precision and saving time by eliminating traditional manual or automated liquid sampling.
Patented Arch Probes: Features stationary resident "Arch Probes" that utilize a horizontal light pathlength. This eliminates the need for mirrors or prisms and prevents the particle and air bubble entrapment common in vertical dip probes.
Rapid Multi-Vessel Sampling: The system can sample from 6 vessels simultaneously with data collection speeds as fast as every 5 seconds, providing dense, high-quality data points for detailed dissolution profiles.
Scientific-Grade CCD Detector: Simultaneously collects the full UV spectrum from 200 to 405 nm (or 195 to 405 nm depending on configuration) for accurate baseline correction and unrestricted post-analysis calculations.
Universal Interface: Designed with universal connectivity to easily interface with most standard dissolution instruments without requiring additional hardware overhauls.
Regulatory Compliance: Supported by a user-friendly, secure software system that complies with 21 CFR Part 11 regulations for electronic records and audit trails
Dimensions:
· Distek Opt-Diss Main Unit 405 13” x 22.5” x 22” Weight 55 lbs.
· Horiba Power Supply (P/N 354010) 7.5” x 3.5” x 11.5” Weight 6 .5 lbs.
· Control PC & Monitor (Typical) 7.0” x 14.5” x 17.0” Weight 22 lbs.
