Description

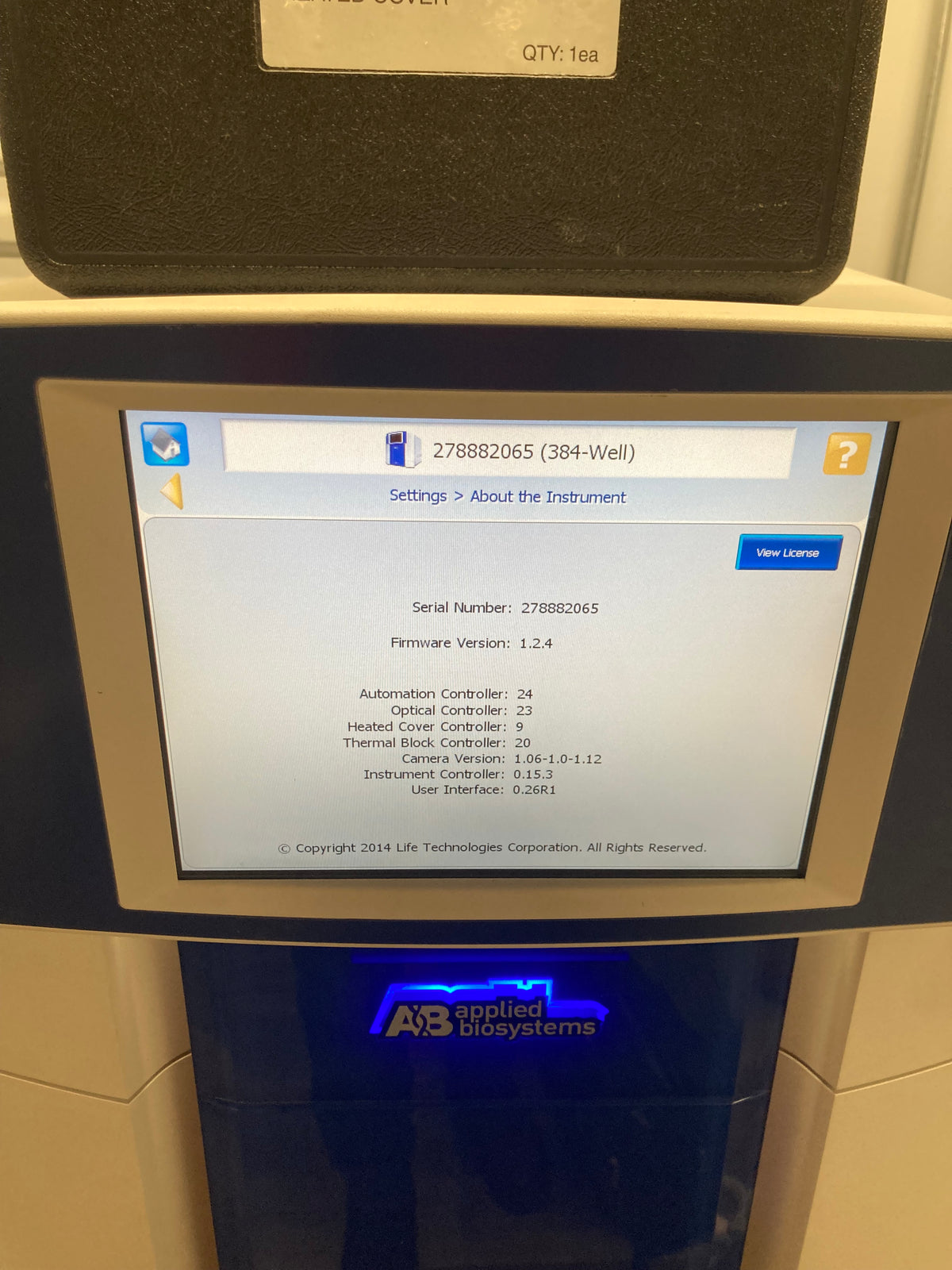

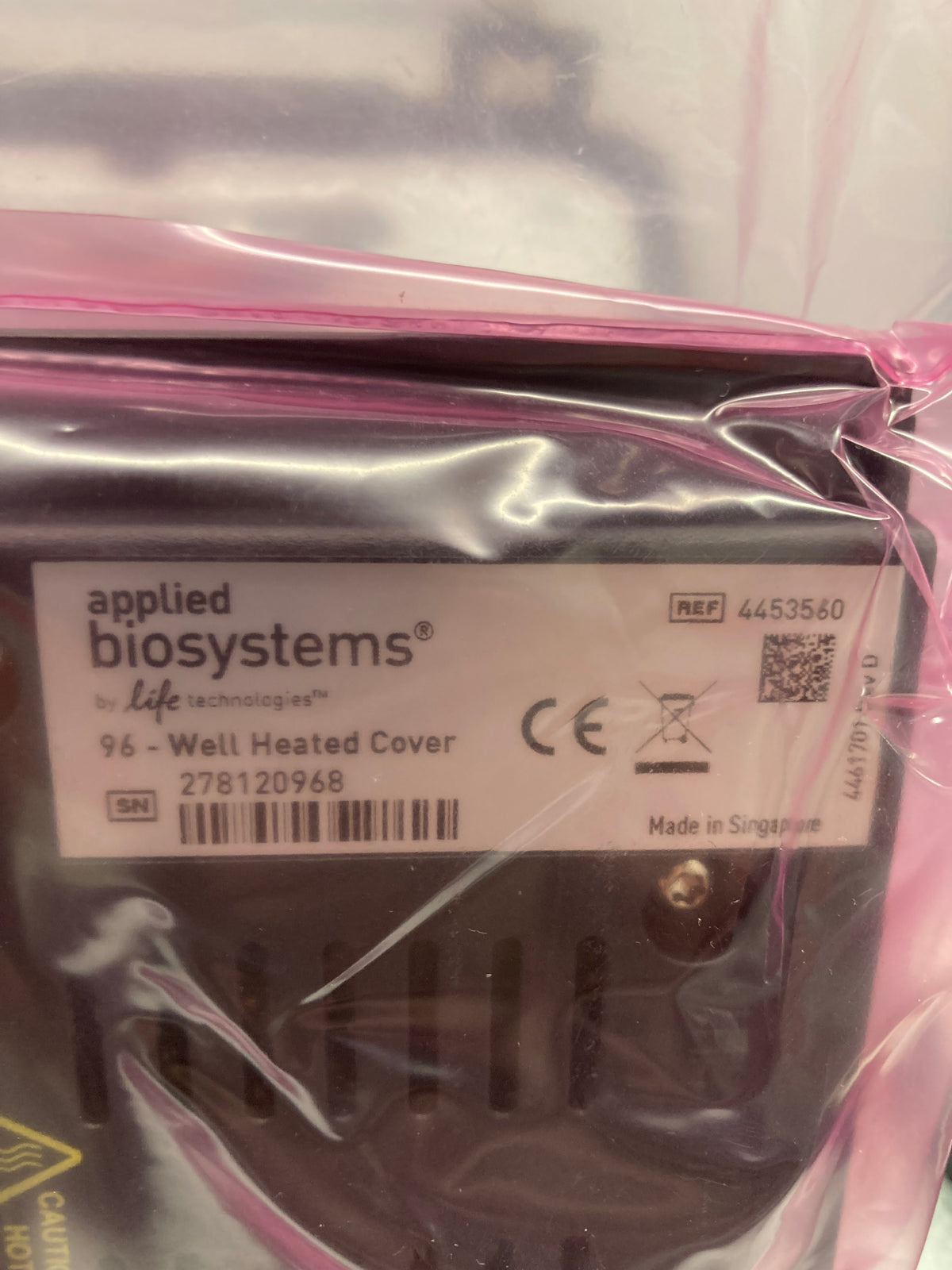

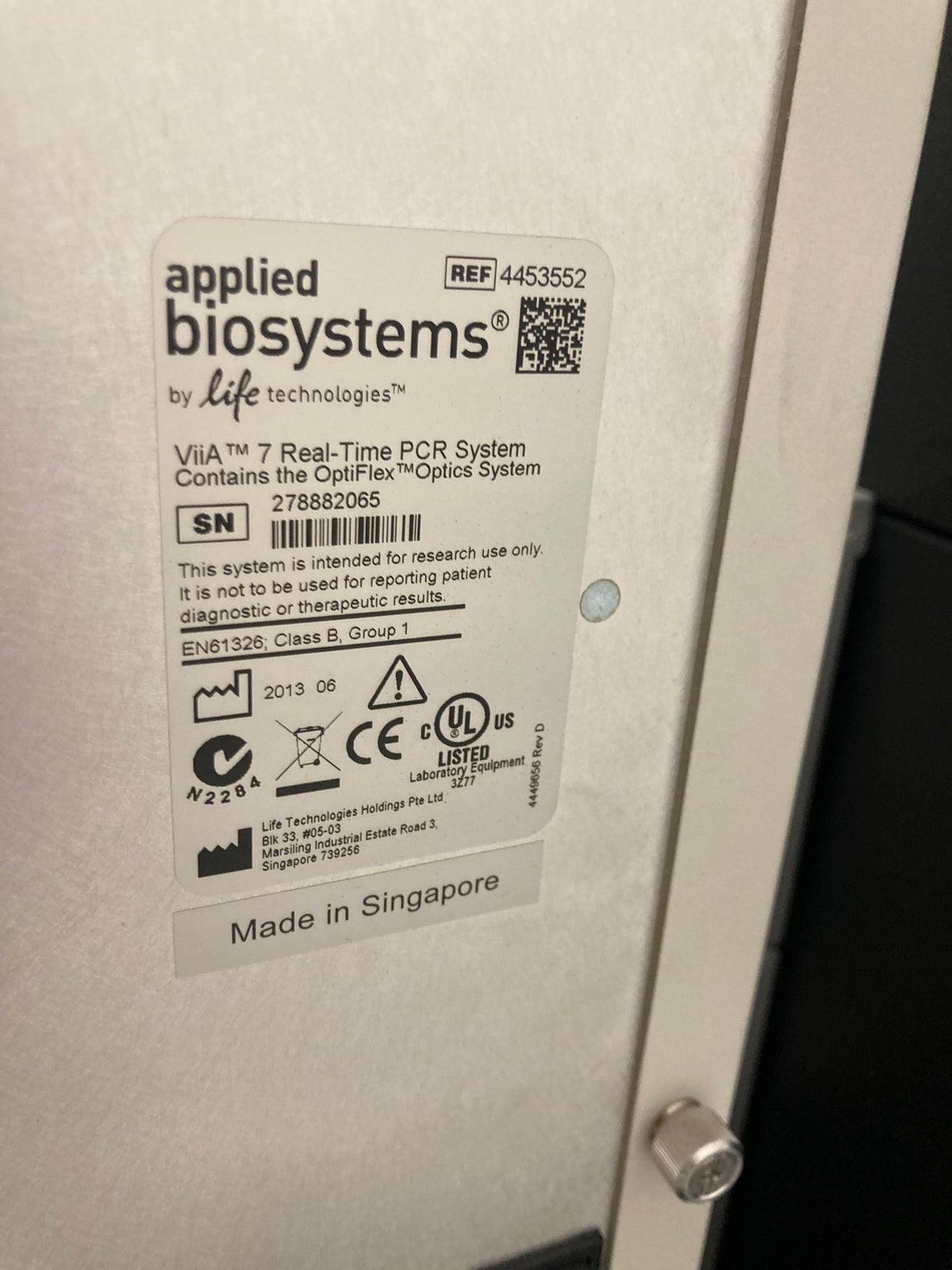

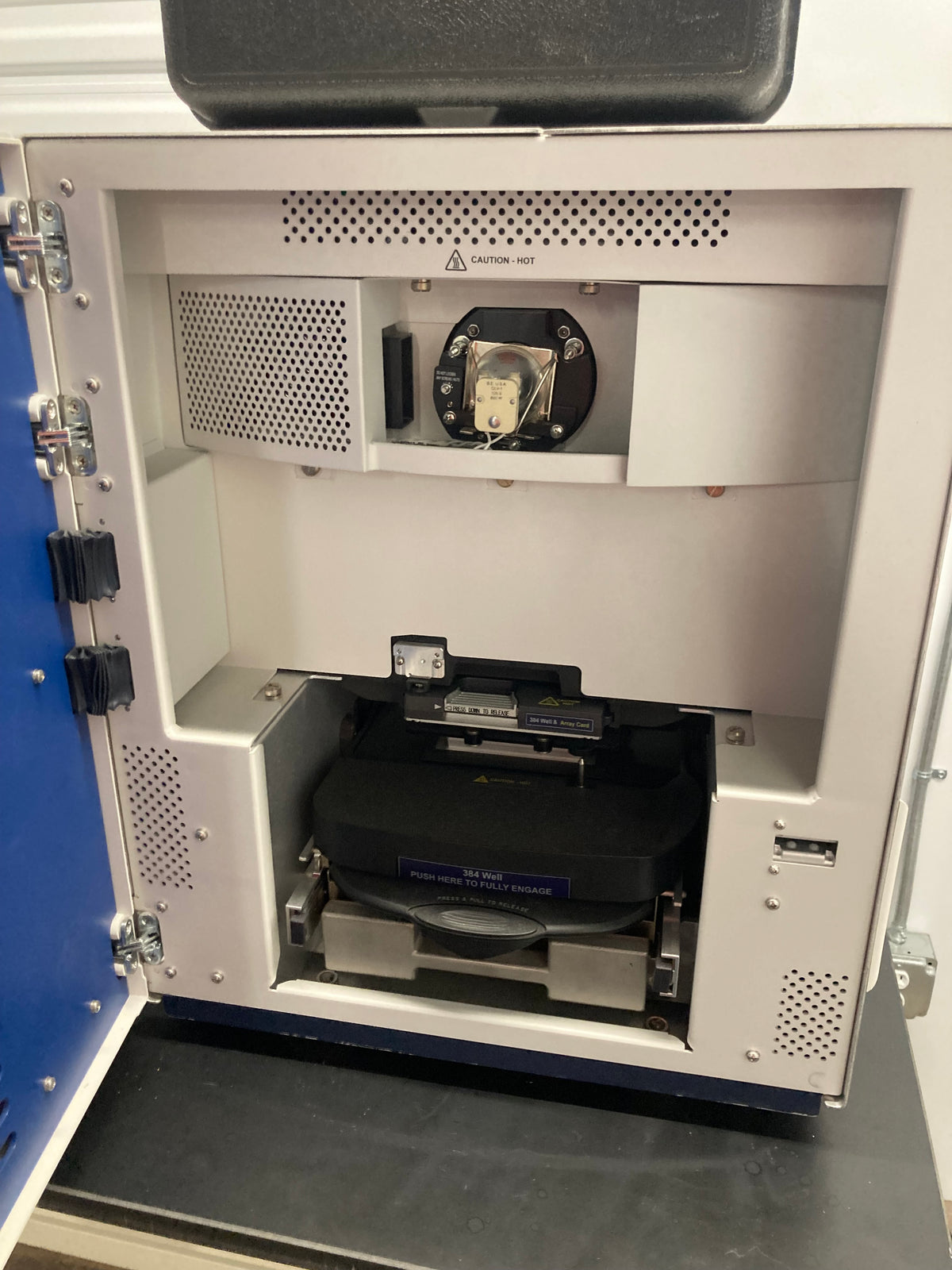

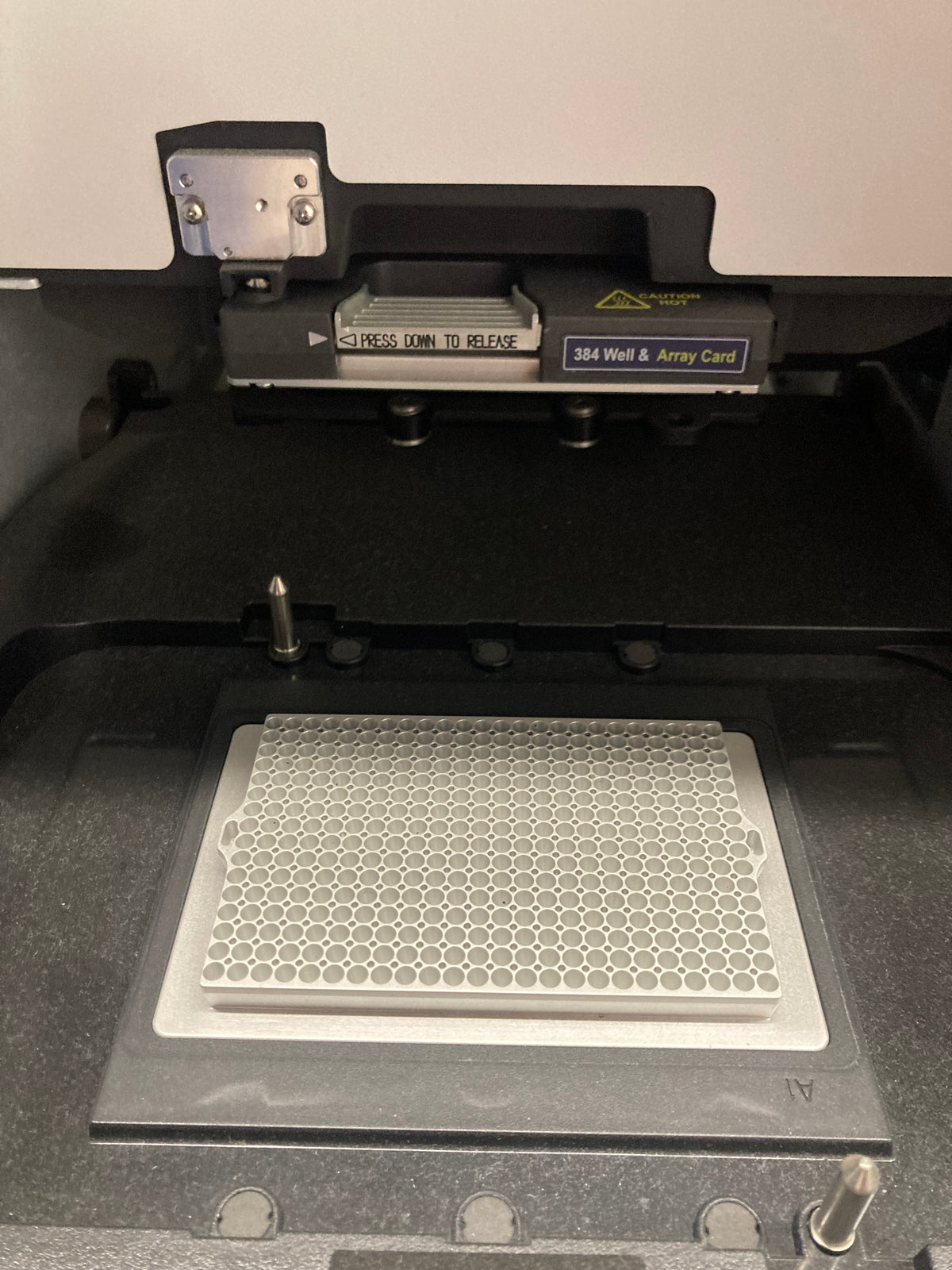

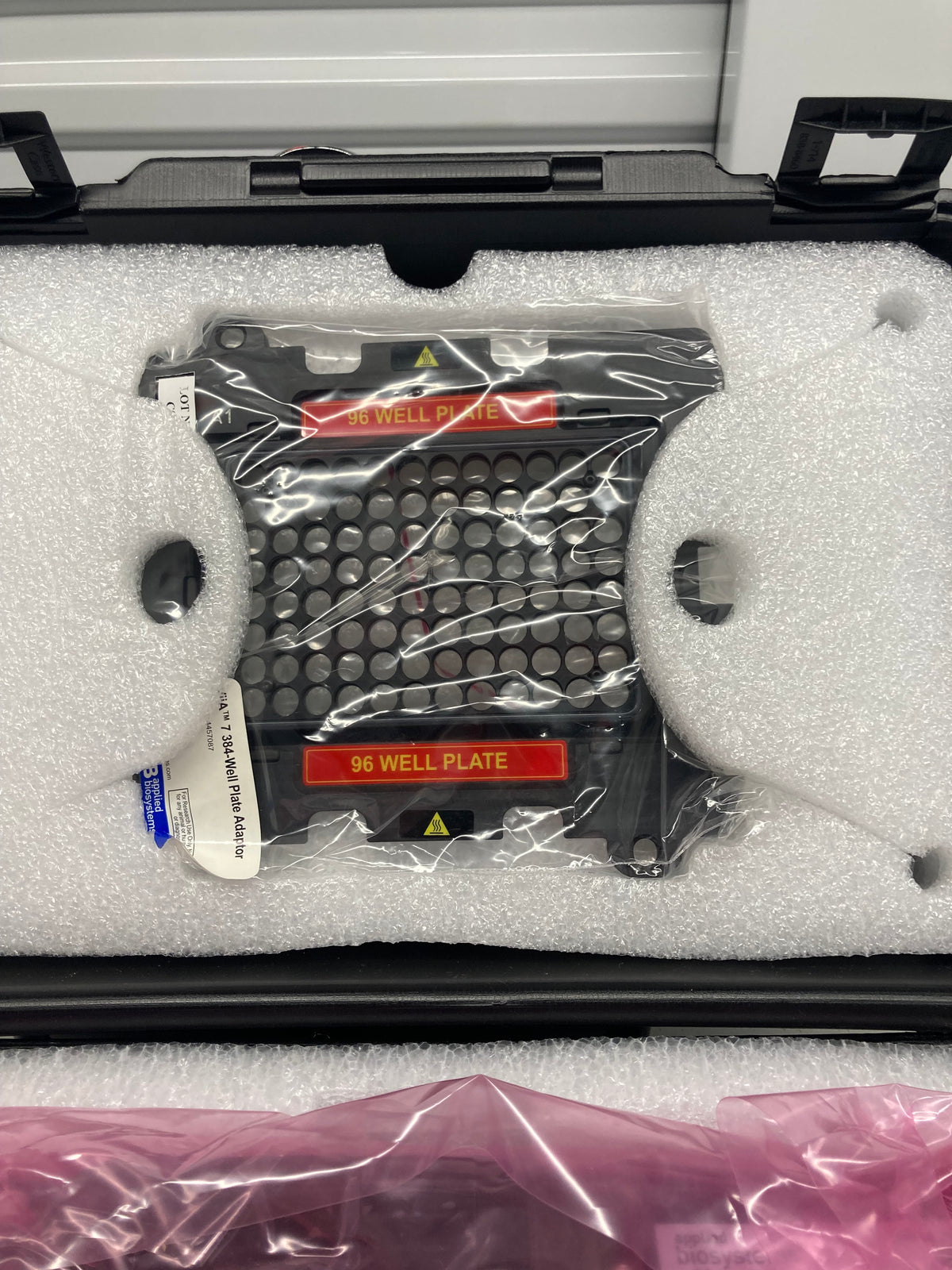

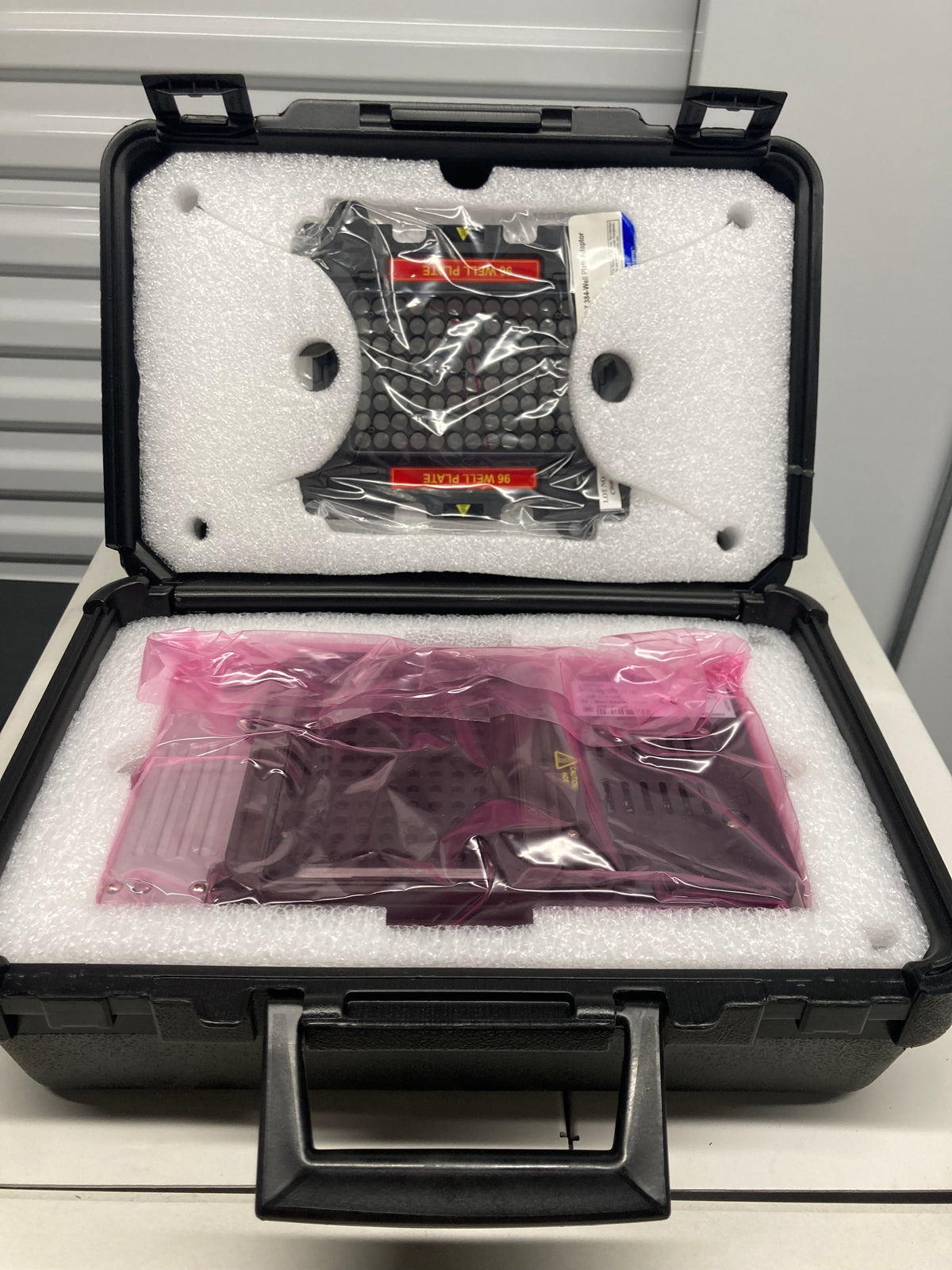

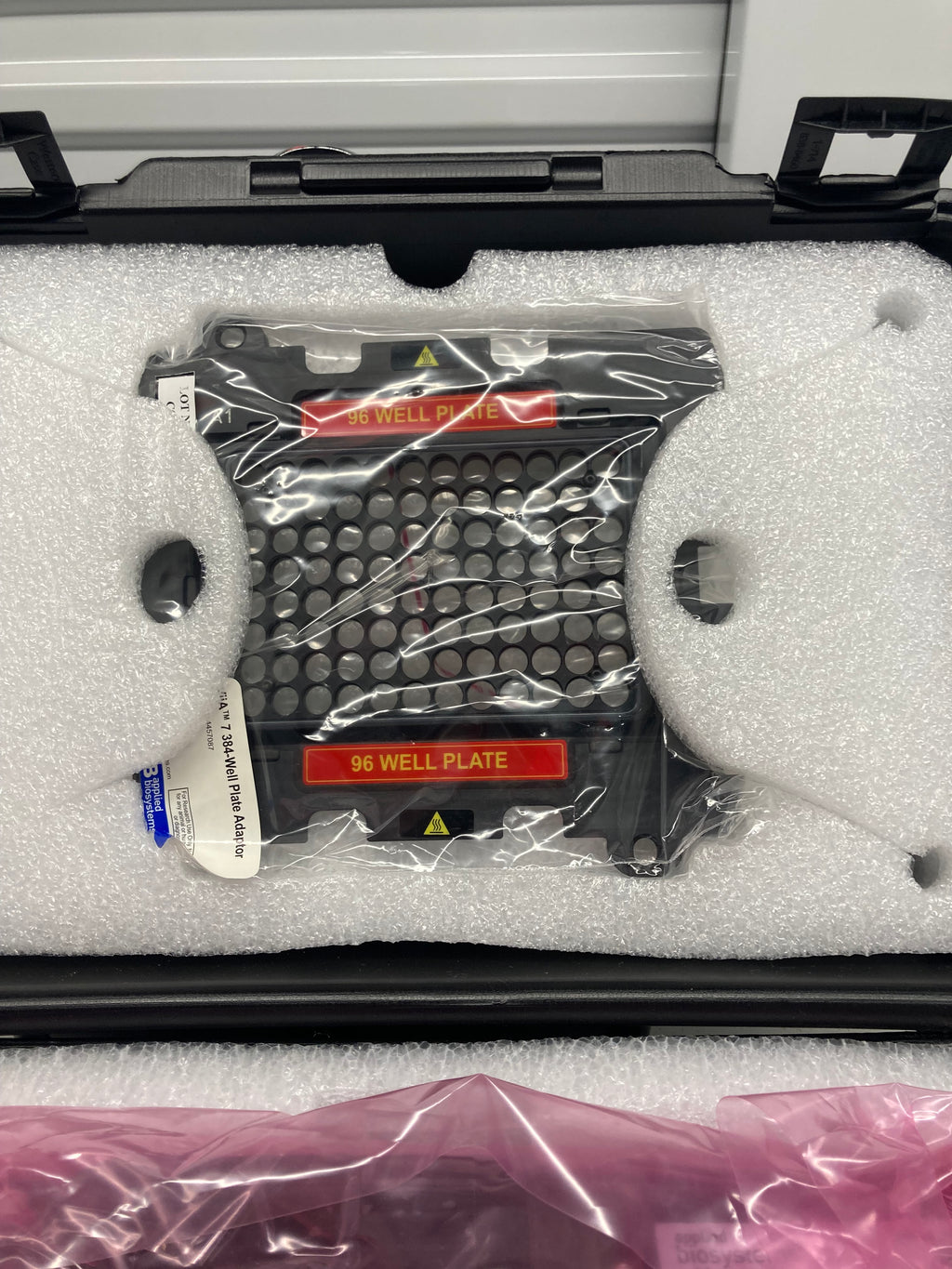

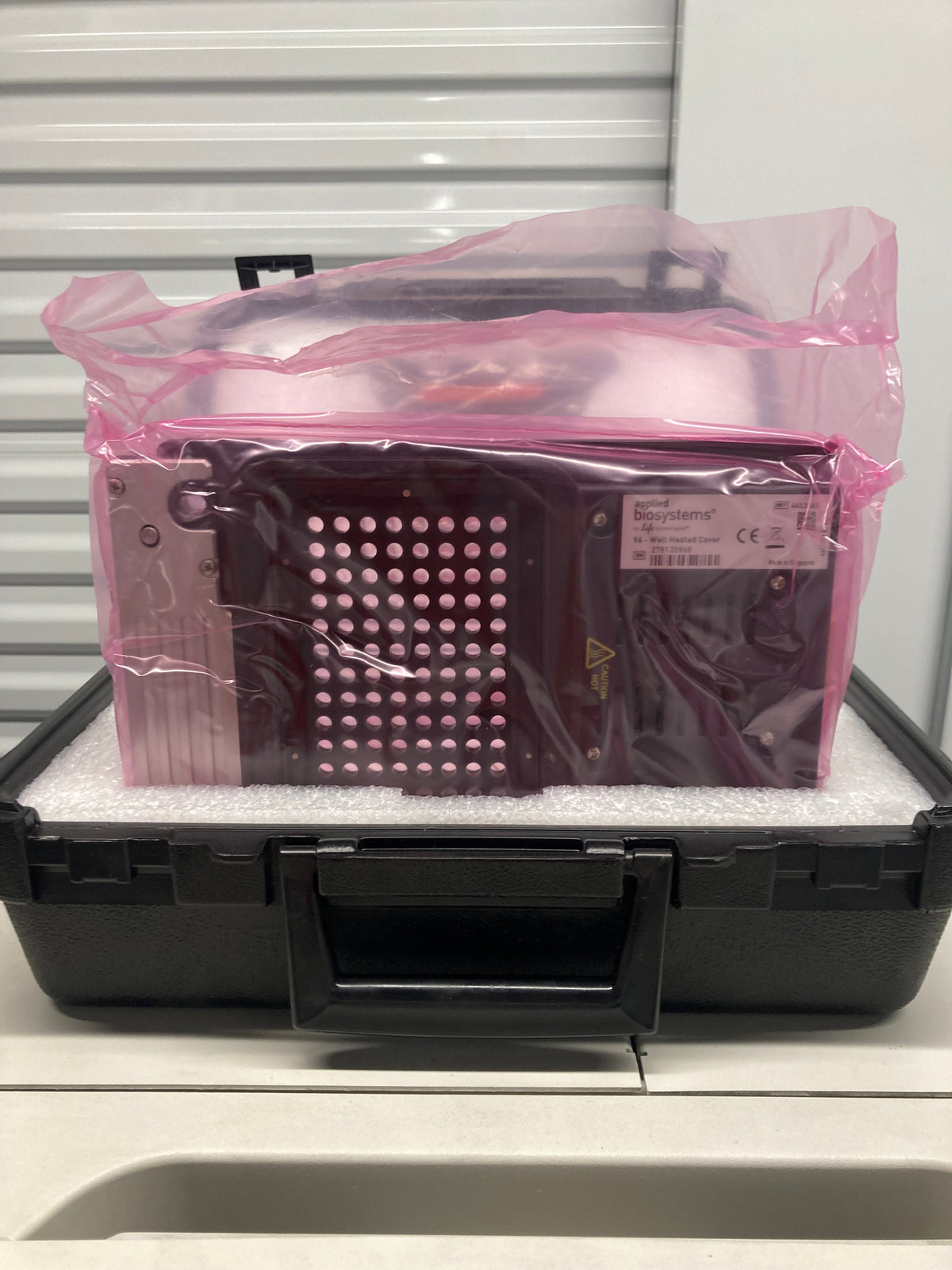

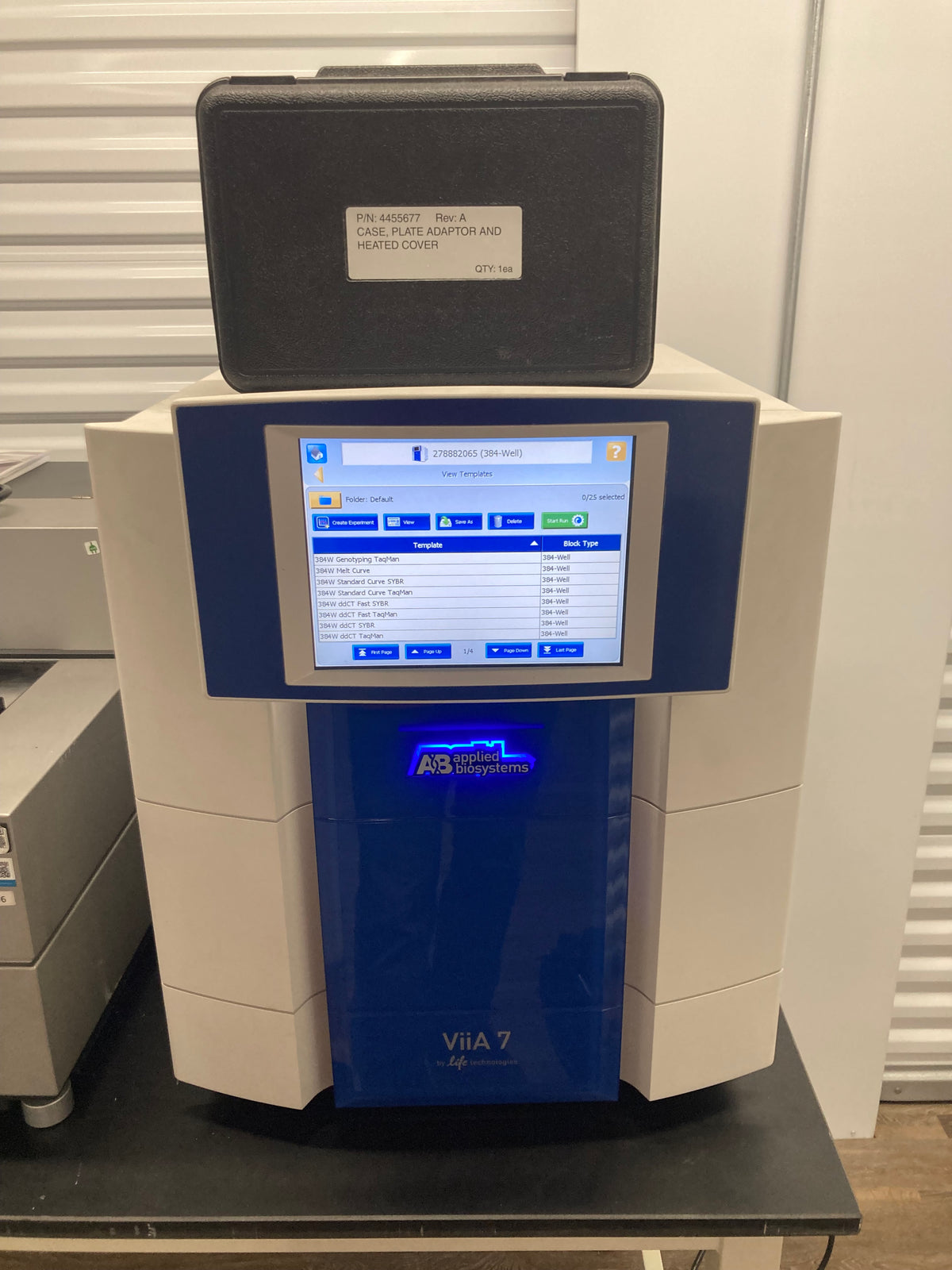

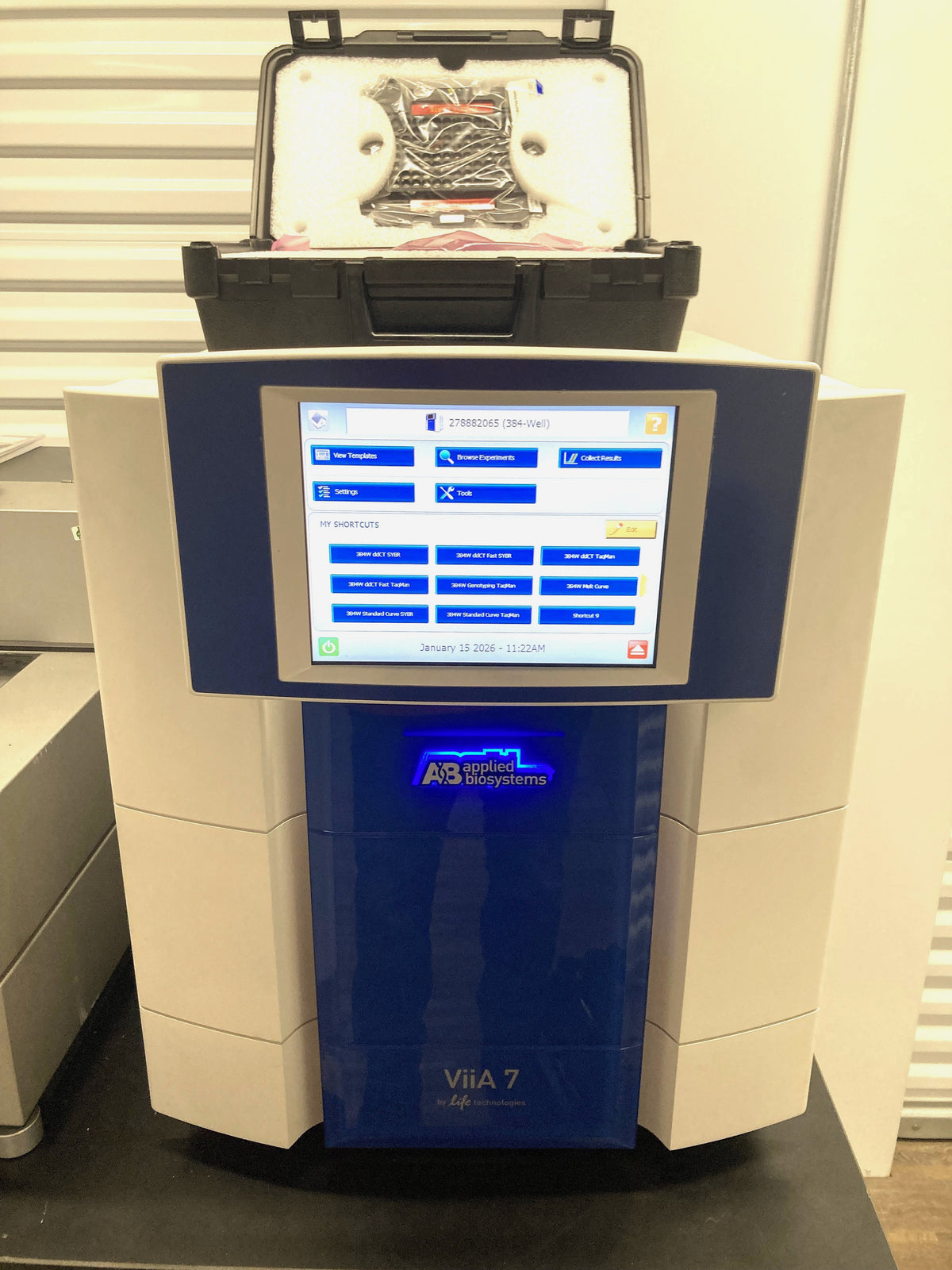

Applied Biosystems ViiA7 Real-Time PCR System (Contains the OptiFlex Optics System) REF 4453552 s/n 278882065 Date of Manufacture: 2013-06 Included: Part Number 4455677 Rev A Case Plated Adaptor and Heated Cover Case with: REF 4457087 384 -Well Plate Adaptor LOT NO C9000 REF 4453560 96 Well Heated Cover S/N 278120968 The Applied Biosystems ViiA 7 Real-Time PCR System (often associated with Part Number 4453552 ) is a high-performance qPCR platform designed for high-productivity research environments. Its centerpiece is the OptiFlex Optics System , which provides enhanced fluorescence detection and superior multiplexing capabilities. OptiFlex™ Optics System Features Multiplexing Capability : Features six decoupled excitation filters (450–670 nm) and six emission filters (500–720 nm), allowing for up to 21 different filter combinations. High Sensitivity : Capable of detecting as little as 1.5-fold changes in target quantities in singleplex reactions and possesses single-copy sensitivity. Broad Dynamic Range : Supports up to 9 logs of linear dynamic range for precise quantification. Decoupled Channels : The decoupled excitation and emission channels offer the greatest number of dye combinations for advanced multiplexing. General System Specifications Block Compatibility : Features a front-access interchangeable block system that can be changed in under one minute without tools. It supports 96-well (standard and fast), 384-well, and TaqMan Array Micro Fluidic Cards. Run Times : Approximately 35 minutes for 384-well or 96-well fast blocks when using fast master mixes. Thermal Performance : Offers temperature uniformity of ±0.5°C within 30 seconds of reaching the set point. User Interface : Includes a large 10.1-inch color LCD touchscreen for intuitive protocol setup and instrument control. Automation Ready : Fully integrated with the Twister II Robot for scalable high-throughput workflows. Compliance : Supports 21 CFR Part 11 enablement through optional security, auditing, and electronic signature software features. Applications The system is optimized for a wide range of TaqMan Assays, including: Gene expression and miRNA profiling. SNP genotyping and mutation detection. Copy number variation (CNV) analysis. High Resolution Melting (HRM) using built-in MeltDoctor protocols.
